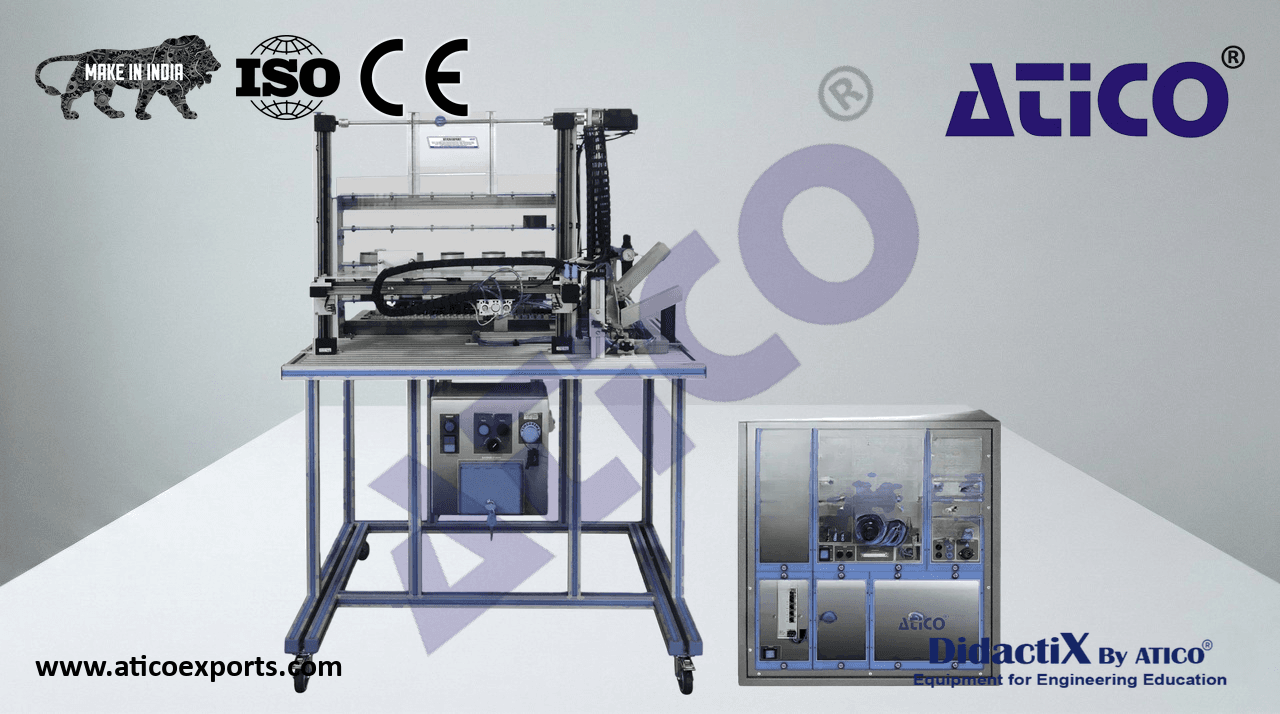

Vertical Storage Workstation

Model: ATENG 12599Category: Mechatronics & Automation Lab Engineering

Get Quote

Need Help?

+91 98967 93832

Product Overview

The Vertical Storage Workstation, allows to study the control of a vertical positioning, storage and sorting system.

Technical Specifications

ATENG 12599 — Vertical Storage Workstation

The “ATENG 12599” unit mainly consists of:
Table with four wheels with brakes mounted with aluminum profiles.
Programming software PLC:
Programming software developed according to the norm IEC 61131-3.
Compatible with Windows operating systems.
5 programming languages:
Ladder diagram (LD).
Structured text (ST).
Instructions list (IL).
Sequential function chart (SFC).
Function block diagram (FBD). ATENG 12599 detail
Programming, service and remote diagnostics.
Minimun program size.
Powerful debugging and monitoring tools.
Support for user-created functions and function blocks.
Save project files in plc.
Quick start tutorial example included.
Electrical Panel:
Differential magneto-thermal switch.
Power supply of 24 VDC.
Control Panel:
Mushroom head emergency stop push button switch.
Start and stop pushbuttons.
Switch for manual or automatic operation.
Light indicator.
Led stack light.
Fault Injection Key Box Module:
Red key box module with 20 switches inside.
2 DB37 connectors.
Each fault is generated via toggle switches.
Electrical Components:
2 linear electrical actuators with DC motor. Length: 500 mm.
Position controller.
Dryve D8, step/direction stepper motor control system.
Dryve D7, step/direction stepper motor control system.
Pneumatic Circuit:
Air treatment unit:
Filter-regulator with water trap.
Manometer with double scale indicator.
Shut-off valve.
8 flow control valves.
3 single acting pneumatic actuators.
3 pneumatic solenoid valves 5/2 monostable
Double acting pneumatic actuator.
Double acting pneumatic gripper.
Pneumatic solenoid valves 5/2 bistable.
Individually identified tubes and push in fittings
Sensors:
5 IR beam detector.
10 reed effect limit switches.
2 capacitive sensors.
6

Specifications

PLC Programming Software:
Programming software developed according to the standard IEC 61131 – 3.
Compatible with Windows operating systems.
Five programming languages:
Ladder Diagram (LD). Structured Text (ST). Instructions List (IL). Sequential
Function Chart (SFC). Function Block Diagram (FBD).
Remote programming, service, and diagnostics.
Minimum program size.
Powerful debugging and monitoring tools.
Supports user created functions and function blocks.
Saves project files inside the PLC.
Examples and Quick Start Tutorial included.
HMI Touch Screen Programming Software:
Tools for Screen Creation:
This Software is a tool designed for programming touch type screens. Thanks to this tool, suitable
screens and images can be created and designed. It allows to transfer the
program to the screen, load projects done from the terminal and print screens
created.
Plenty of functions. Screens Creation:
This Software has plenty of programming tools. Devices for visualizing texts,
diagrams or data; drawing a button, graph, pilots. This Software allows to
create functional screens adaptable to each application.
Drawing Functions: It can be done different programming elements through
suitable icons and bitmaps.
Easy Operativity (Click and slip):
A library of elements allows to program through the mouse, simply slipping an element
and locating it in its place. (Click and Slip).
Easy creation of user libraries:
User libraries can be registered and stored with suitable elements to be used in next
projects.
Printing. The different screens of the project can be printed:
It is possible to visualize a preliminary view. It is also possible to select the screens or configurations
to be printed.
Easy use. Bitmaps Editor:
There is a tool that allows to create, read and modify bitmaps in order to use them as screen
programming elements. Suitable buttons created from images can be easily made.
Control panel:
Mushroom head emergency stop push button switch.
Start and stop pushbuttons.
Switch for manual or automatic operation.
Light indicator.
Led stack light.
Terminal block to connect the individually identified inputs and outputs of the unit.
Required elements (Required: “ATENG 12395” or “SU-P”. Of the rest of the elements, additionally, required at least one) (Not included):
AE-PLC-PAN-UB. PANASONIC PLC Base Unit.
N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
ON / OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
N-ALI02
Single-phase supply hose connecting plug.
Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push-button.
7

Specifications

N-CPU-PAN. Panasonic CPU Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
Overcurrent protection with fuse.
PLC device, Panasonic FP7:
High processing speed: 11 ns per basic instruction (step).
Programming capacity: 120k basic instructions (step).
N-CPU-PAN
Data logging capacity: 256k words.
Independent memory for comments: 3 MB.
Compatible with SD / SDHC memory cards up to 32 GB.
Sixteen digital inputs with voltage levels 0 V and 24 V.
Sixteen relay type digital outputs with voltage levels 0 V and 24 V.
Expansion module for extra channels of digital inputs and outputs.
Web server function:
HTML web server included in the PLC.
Up to sixteen sessions at the same time.
Compatible with the most common search motors.
Connector for the digital input and output signals.
Connector for the Ethernet switch module.
N-SWT-4. 4 Ports Ethernet Switch Module.
Supply voltage (single-phase): 230 VAC.
Compact switch module:
Four Ethernet ports.
Protection fuse (at supply voltage height).
N-SWT-4
AE-PLC-SIE-UB. SIEMENS PLC Base Unit.
N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
ON / OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
Single-phase supply hose connecting plug.
N-ALI02
Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push-button.
N-CPU-SIE. Siemens CPU Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
Overcurrent protection with fuse.
PLC device, SIEMENS S7 – 1200:
High processing capacity: 64 bit calculation.
Program/data memory: 100 kB.
Load memory: 4 MB expandable with a Siemens memory card. N-CPU-SIE
CPU processing times for bit operations: 0.085μs/instruction.
Counting frequency: 100 kHz.
Twenty-two digital inputs with voltage levels 0 V and 24 V.
Eighteen relay type digital outputs with voltage levels 0 V and 24 V.
Two analog inputs of 10 bits with voltage range from 0 V to 10 V.
Expansion module for extra digital inputs and outputs.
Web server function:
HTML web server included in the PLC.
Compatible with most common search engines.
Connector for the digital input and output signals.
Connector to the Profinet/Ethernet switch module.
N-SWT-4. 4 Ports Ethernet Switch Module.
Supply voltage (single-phase): 230 VAC.
Compact switch module:
Four Ethernet ports.
Protection fuse (at supply voltage height).
N-SWT-4
8

Specifications

AE-PLC-AB-UB. ALLEN BRADLEY PLC Base Unit.
N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
ON / OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
Single-phase supply hose connecting plug.
N-ALI02
Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push-button.
N-CPU-AB. Allen Bradley CPU Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
Overcurrent protection with fuse.
PLC device Allen Bradley CompactLogix 5370 L1 controller:
High speed and high performance control.
Controller tasks: 32.
Program per task: 1000. N-CPU-AB
Available user memory: 384 KB.
SD card inbox memory: 1 GB.
Two Ethernet connectors with a communication rate of 10/100 Mbps.
USB connection for firmware updates.
Sixteen digital inputs with voltage levels 0 V and 24 V.
Sixteen relay type digital outputs with voltage levels 0 V and 24 V.
Connector for the digital input and output signals.
Connector for the Ethernet switch module.
N-SWT-4. 4 Ports Ethernet Switch Module.
Supply voltage (single-phase): 230 VAC.
Compact switch module:
Four Ethernet ports.
Protection fuse (at supply voltage height).
N-SWT-4
AE-PLC-MIT-UB. MITSUBISHI PLC Base Unit.
N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
ON / OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
Single-phase supply hose connecting plug.
Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA. N-ALI02
Emergency stop push-button.
N-CPU-MIT. Mitsubishi CPU Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
Overcurrent protection with fuse.
PLC device, Mitsubishi FX5U:
High processing speed: 34 ns per basic instruction (step) and 34 ns or more for math instructions.
Programming capacity: 64000 steps.
N-CPU-MIT
SD memory card compatible.
Sixteen digital inputs with voltage levels 0 V and 24 V.
Sixteen relay type digital outputs with voltage levels 0 V and 24 V.
Two analog inputs of 12 bits with voltage range from 0 V to 10 V.
One analog output of 12 bits with voltage range from 0 V to 10 V.
Connector for the digital input and output signals.
Connector to the Ethernet switch module.
N-SWT-4. 4 Ports Ethernet Switch Module.
Supply voltage (single-phase): 230 VAC.
Compact switch module:
Four Ethernet ports.
Protection fuse (at supply voltage height).
N-SWT-4
9

Specifications

AE-PLC-OMR-UB. OMRON PLC Base Unit.
N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
ON / OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
Single-phase supply hose connecting plug. N-ALI02
Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push-button.
N-CPU-OMR. Omron CPU Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
Overcurrent protection with fuse.
PLC device, OMRON NX1:
High processing speed: 3.3 ns per basic instruction (step) and 70 ns or more for math
instruction (for LONG REAL data).
N-CPU-OMR
Programming capacity: 1.5 MB.
SD / SDHC memory card compatible.
Eighteen digital inputs with voltage levels 0 V and 24 V.
Fourteen relay type digital outputs with voltage levels 0 V and 24 V.
Connector for the digital input and output signals.
Connector for the Ethernet switch module.
N-SWT-4. 4 Ports Ethernet Switch Module.
Supply voltage (single-phase): 230 VAC.
Compact switch module:
Four Ethernet ports.
Protection fuse (at supply voltage height).
N-SWT-4
ATENG 12395. Silent Air Compressor Unit.

Single-phase motor with 340 W.
Low noise level with 40 dB of maximum.

Boiler capac ity: 9 l.
Maximum pressure: 8 bar or 0.8 MPa.
Maximum air flow: 50 l/min.
Safety relief valve.
ATENG 12395
Start/stop switch.
Double scale manometer psi and bar with a range from 0 to 12 bar to measure the air pressure
before the air filter-regulator.
Air Filter-Regulator (FR):
Double scale manometer psi and bar with a range from 0 to 12 bar to measure the air pressure
after the air filter regulator.
Air filter with drain valve.
Air pressure regulator from 0 to 8 bar.
6 mm quick release connector for pneumatic flexible tubes.
Oil level indicator:
The unit includes the necessary oil for its operation.
The unit includes the types of connectors needed to work with the pneumatic unit
SU-P. Large Pneumatic Supply Unit.
10

Specifications

It is recommended to use the corresponding kits of each brand depending on the PLC selected (Panasonic,

Siemens, Mitsubishi, Omron and/or Allen Bradley) (Not included):
ATENG 12398. Automation System Simulation Software.
2D and 3D systems simulations.
Configurable simulation speed with the modes “normal simulation”, “slow
motion simulation”, “step-by-step simulation” and “pause”.
3D editor to import pieces made with formats compatible with most 3D
design programs (.STEP,.STL and.IGES).
Capacity to generate 2D and 3D animations associated to the results of
the simulation the user is working with.
Capacity for simulating the following systems:
Hydraulic and electrohydraulic: according to ISO 1219 – 1 and 1219
2 standards, with an extensive library of hydraulic and electrohydraulic
components with its standardized symbol.
Pneumatics and electro-pneumatics: with an extensive library of pneumatic, electro-
pneumatic and pneumatic logic components. Capacity to modify the most important
parameters of each hydraulic and pneumatic component, such as: efficiency curves,
external loads, leaks, viscosity, thermal characteristics, etc.
Digital electronics: with an extensive library of standard electronic components (logic ATENG 12398
gates, amplifiers, transistors, displays, multiplexers, etc.).
Electrical Single-Line Diagram: with a library that enables to create diagrams for all levels of voltage
usually employed in power generation, transport and distribution networks. Electrical engineering:
with a library that contains a great amount of components to create simple and complex electrical
circuits. The models of the components included are generic and real and belong to several
manufacturers. All the libraries include the components and its standardized symbol.
All libraries include the component along with its standardized symbol.
Capacity to program with the following languages:
GRAFCET: allows encapsulated stages for a better organization of the programmed control
structures.
Block Diagram: blocks included are preset but they can be completely configured by the user.
Ladder: includes three libraries to program automata from Siemens, Allen Bradley
and those fulfilling the IEC61131 – 3 standard, allowing the PLC to program directly.
It also allows for creating and simulating the PLC program in the automated system
simulated by the software.
Digital logic: with an extensive library of logic gates and components configured by the
user.
Function blocks with configurable structured text.
Direct programming in the PLCs from the manufacturers Siemens, Allen Bradley and
those fulfilling the IEC61131 – 3 standard of the programs simulated in the software.
Supervision, control and simulation of the manufacturing process of each station and the ATENG 12398
complete assembly by a SCADA system.
Communication with the PLCs of the unit is performed via OPC protocol.
Includes the 3D simulation of the automation system with the control panel and the visualization of
the alarms generated by the system.
PAN-PLC-K1. PANASONIC PLC Kit 1.
N-MT. Test Module.
Supply voltage (single-phase): 230 VAC.
Twenty digital signal generators:
Ten toggle switches.
Ten push-buttons.
Each digital signal generator is linked to a green LED.
N-MT
Output voltage levels of 0 VDC and 24 VDC.
Six analog signal generators:
Six potentiometers.
Output voltage range from -10 V to +10 V.
Protection fuses (at supply voltage height).
11

Specifications

PAN-PLC-K2. PANASONIC PLC Kit 2.
N-ESA-PAN. Panasonic Analog I/O Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
Expansion unit for analog inputs:
Input voltage range from -10 V to +10 V.
Four analog inputs.
Resolution: 12 bits.
N-ESA-PAN
Expansion unit for analog outputs:
Output voltage range from -10 V to +10 V.
Four analog outputs.
Resolution: 12 bits.
Connector for the analog input and output signals.
Connector for the Ethernet switch module.
PAN-PLC-K3. PANASONIC PLC Kit 3.
N-HMIB-PAN. Panasonic Small HMI Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
HMI device:
Touch screen.
TFT screen of 4096 colors.
Screen size: 71.4 mm (width) x 53.7 mm (height) (3.5 inches).
Screen resolution: 320 x 240 pixels. N-HMIB-PAN
Backlight: white LED.
Compatible with SD / SDHC memory cards.
Connector for the Ethernet switch module.
PAN-PLC-K4. PANASONIC PLC Kit 4.
N-HMIA-PAN. PANASONIC Large HMI Module.
Supply voltage (single-phase): 230 VAC.
HMI device:
Touch screen.
TFT screen of 64k colors with 16:9 format.
Screen size: 187 mm (width) x 147 mm (height) (7 inches).
Screen resolution: 800 x 480 pixels.
N-HMIA-PAN
LED backlight with high brightness of 200 cd/m2.
4 GB flash memory.
Connector for the Ethernet switch module.
PAN-PLC-K5. PANASONIC PLC Kit 5.
N-MOD. Modem Communication Module.
Supply voltage (single-phase): 230 VAC.
Router-switch Ethernet network.
Wifi system to allow a wireless conexion of devices (smartphone, tablet or PC).
Internet router with RJ-11 socket to connect the phone line.
Conjunction of practical exercises to perform a web server application.
N-MOD
SIE-PLC-K1. SIEMENS PLC Kit 1.
N-MT. Test Module.
Supply voltage (single-phase): 230 VAC.
Twenty digital signal generators:
Ten toggle switches.
Ten push-buttons.
Each digital signal generator is linked to a green LED.
Output voltage levels of 0 VDC and 24 VDC.
N-MT
Six analog signal generators:
Six potentiometers.
Output voltage range from -10 V to +10 V.
Protection fuses (at supply voltage height).
12

Specifications

SIE-PLC-K2. SIEMENS PLC Kit 2.
N-ESA-SIE. SIEMENS Analog I/O Module.
Supply voltage (single-phase): 230 VAC.
Expansion unit for analog inputs:
Input voltage range from -10 V to +10 V or 0/4 - 20 mA (configurable).
Four analog inputs.
Resolution: 13 bits.
N-ESA-SIE
Expansion unit for analog outputs:
Output voltage range from -10 V to +10 V or 0/4 - 20 mA (configurable).
Four analog outputs.
Resolution: 13 bits.
Connector for the analog input and output signals.
Connector to the Profinet/Ethernet switch module.
SIE-PLC-K3. SIEMENS PLC Kit 3.
N-HMIB-SIE. SIEMENS Small HMI Module.
Supply voltage (single-phase): 230 VAC.
HMI device:
Touch screen.
TFT screen of 65536 colors.
Screen size: 95 mm (width) x 53.9 mm (height) (4.3 inches).
Screen resolution: 272 x 480 pixels. N-HMIB-SIE
Backlight: white LED.
Connector for the Profinet/Ethernet switch module.
SIE-PLC-K4. SIEMENS PLC Kit 4.
N-HMIA-SIE. SIEMENS Large HMI Module.
Supply voltage (single-phase): 230 VAC.
HMI device:
Touch screen.
TFT screen of 65536 colors.
Screen size: 154.1 mm (width) x 85.9 mm (height) (7 inches).
N-HMIA-SIE
Screen resolution: 480 x 800 pixels.
Backlight: white LED.
Connector for the Profinet/Ethernet switch module.
SIE-PLC-K5. SIEMENS PLC Kit 5.
N-MOD. Modem Communication Module.
Supply voltage (single-phase): 230 VAC.
Router-switch Ethernet network.
Wifi system to allow a wireless conexion of devices (smartphone, tablet or PC).
Internet router with RJ-11 socket to connect the phone line.
Conjunction of practical exercises to perform a web server application.
N-MOD
MIT-PLC-K1. MITSUBISHI PLC Kit 1.
N-MT. Test Module.
Supply voltage (single-phase): 230 VAC.
Twenty digital signal generators:
Ten toggle switches.
Ten push-buttons.
Each digital signal generator is linked to a green LED.
N-MT
Output voltage levels of 0 VDC and 24 VDC.
Six analog signal generators:
Six potentiometers.
Output voltage range from -10 V to +10 V.
Protection fuses (at supply voltage height).
13

Specifications

MIT-PLC-K2. MITSUBISHI PLC Kit 2.
N-ESA-MIT. MITSUBISHI Analog I/O Module.
Supply voltage (single-phase): 230 VAC.
Expansion unit for analog inputs:
Input voltage range from 0 V to +10 V.
Four analog inputs.
Resolution: 12 bits.
Expansion unit for analog outputs:
N-ESA-MIT
Output voltage range from 0 V to +10 V.
Four analog outputs.
Resolution: 12 bits.
Connector for the analog input and output signals.
Connector to the Ethernet switch module.
MIT-PLC-K3. MITSUBISHI PLC Kit 3.
N-HMIB-MIT. MITSUBISHI Small HMI Module.
Supply voltage (single-phase): 230 VAC.
HMI device:
Touch screen.
TFT screen of 65536 colors.
Memory for storage: 3 MB.
Screen size: 89 mm (width) x 35.6 mm (height) (3.8 inches).
N-HMIB-MIT
Screen resolution: 320 x 128 pixels.
Five backlight LED colors: white, green, pink, orange and red.
SD memory card compatible.
Connector to the Ethernet switch module.
MIT-PLC-K4. MITSUBISHI PLC Kit 4.
N-HMIA-MIT. MITSUBISHI Large HMI Module.
Supply voltage (single-phase): 230 VAC.
HMI device:
Touch screen.
TFT screen of 65536 colors.
Memory for storage: 9 MB.
Screen size: 154 mm (width) x 85.9 mm (height) (7 inches).
N-HMIA-MIT
Screen resolution: 800 x 480 pixels.
Five backlight LED colors: white, green, pink, orange and red.
SD memory card compatible.
Connector to the Ethernet switch module.
MIT-PLC-K5. MITSUBISHI PLC Kit 5.
N-MOD. Modem Communication Module.
Supply voltage (single-phase): 230 VAC.
Router-switch Ethernet network.
Wifi system to allow a wireless connection of devices (smartphone, tablet or PC).
Internet router with RJ-11 socket to connect the phone line.
Conjunction of practical exercises to perform a web server application.
N-MOD
AB-PLC-K1. ALLEN BRADLEY PLC Kit 1.
N-MT. Test Module.
Supply voltage (single-phase): 230 VAC.
Twenty digital signal generators:
Ten toggle switches.
Ten push-buttons.
Each digital signal generator is linked to a green LED.
Output voltage levels of 0 VDC and 24 VDC.
N-MT
Six analog signal generators:
Six potentiometers.
Output voltage range from -10 V to +10 V.
Protection fuses (at supply voltage height).
14

Specifications

AB-PLC-K2. ALLEN BRADLEY PLC Kit 2.
N-ESA-AB. ALLEN BRADLEY Analog I/O Module.
Supply voltage (single-phase): 230 VAC.
Expansion unit for analog inputs:
Input voltage range from 0 V to +10 V.
Four analog inputs.
Resolution: 16 bits.
Input conversion sigma-delta. N-ESA-AB
Expansion unit for analog outputs:
Output voltage range from 0 V to +10 V.
Four analog outputs.
Resolution: 16 bits.
Accuracy: 0.1% full scale.
Connector for the analog input and output signals.
Connector for the Ethernet switch module.
AB-PLC-K3. ALLEN BRADLEY PLC Kit 3.
N-HMIB-AB. ALLEN BRADLEY Small HMI Module.
Supply voltage (single-phase): 230 VAC.
HMI device:
Touch screen.
TFT screen of 65536 colors.
800 MHz CPU processor with 256 MB memory.
Screen size: 95 mm (width) x 53.9 mm (height) (4 inches).
N-HMIB-AB
Screen resolution: 480 x 272 pixels.
Backlight: white LED.
SD memory card compatible.
Connector for the Ethernet switch module.
AB-PLC-K4. ALLEN BRADLEY PLC Kit 4.
N-HMIA-AB. ALLEN BRADLEY Large HMI Module.
Supply voltage (single-phase): 230 VAC.
HMI device:
Touch screen.
TFT screen of 65536 colors.
800 MHz CPU processor with 256 MB memory.
Screen size: 153.6 mm (width) x 86.6 mm (height) (7 inches). N-HMIA-AB
Screen resolution: 800 x 480 pixels.
Backlight: white LED.
SD memory card compatible.
Connector for the Ethernet switch module.
AB-PLC-K5. ALLEN BRADLEY PLC Kit 5.
N-MOD. Modem Communication Module.
Supply voltage (single-phase): 230 VAC.
Router-switch Ethernet network.
Wifi system to allow a wireless connection of devices (smartphone, tablet or PC).
Internet router with RJ-11 socket to connect the phone line.
Conjunction of practical exercises to perform a web server application.
N-MOD
OMR-PLC-K1. OMRON PLC Kit 1.
N-MT. Test Module.
Supply voltage (single-phase): 230 VAC.
Twenty digital signal generators:
Ten toggle switches.
Ten push-buttons.
Each digital signal generator is linked to a green LED.
Output voltage levels of 0 VDC and 24 VDC. N-MT
Six analog signal generators:
Six potentiometers.
Output voltage range from -10 V to +10 V.
Protection fuses (at supply voltage height).
15

Specifications

OMR-PLC-K2. OMRON PLC Kit 2.
N-ESA-OMR. OMRON Analog I/O Module.
Supply voltage (single-phase): 230 VAC.
Expansion unit for analog inputs:
Input voltage range from -10 V to +10 V.
Four analog inputs.
Resolution: 1/8000 full scale. N-ESA-OMR
Expansion unit for analog outputs:
Output voltage range from -10 V to +10 V.
Four analog outputs.
Resolution: 1/8000 full scale.
Connector for the analog input and output signals.
Connector for the Ethernet switch module.
OMR-PLC-K3. OMRON PLC Kit 3.
N-HMIB-OMR. OMRON Small HMI Module.
Supply voltage (single-phase): 230 VAC.
HMI device:
Touch screen.
TFT screen of 65536 colors.
Screen size: 129.8 mm (width) x 103.8 mm (height) (3.5 inches). N-HMIB-OMR
Screen resolution: 320 x 240 pixels.
Backlight: white LED.
Connector for the Ethernet switch module.
OMR-PLC-K4. OMRON PLC Kit 4.
N-HMIA-OMR. OMRON Large HMI Module.
Supply voltage (single-phase): 230 VAC.
HMI device:
Touch screen.
TFT color screen of 65536 colors.
Screen size: 202 mm (width) x 148 mm (height) (7 inches). N-HMIA-OMR
Screen resolution: 800 x 480 pixels.
Backlight: white LED.
Connector for the Ethernet switch module.
OMR-PLC-K5. OMRON PLC Kit 5.
N-MOD. Modem Communication Module.
Supply voltage (single-phase): 230 VAC.
Router-switch Ethernet network.
Wifi system to allow a wireless conexion of devices (smartphone, tablet or PC).
Internet router with RJ-11 socket to connect the phone line.
Conjunction of practical exercises to perform a web server application.
N-MOD
Cables and accessories, for normal operation.
