Vibration of Coil Spring Unit Deluxe

The Vibration of Coil Spring Unit, to study and understand a coil torsion spring, a mass-spring system and the fundamental properties of its characteristic periodic motion.

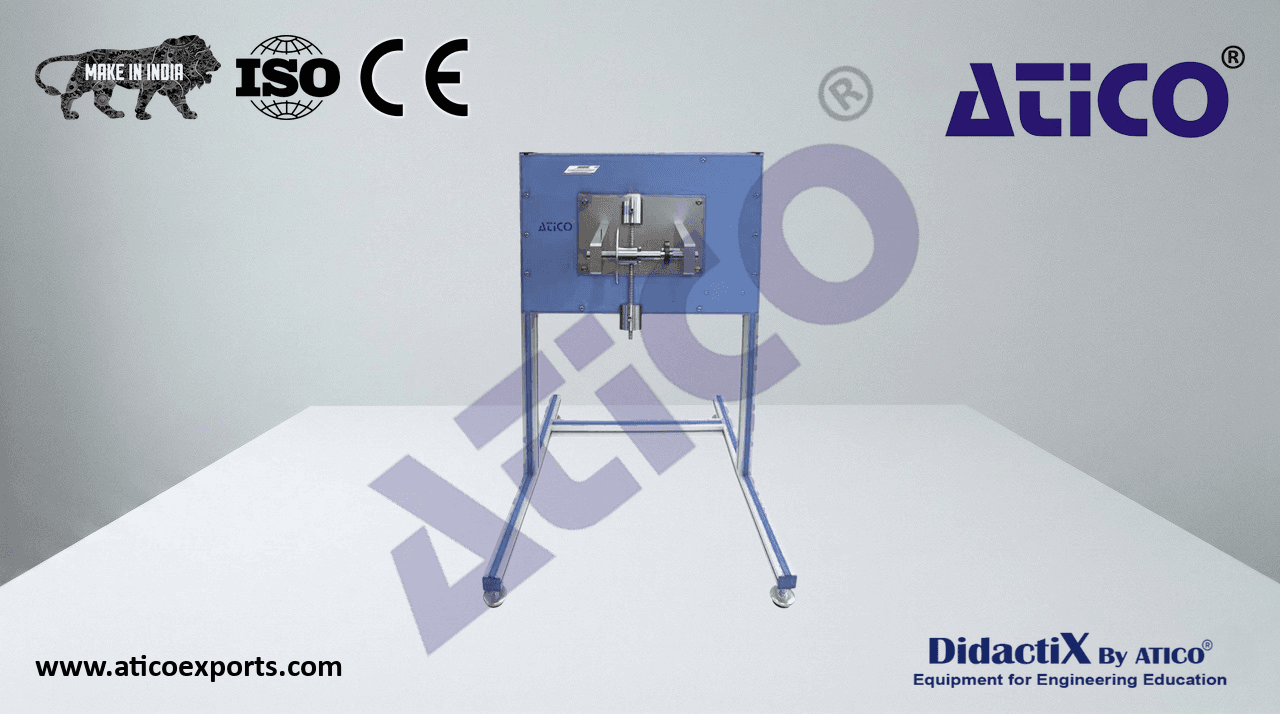

ATENG 12116 — Vibration of Coil Spring Unit

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12116” unit mainly consists of:
• Coil spring:
• Material: hardened steel.
• Section: 8 x 0.5 mm.
• External diameter: 18 mm.
• Inside diameter: 57 mm.
• Lever with movable weights for the coil spring deflection:
• Material: stainless steel. ATENG 12116 detail
• Adjustable distance from the center of gravity of the weight to the rotation axis: 42 – 150 mm.
  Two movable weights made of stainless steel of 0.5 Kg.
• Goniometer to read the deflection angle:
• Range: 0 – 360 °.
• Resolution: 1 °.
  Chronometer to measure the vibration period.
