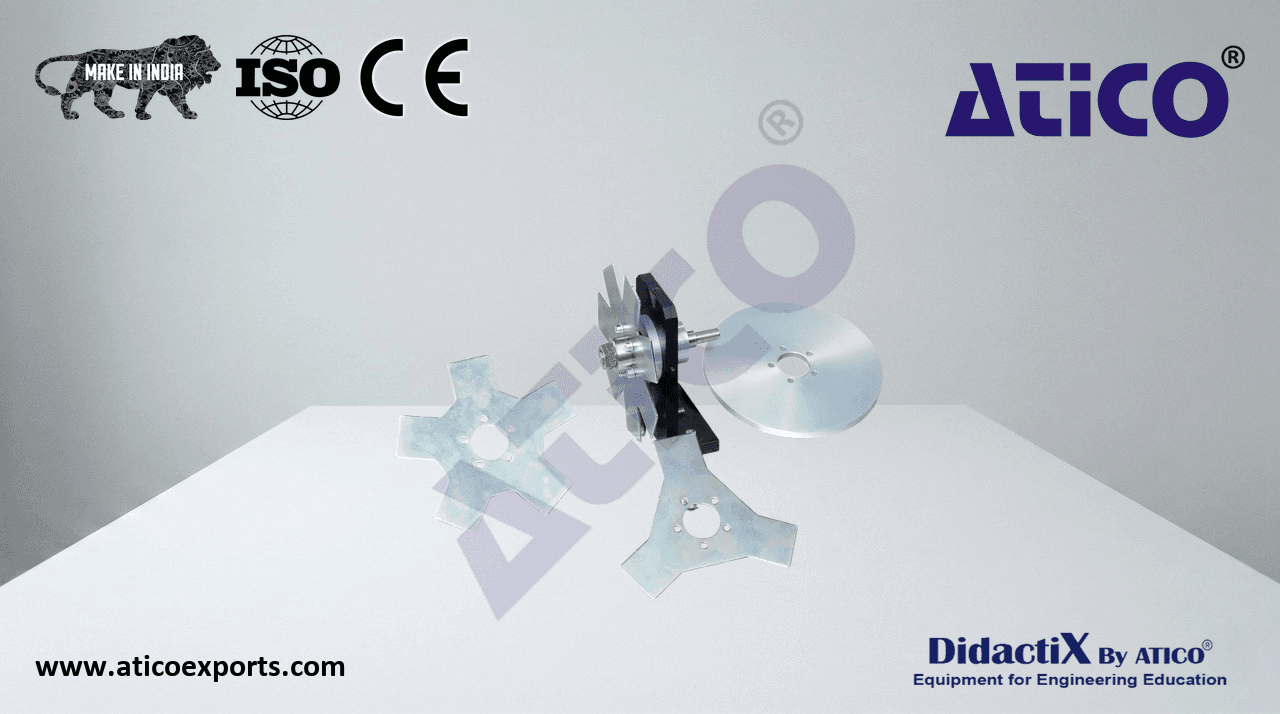

Vibrations in fans kit Deluxe

Vibration measurements on fans and blowers play a major role in field monitoring operations. In addition to the usual signals caused by bearings and imbalance, the vibrations induced by the fan blades can be measured. The vibrations are induced by inhomogeneous flow fields.

• investigation of the vibrations of fans
• experiment carried out in conjunction with the training system and measurement and evaluation tools
• model of an axial fan with blades
• magnetic induction of blade forces
• obliquely-mounted mass disk to investigate gyroscopic effects
• three impellers with different numbers of blades
• protective disk for impellers
• gap between magnet and blades adjustable
• can be used with belt drive
• stackable storage system to house the components
