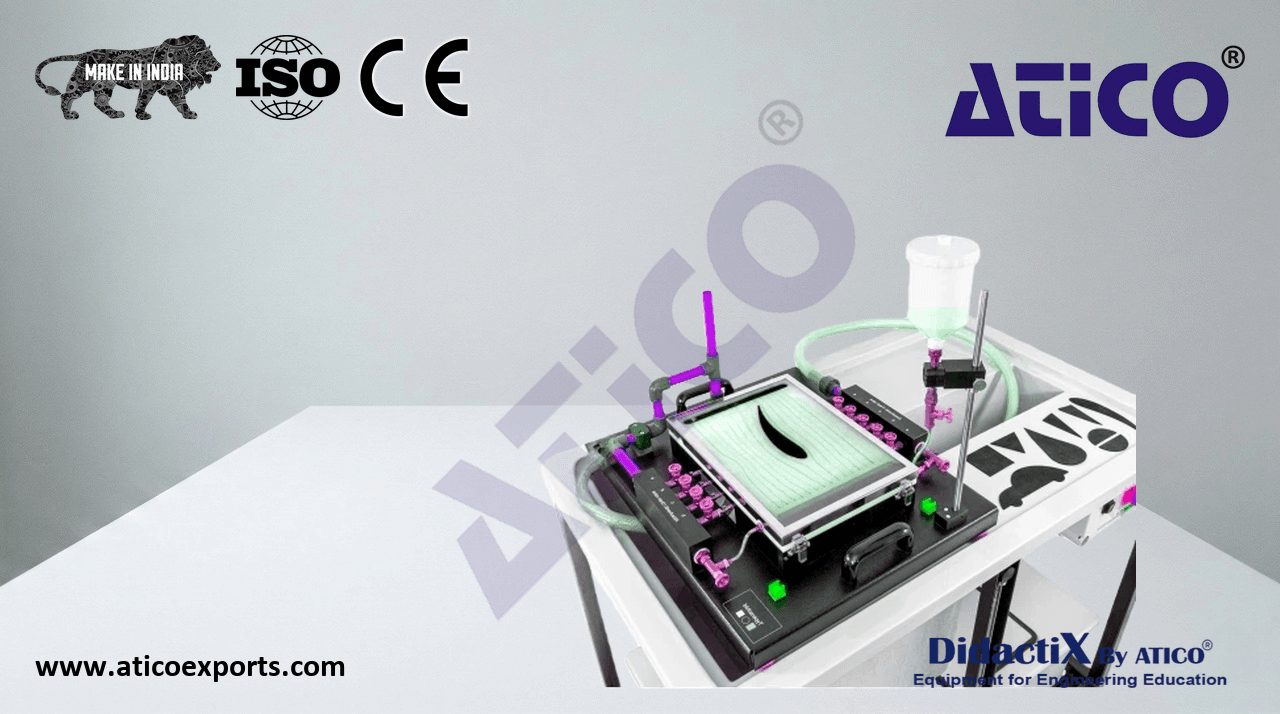

Visualisation of streamlines Deluxe

The laminar, two-dimensional flow in this unit is a good approximation of the flow of ideal fluids: the potential flow.

• visualisation of streamlines
• water as flowing medium and ink as contrast medium
• upper glass plate, hinged for interchanging models
• bottom plate with water connections for generating sources/sinks
• sources/sinks can be combined as required
• different drag bodies and changes in cross-section included
• rubber plate for creating your own models included
• flow velocity, water supply and water drain in sources/sinks as well as dosage of the contrast medium can be adjusted by using valves
• water supply using base module or via laboratory supply
• flow visualisation using prepared CFD simulations
• digital multimedia teaching material available online: e-learning course, prepared CFD simulations, worksheets, videos
