VORTEX TUBE REFRIGERATOR

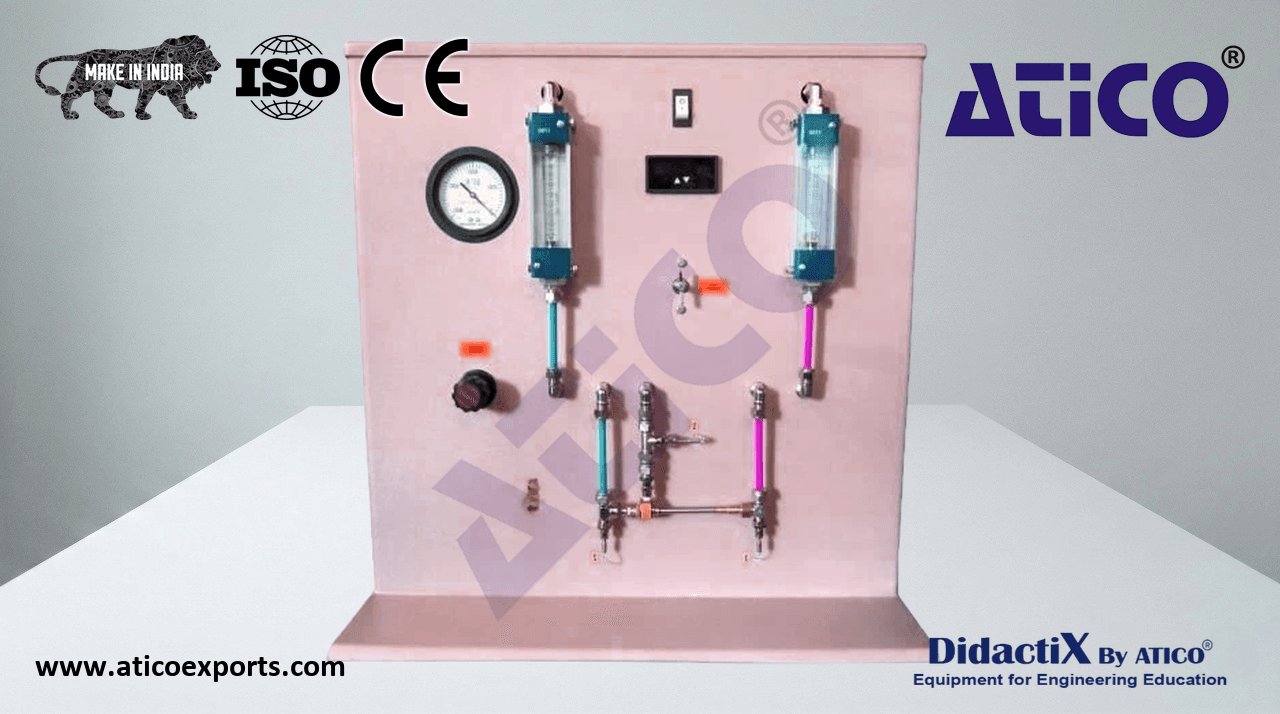

The Vortex Tube is an interesting device in which a compressed gas (usually air) is divided into two streams at a lower pressure. One stream is approximately 50K colder and the other approximately 50K hotter than the compressed gas supplied – making it an unusual method for producing cooling air. In this unit, a modified industrial Vortex Tube has been incorporated into a test unit with all the controls and instruments necessary to provide students with an appreciation of its characteristics and performance. Learn about VORTEX TUBE REFRIGERATOR exporters for optimal educational outcomes.. The Vortex Tube consists of two joined, concentric cylindrical chambers of different diameters, open at their ends. Nozzles arranged tangentially around the circumference of the larger chamber discharge compressed gas at near sonic velocity into the chamber, creating a forced vortex rotating at approximately 500,000 rev/min. Learn about VORTEX TUBE REFRIGERATOR specifications for optimal educational outcomes.. The cold core of this vortex is extracted from the smaller end, while the hot periphery is extracted from the larger end. The ratio of cold to hot gas flow rates can be varied by a valve controlling the hot gas discharge. Learn about VORTEX TUBE REFRIGERATOR manufacturers for optimal educational outcomes.. To avoid frosting and flow meter errors, the hot and cold air streams are passed in opposite directions through a concentric tube heat exchanger, bringing both streams close to ambient temperature before passing through variable area flow meters to the atmosphere. A balance valve fitted at the hot end of the vortex tube controls the proportion of total air flow from each end. Learn about VORTEX TUBE REFRIGERATOR refrigeration India for optimal educational outcomes.. Thermocouple sensors with a selector switch allow measurement of all important temperatures. The refrigerating effect is determined from the directly measured mass flow rate and temperature of the cold air stream. Learn about VORTEX TUBE REFRIGERATOR equipment for optimal educational outcomes..

Construction:

• Panel: High quality ABS
• Vortex tube: Rated at 300 litre free air per minute at 700 kN m⁻² gauge
• Pressure regulator and filter: For clean, pressure-stable air supply
• Heat exchanger: Concentric tube, contra-flow type
• Valves × 2: For isolation and balance

Instrumentation:

• Flow meters × 2: Variable area type, calibrated for air up to 4 g s⁻¹
• Digital temperature indicator: 0.1°C resolution
• Pressure gauge: Ø100mm; range 0–800 kN m⁻²
