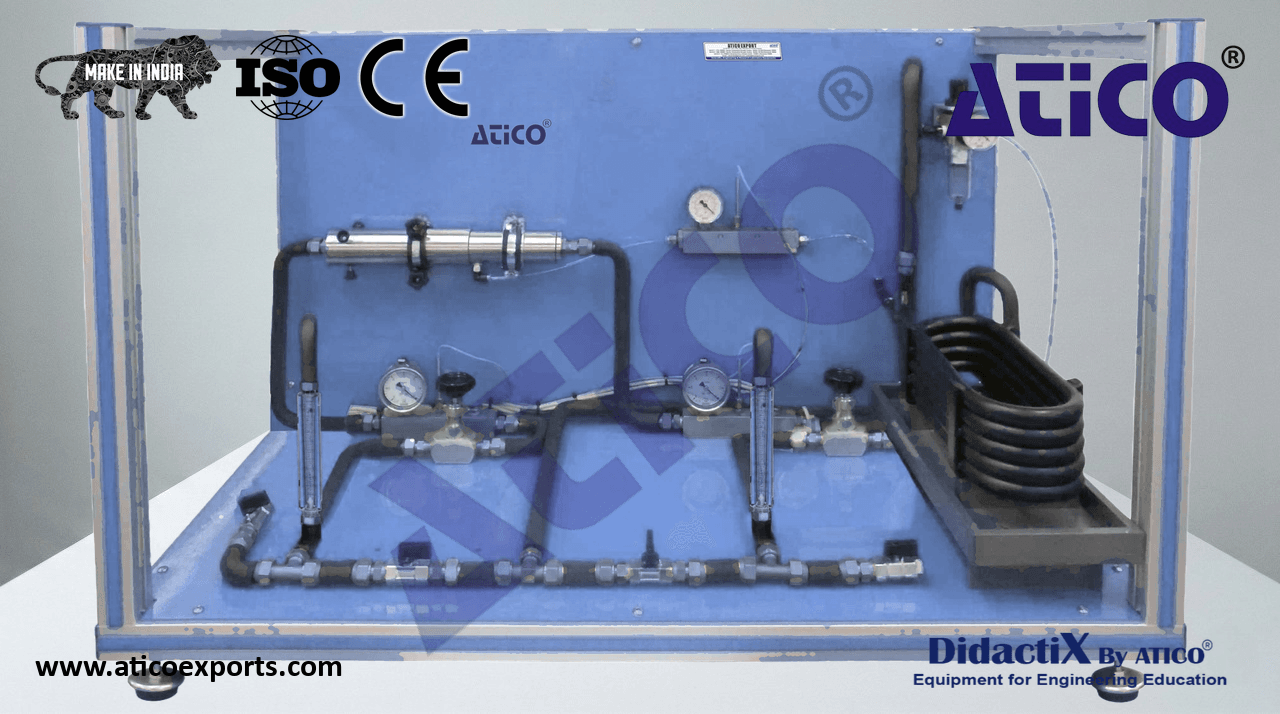

ATENG 12781 — Vortex Tube Refrigerator Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- The unit includes:
- Pressure regulating filter:
- Maximum pressure: 8 bar.
- Purge capacity: 8 cm³.
- Pressure regulation valve to set the working pressure:
- Maximum pressure: 8 bars.
- Heat exchanger to set the working temperature:
- Refrigeration capacity: 1580 W.
- Vortex tube:
- Cooling output: 190 W.
- Temperature range: -60 °C to 110 °C.
- Air consumption: 280 l/min.
- Maximum working pressure: 8 bars.
- Three vortex generators of 0.3, 0.46 and 0.6 mm diameter.
Two regulation valves to set the cold fraction.
Four ball valves to select the circuit to be recycled.
- Instrumentation:
- Inlet line to the vortex tube:
“J” type thermocouple.
- Manometer, range: 0 to 10 bar.
- Outlet line of the hot current:
“J” type thermocouple.
- Manometer, range: 0 to 6 bar.
- Flowmeter, range: 400 l/min.
- Outlet line of the cold current:
“J” type thermocouple.
- Manometer, range: 0 to 6 bar.
- Flowmeter, range: 400 l/min.
Cables and Accessories, for normal operation.
