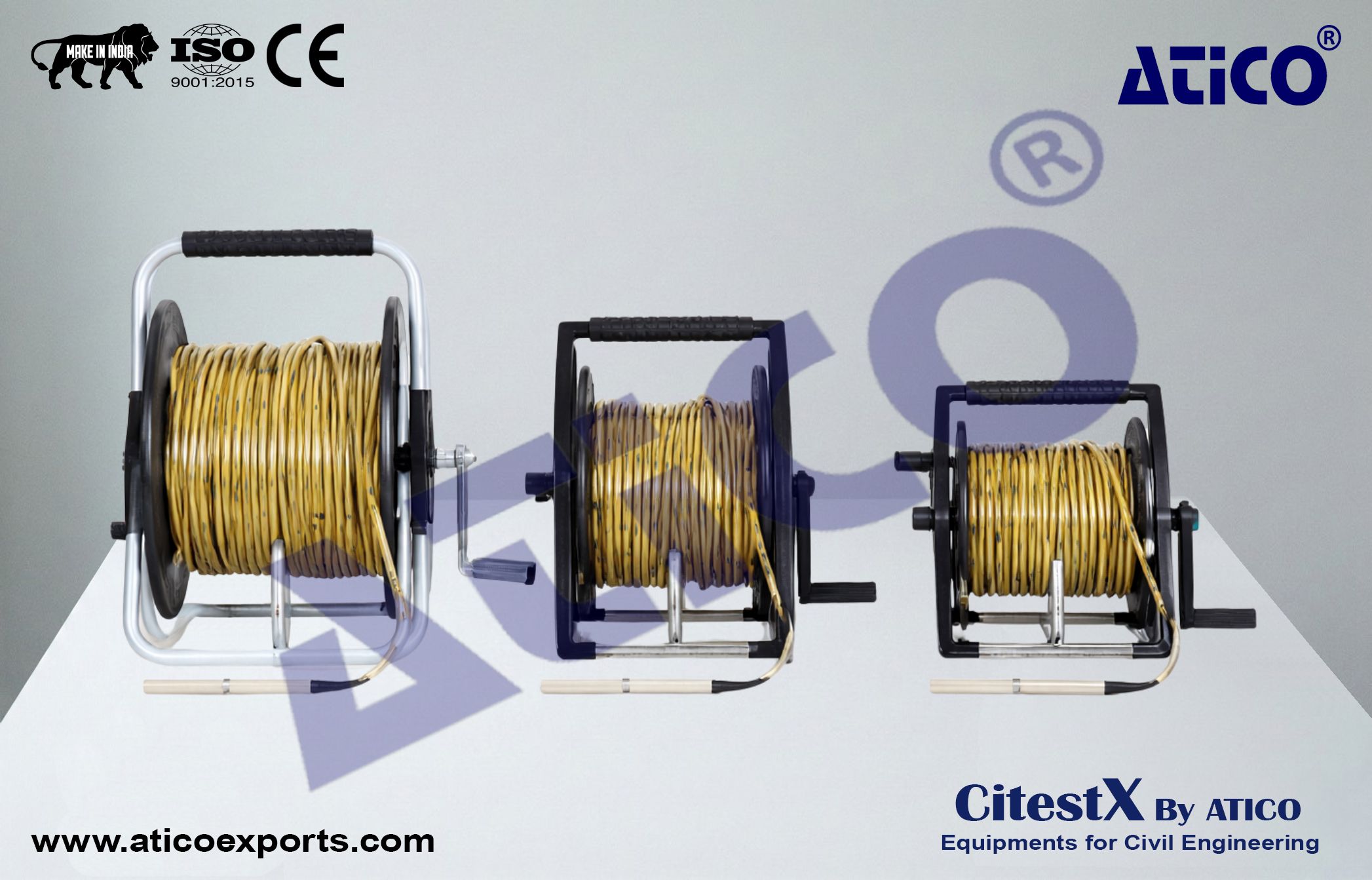

Water Level Indicator

Electrical contact meters are portable, quick, and easy to use. Used in drilling wells, underground water pipes, reservoirs, lakes and pump experiences to measure underground water level and total depth.

Operation :

• The electronic tip at the probe detects contact with water surface and gives an audible and illuminated warning.
  The level is read in meters (m) and centimeters (cm) over the graduated measuring cable.

Cable :

• Polyamide-coated steel tape with transparent polyethylene covering over two tinned copper conductors on both sides of the steel strip.

Cable markings :

• Millimeters (mm), centimeters (cm) and decimeters (dm) on yellow steel strip, colored black and meters (m) in red.

Probe :

• Chrome-nickel plated brass

Diameter :

• 14 mm
• Cable construction: Transparent, hard plastic and heat resistant
• Power supply: 3 V DC, 2 ° AA size batteries (1.5 V each)

Sensitivity :

• Less than 1 cm (for 100 m cable)

Cable Length :

• AECE2246/A - 50 m
• AECE2246/B - 100m
• AECE2246/C - 150m
• AECE2246/D - 200m

Dimensions (mm) :

• AECE2246/A - 250 ° 250 ° 250
• AECE2246/B - 250 ° 250 ° 250
• AECE2246/C - 250 ° 250 ° 250
• AECE2246/D - 250 ° 250 ° 250

Weight (kg) :

• AECE2246/A - 3.4
• AECE2246/B - 5.6
• AECE2246/C - 6.8
• AECE2246/D - 8.8
