The Weighing System, with Computer Data Acquisition, is an easy to use unit that allows to perform different experiments in which weight must be accurately weighed.
Technical Specifications
ATENG 11324 — Weighing System, with Computer Data Acquisition
(for main items)
With this unit there are several options and possibilities:
Main items: 1, 2, 3 and 4.
Let us describe first the main items (1 to 4):
1SPC. Unit:

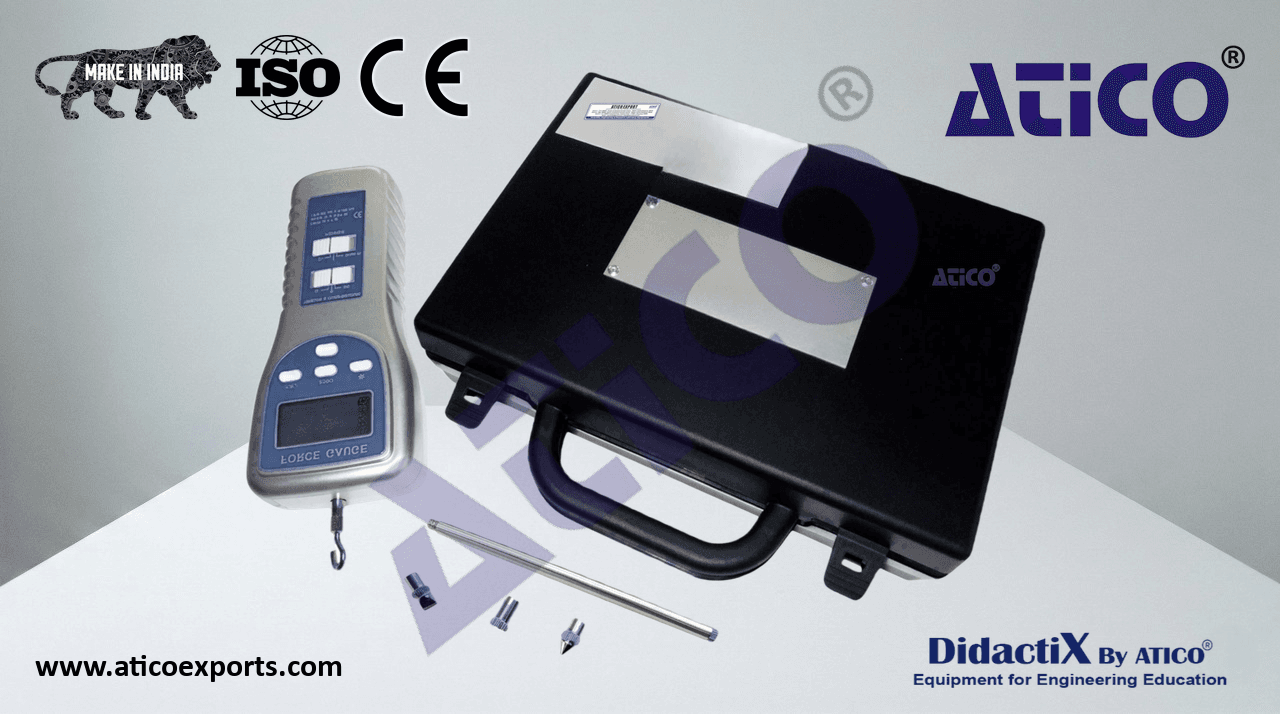

Digital force meter:
Measurement range: 5 Kg. / 176.40 oz /49.03 N.
Resolution: 1 gr. / 0.05 oz / 0.01N.
Minimum indicator: 3 gr. / 0.10 oz / 0.03N.
Accuracy: ±0.4 % of the reading + 1 digit.
Operating temperature: 0 – 50 °C.
Operating humidity: less than 80 % of relative
humidity.
Traction and pressure measurement possibilities.
LCD screen of 10 mm.
The maximum value can be stored during the
measurement.
Accessories:
Flat head adaptor.
Hook adaptor.
Conical adaptor.
Chisel adaptor.
Elongating rod (120 mm.).
USB cable to connect to the computer for the data
Unit: ATENG 11324
acquisition.
6 Batteries of 1.5 V.
Storage case, with packing foam, for the meter, accessories and software.
2 Data Acquisition + Data Management Software:
Compatible with actual Windows operating systems.
Graphic and intuitive simulation of the process in screen.
Compatible with the industry standards.
Flexible and open software, developed with actual windows graphic systems.
Management, processing, comparison and storage of data.
Graphic representation in real time.
Comparative analysis of the obtained data.
3 Cables and Accessories, for normal operation.
4Manuals:
This unit is supplied with 8 manuals: Required services, Assembly and Installation, Control software,
Starting-up, Safety, Maintenance & Practices manuals.
References 1 to 4 are the main items: ATENG 11324 + Data Acquisition + Data Management Software + Cables and Accessories + Manuals are
included in the minimum supply for enabling normal and full operation.
