WHEEL AND AXLE

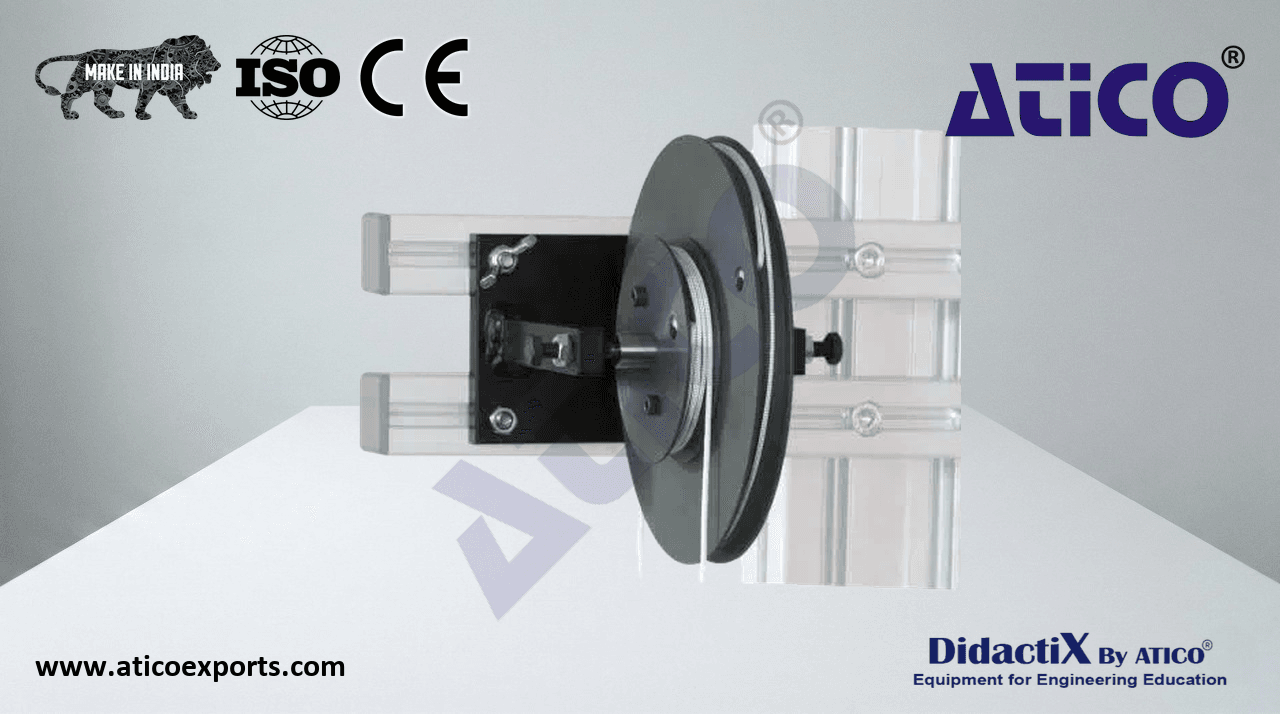

A dual diameter wheel mounted on an axle supported on simple pivots in a sturdy wall mounting bracket. Each wheel has a cord wrapped around its periphery, which can be wound in either direction. Load hangers and a calibrated weights set allow loading of each wheel to investigate mechanical advantage and velocity ratio. Learn about WHEEL AND AXLE theory-machines India for optimal educational outcomes..

• Large wheel diameter: Ø150 mm
• Small wheel diameter: Ø75 mm
• Maximum recommended load: 200 N
• Weights set: 1 × 0.1 N, 2 × 0.2 N, 1 × 0.5 N, 1 × 1 N, 2 × 2 N, 2 × 5 N, 2 × 10 N, 2 × 20 N
