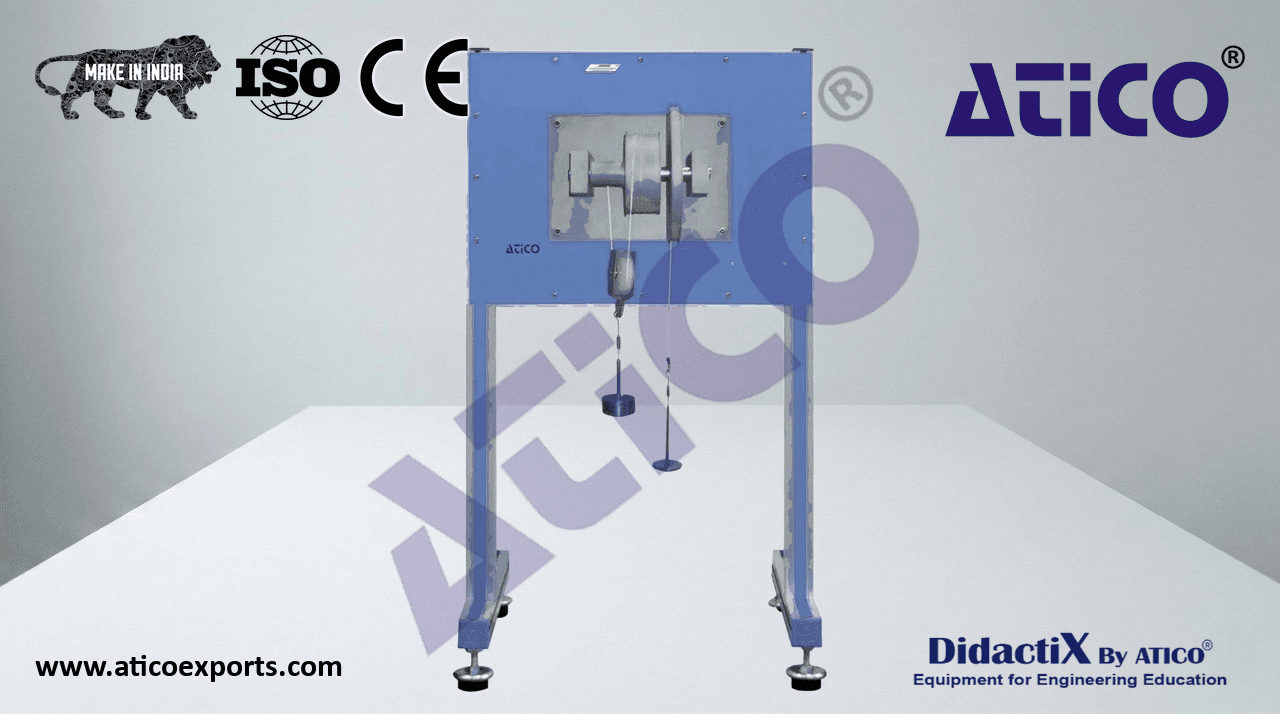

Wheel and Differential Axle Unit Deluxe

The Wheel and Differential Axle Unit, to investigate the mechanics of a wheel and differential axle mechanism and demonstrating the force reduction on a differential pulley block.

ATENG 12109 — Wheel and Differential Axle Unit

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

• The “ATENG 12109” unit mainly consists of:
• Wheel, composed of a pulley with a diameter of 194 mm.
• Differential axle, composed of two pulleys:
• Diameter no. 1 (larger axle): 111 mm.
• Diameter no. 2 (smaller axle): 33 mm.
• Movable pulley:
• Weight: 120 g.
  Shaft supported on pivots with ball bearings.
