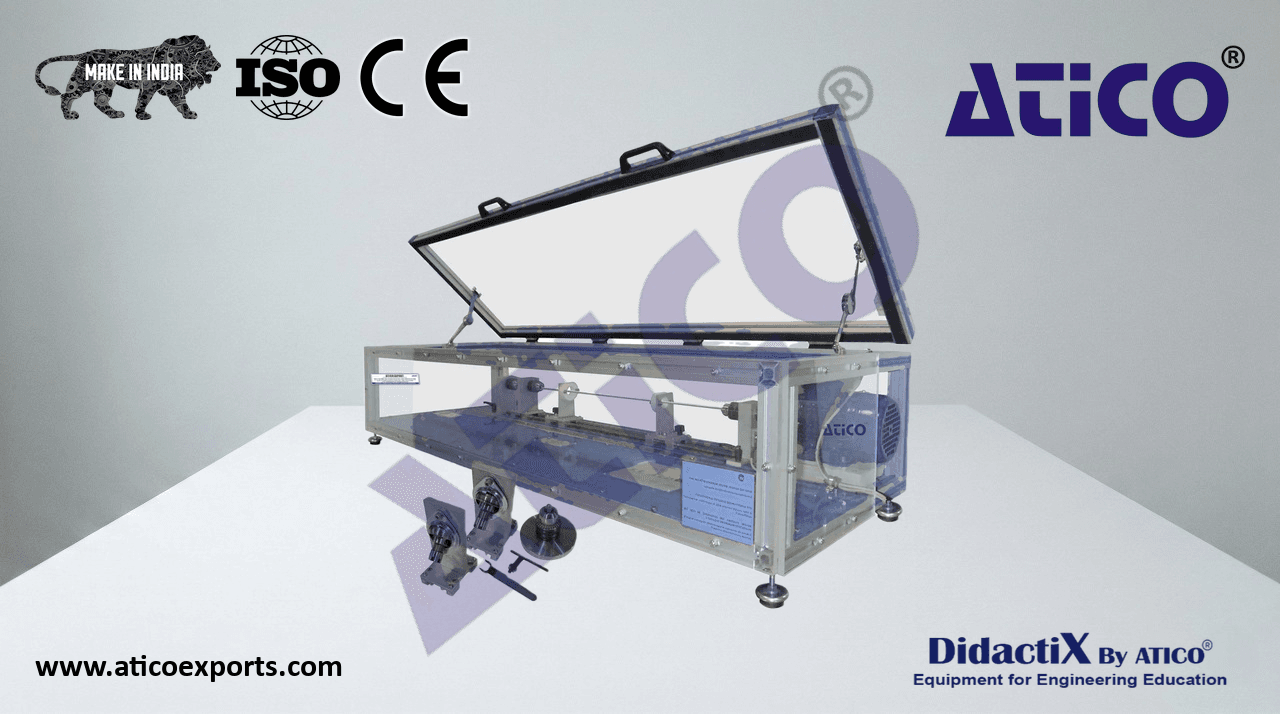

ATENG 12127 — Whirling of Shafts Unit
Bench top unit with adjustable legs.
Anodized aluminum frame and panels made of painted steel.
Main metal elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- The “ATENG 12127” unit mainly consists of:
Three-phase motor controlled by a variable – frequency drive to make the test shaft
- rotate to different frequencies:
- Power: 0.5 kW.
- Speed: 0 – 6000 rpm.
- Three rotor shafts of different diameters:
Made of stainless steel.
ATENG 12127 detail
- Diameters: 3 mm, 6 mm, 7 mm.
- Length: 950 mm.
- Rotor disc with clamping mandrel to load the shaft in a concentrated point:
Made of stainless steel.
- Diameter: 100 mm.
- Weight: 1.2 kg.
Two supports with clamping mandrels. They allow the determination of the fixed supports for the shaft.
Two supports with self-aligning bearings. They allow the determination of the articulated supports for the shaft.
Different open-end wrenches, a wrench for the spindles and a wrench for the milling cutter cone are supplied with the unit to change
and fix the different testing shafts and supports.
- The unit includes all the safety measures required for a safe operation:
Safety supports with nylon bearings that prevent the shafts from oscillating with uncontrolled amplitude.
Support with clamping mandrel to prevent inadequate oscillations and damages in the unit.
Transparent protection cover to allow the visualization of the unit.
Limit actuator to prevent the operation of the unit without the protection cover.
- Electronic console:
Metal box.
Motor connector.
Motor speed controller.
Digital display for the motor speed.
Main switch.
Cables and accessories, for normal operation.
