Whitworth Quick Return Mechanism

The Whitworth Quick Return Mechanism, is a mechanism able to transform circular movement into reciprocating movement.

ATENG 12062 — Whitworth Quick Return Mechanism

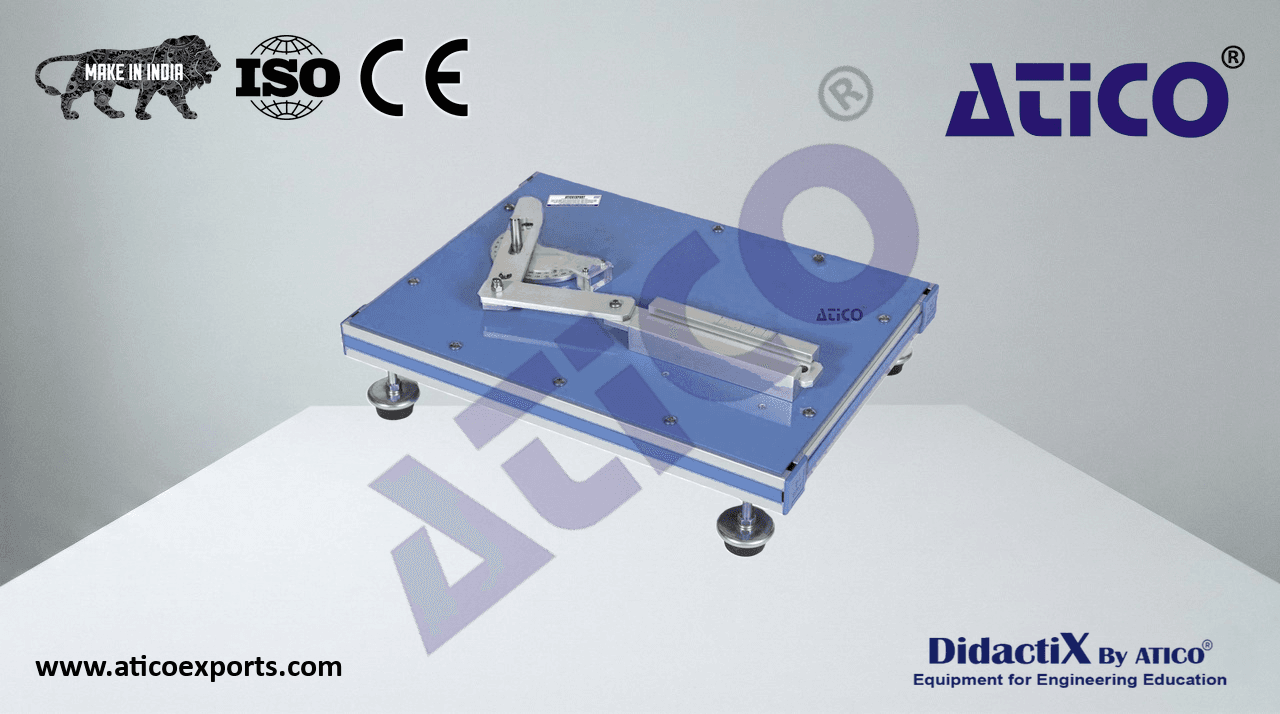

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

• The “ATENG 12062” unit mainly consist of:
  Rotary element (crank) with an indicator and graduated disc to read the angle.
  Rigid bar (connecting rod) with a millimeter scale to measure the linear motion.
  Two rigid bar for transfer motion.
  All axles are equipped with ball bearings.
