Winch Mechanism

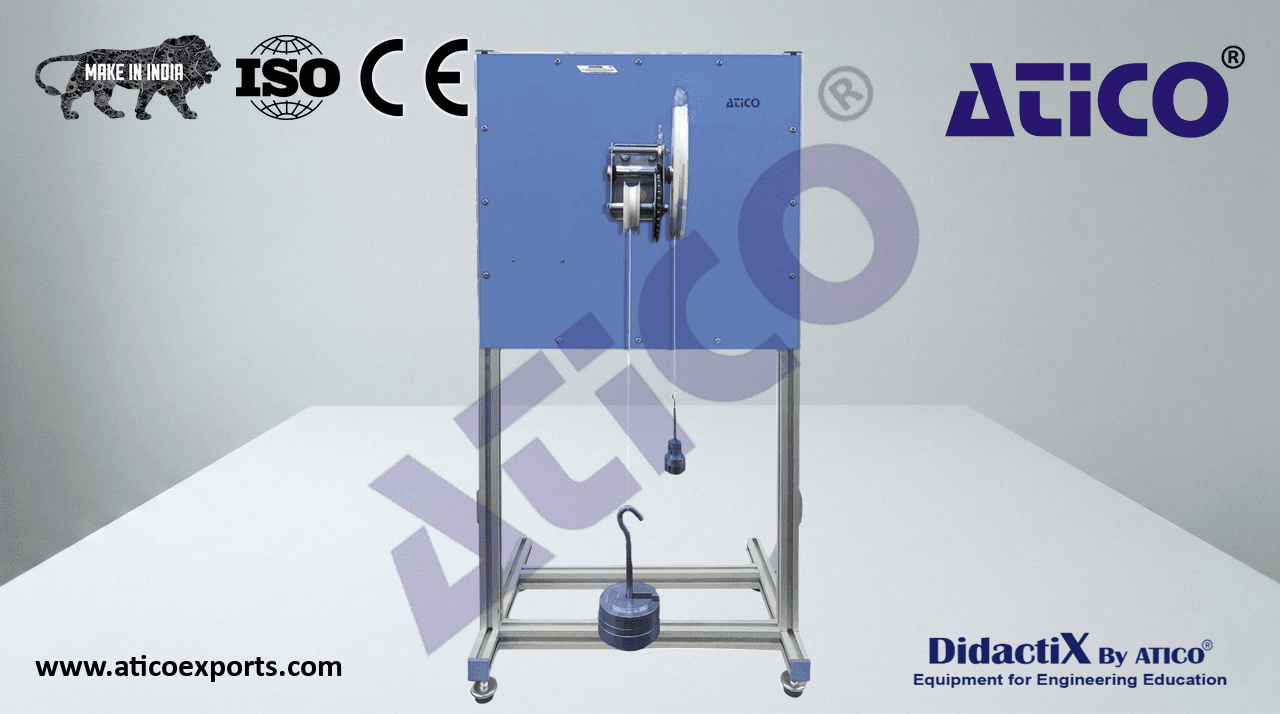

The Winch Mechanism, to demonstrate the principle of a winch and its behaviour and to study different terms (transmission ratio, unwinding speed, angular speed, efficiency) concerned to the winch.

ATENG 12074 — Winch Mechanism

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

• The “ATENG 12074” unit mainly consists of:
• Two gear wheels:
• Small: 10 teeth.
• Large: 31 teeth.
• Pulleys:
• Driving pulley, diameter ext: 200 mm.
• Driven pulley, diameter ext: 80 mm.
  Safety device.
