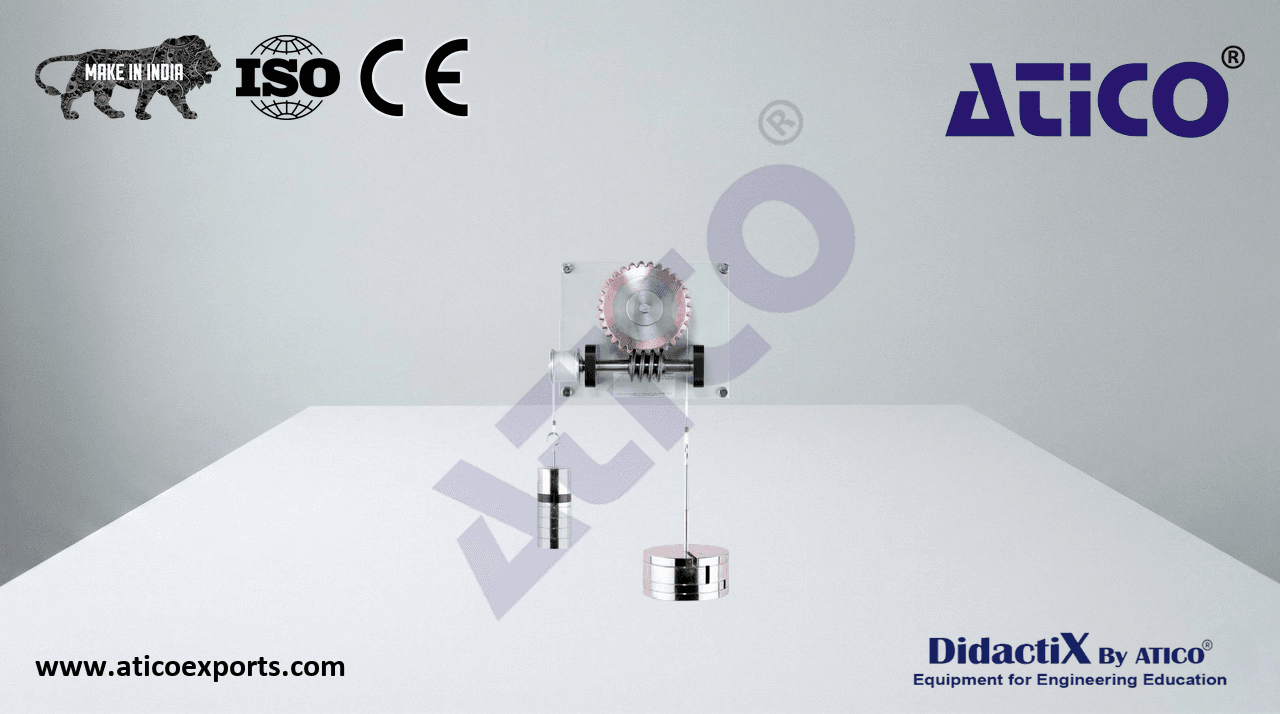

Worm gear unit

Worm gears are a category of helical rolling gears that are classified as transmission or conversion elements within machine elements. This type of gear comprises the usual driving worm and the driven worm wheel. Worm gears are quiet and have a damping effect. Learn about Worm gear unit Engineering Mechanics Trainers India for optimal educational outcomes.. They are smaller and easier to operate than spur gears or bevel gears of the same performance and gear ratios. This experimental unit is used to study their torque ratios and efficiency. Learn about Worm gear unit for educational labs for optimal educational outcomes.. The transmission ratio of the gear can be determined. The basic concepts of toothing such as tooth number and gear number, module, pitch and centre distance are illustrated. Learn about Worm gear unit equipment for optimal educational outcomes..

• function and design of worm gears
• bronze worm wheel
• steel worm
• 2 aluminium cable drums
• worm, worm wheel and pulleys mounted on ball bearings
• anodised aluminium base plate
