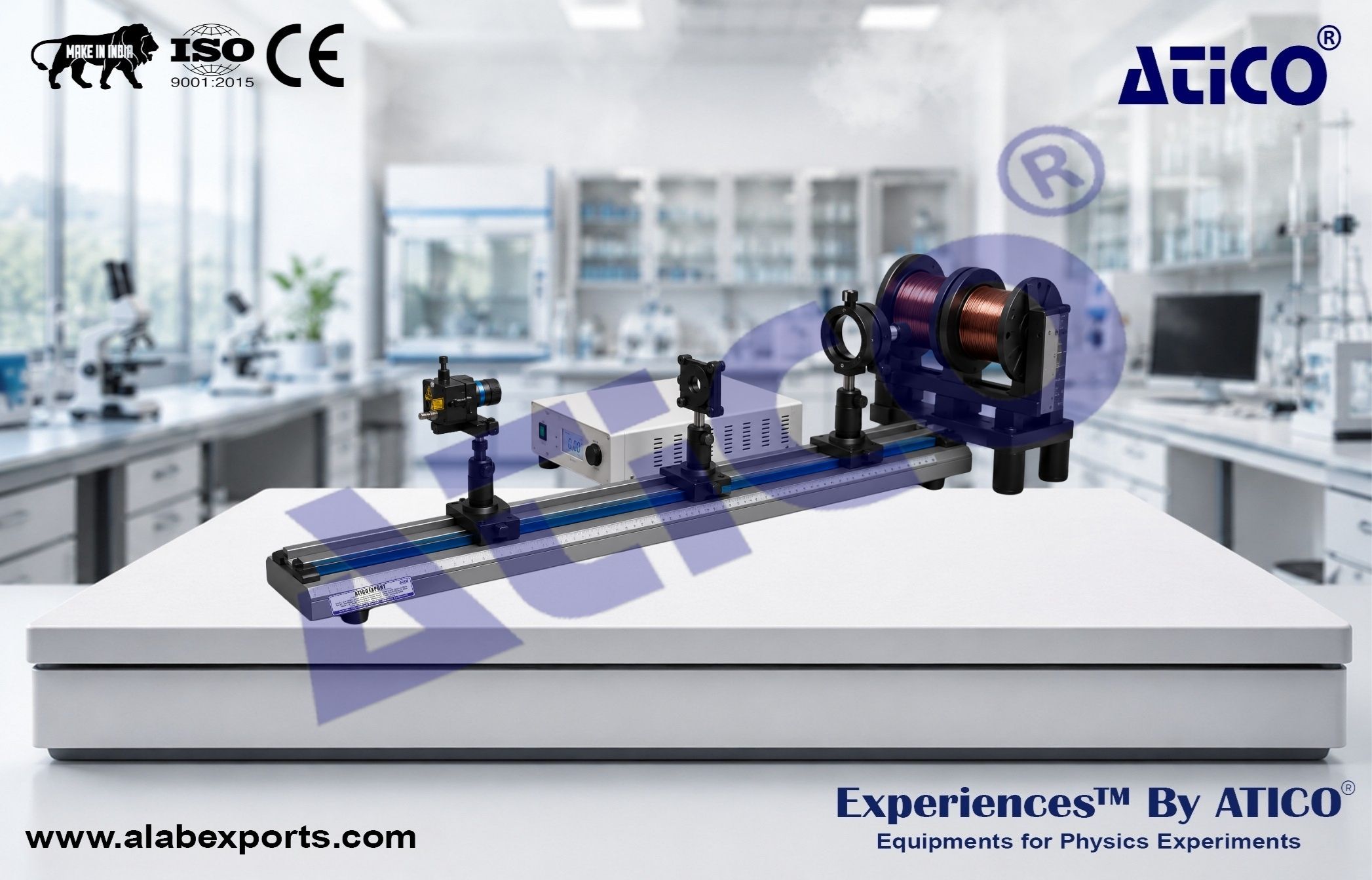

Zeeman Effect Apparatus with Electromagnet Advanced Physics Experiment

This CCD-based Zeeman Effect experiment system is designed to investigate the interaction between atomic spectral lines and strong magnetic fields. It enables students to generate high magnetic fields, observe Zeeman splitting and polarization states, adjust a Fabry-Perot etalon, and analyze spectral images using a high-resolution CMOS camera. The integrated image processing software provides real-time analysis for accurate measurement of spectral line splitting and calculation of the charge-to-mass ratio (e/m). Manufactured by Atico Export India.

Experiments :

• Generate Strong Magnetic Fields.
• Learn the Adjustment Method of the Fabry-Perot (F-P) Etalon.
• Study Standard Methods for Observing the Zeeman Effect.
• Observe the Splitting and Polarization States of Zeeman Spectral Lines Using a CCD-Based Measurement System.
• Calculate the Charge-to-Mass Ratio (e/m) from the Measured Zeeman Splitting Distance.

Tesla Meter :

• Range: 0–1999 mT
• Resolution: 1 mT

Pencil Mercury Lamp :

• Diameter: 7 mm
• Starting voltage: 1700 V

Electromagnet :

• Maximum power supply voltage: 50 V
• Maximum magnetic field: 1700 mT
• Continuously adjustable

Interference Filter :

• Center wavelength: 546.1 nm
• Half bandwidth: 8 nm
• Aperture: 19 mm

Fabry-Perot Etalon :

• Aperture: 40 mm
• Spacer thickness: 2 mm
• Passband: >100 nm
• Reflectivity: 95%

CMOS Camera :

• Resolution: 1280 × 1024
• 10-bit A/D conversion
• USB interface
• Programmable image size
• Programmable gain
• Programmable exposure time
• Programmable trigger control

Camera Lens :

• Industrial lens
• Focal length: 50 mm
• Numerical aperture: 1.8
• Edge resolution: >100 lines/mm
• C-mount

Optical Lenses :

• BK7 optical glass
• Focal length tolerance: ±2%
• Diameter tolerance: +0.0/-0.1 mm
• Effective aperture: >80%

Polarizer :

• Effective aperture: >50 mm
• 360° rotation
• Minimum scale division: 1°

Software Features :

• Real-time image display and acquisition
• Adjustable exposure time and gain
• Three-point circle positioning for diameter measurement
• Fine movement of measurement region in all directions
• Image zoom in and zoom out functions
• Multi-channel analysis for measuring energy distribution and determining ring diameter

Mechanical Components :

• Optical guide rail, slide, and adjustment frame manufactured from high-strength hard aluminum alloy
• Heat-resistant construction with low internal stress
• Matte surface finish for reduced optical reflection
• High-stability adjustment knobs for precise positioning
