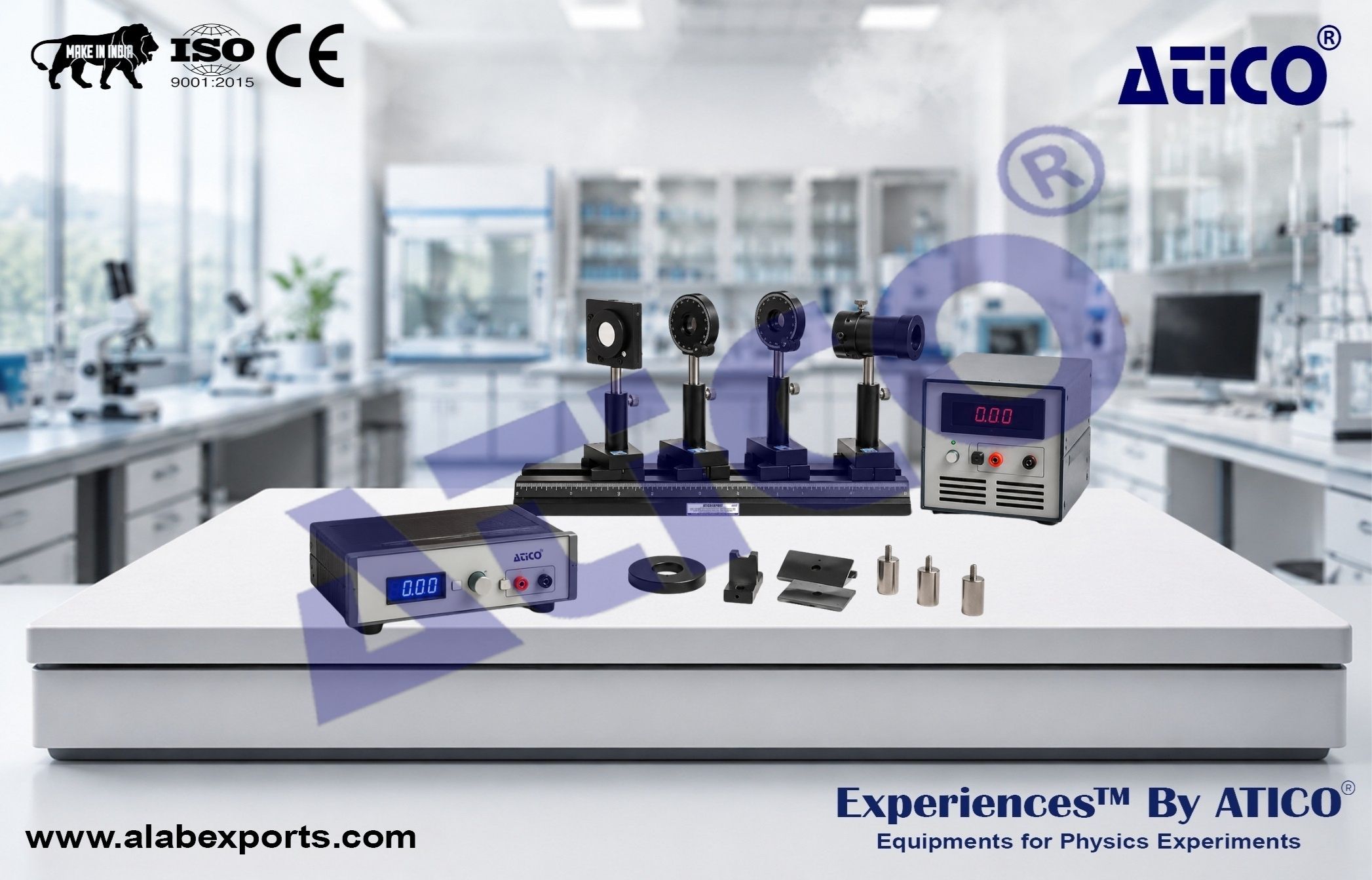

Zeeman Effect Apparatus with Electromagnet for Advanced Physics Lab

The Zeeman Effect Apparatus with Electromagnet is designed to investigate one of the most important phenomena in atomic physics—the Zeeman effect. This experiment provides direct evidence of atomic magnetic moments and spatial quantization by observing the splitting of atomic spectral lines under the influence of a magnetic field. The system employs a precision electromagnet capable of generating magnetic fields exceeding 1000 mT, enabling clear observation of the Zeeman splitting of the Mercury spectral line at 546.1 nm. Both transverse and longitudinal Zeeman effects can be demonstrated, allowing students to study the polarization characteristics and spectral line separation produced by magnetic interactions at the atomic level. A large-aperture Fabry-Perot etalon and direct reading microscope provide accurate observation and measurement of interference patterns. With optional interference filters, the apparatus can also be used to observe Zeeman splitting of additional Mercury spectral lines including 577 nm, 436 nm, and 404 nm. An optional CCD imaging system with analysis software allows digital acquisition and quantitative analysis of interference patterns, making the apparatus suitable for both instructional and advanced laboratory applications. Physics Lab Experiments from Atico Exports.

Experiments:

Study of Atomic Magnetic Moment and Spatial Quantization:

• Understand the relationship between magnetic fields and atomic energy levels
• Demonstrate spatial quantization in atomic systems
• Explore fundamental concepts of atomic magnetism

Observation of Transverse and Longitudinal Zeeman Effects:

• Observe transverse Zeeman splitting of Mercury spectral lines
• Observe longitudinal Zeeman splitting using polarization analysis
• Compare spectral behavior under different observation geometries

Spectral Line Splitting and Polarization Analysis:

• Observe the splitting of the Mercury spectral line at 546.1 nm
• Analyze π and σ polarized components
• Study the influence of magnetic fields on atomic emission spectra

Determination of Electron Charge-to-Mass Ratio (e/m):

• Measure Zeeman splitting accurately
• Calculate the electron charge-to-mass ratio from experimental data
• Relate atomic spectroscopy to fundamental physical constants

Fabry-Perot Interferometry and Spectroscopy:

• Learn the operation and alignment of a Fabry-Perot etalon
• Measure interference fringe patterns with high precision
• Utilize CCD-based image analysis for enhanced measurements (Optional)

• Zeeman Effect Studies
• Atomic Physics Experiments
• Quantum Mechanics Education
• Spectroscopy and Interferometry
• Magnetic Moment Analysis
• Electron Charge-to-Mass Ratio Determination
• Polarization Studies
• Advanced Physics Laboratory Training

Electromagnet Field Intensity:

• 1000 mT

Pole Spacing:

• 8 mm

Pole Diameter:

• 30 mm

Axial Aperture:

• 5 mm

Electromagnet Power Supply:

• 5 A / 30 V (Max.)

Fabry-Perot Etalon Diameter:

• 40 mm

Air Gap Length:

• 2 mm

Etalon Passband:

• 100 nm

Reflectivity:

• 95%

Etalon Flatness:

• < λ/30

Teslameter Range:

• 0 – 1999 mT

Teslameter Resolution:

• 1 mT

Mercury Lamp Emitter Diameter:

• 6.5 mm

Mercury Lamp Starting Voltage:

• 1500 V

Mercury Lamp Power:

• 3 W

Optical Filter Central Wavelength:

• 546.1 nm

Optical Filter Half Bandwidth:

• 8 nm

Optical Filter Aperture:

• 19 mm

Direct Reading Microscope Magnification:

• 20×

Microscope Measurement Range:

• 6 mm

Microscope Resolution:

• 0.01 mm

Polarizer Aperture:

• 20 mm

Polarizer Rotation Range:

• 0 – 360°

Polarizer Resolution:

• 1°

Lens Diameter:

• 34 mm

Optical Rail Length:

• 500 mm

Rail Scale Division:

• 1 mm

Components Included:

Main Electric Unit:

• Quantity: 1

Pencil Mercury Lamp:

• Quantity: 1

Milli-Teslameter Probe:

• Quantity: 1

Optical Rail:

• Quantity: 1

Carrier Slides:

• Quantity: 4

Electromagnet Power Supply:

• Quantity: 1

Electromagnet:

• Quantity: 1

Polarizer:

• Quantity: 1

Interference Filter:

• Quantity: 1

Fabry-Perot Etalon:

• Quantity: 1

Quarter-Wave Plate:

• Quantity: 1

Lens:

• Quantity: 2

Direct Reading Microscope:

• Quantity: 1

Power Cord:

• Quantity: 1

Instruction Manual:

• Quantity: 1

CCD Camera, USB Interface & Analysis Software (Optional):

• Quantity: 1 Set

• Strong and Adjustable Magnetic Field
• Observation of Both Transverse and Longitudinal Zeeman Effects
• High-Resolution Fabry-Perot Interferometry
• Precise Spectral Measurements
• Uniform Magnetic Field Distribution
• Optional Digital Imaging and Analysis
• Comprehensive Experimental Capability
• Suitable for Undergraduate and Advanced Physics Laboratories
• Observation of Both Transverse and Longitudinal Zeeman Effects
• Adjustable Magnetic Field Using Electromagnet
• Large Magnet Pole Diameter for Uniform Interference Patterns
• Wideband Fabry-Perot Etalon for Multiple Mercury Spectral Lines
• High-Accuracy Magnetic Field Measurement
• Direct Reading Microscope for Precise Analysis
• Optional CCD Camera with Analysis Software
• Ideal for Advanced Physics Laboratories
