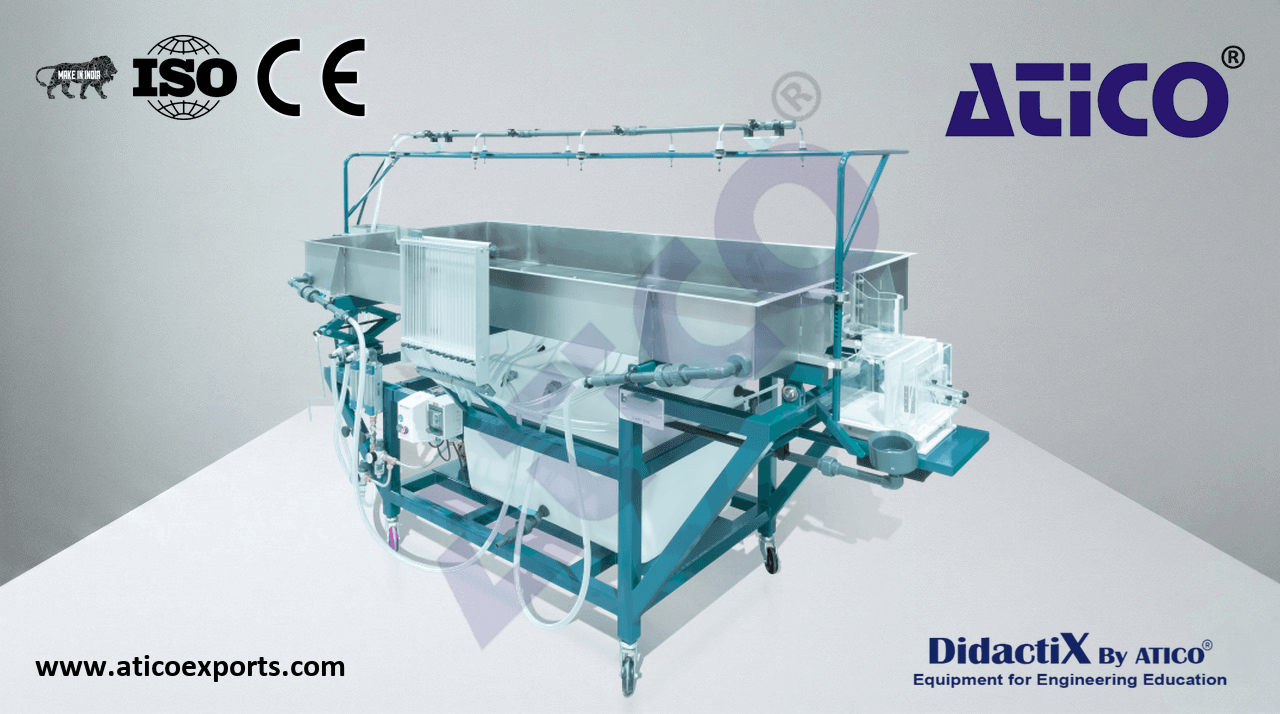

Advanced Environmental Hydrology System Deluxe

Unique system with features suitable for studying fluvial geomorphology which include: rainfall/runoff hydrographs for catchment areas of varying permeability; the abstraction of ground water by wells, both with and without surface recharge from rainfall; the formation of river features and unique to this apparatus, fluvial mechanics.

Unique system with features suitable for studying fluvial geomorphology which include: rainfall/runoff hydrographs for catchment areas of varying permeability; the abstraction of ground water by wells, both with and without surface recharge from rainfall; the formation of river features and unique to this apparatus, fluvial mechanics.

• Stilled inlet tank provides developed river-flow conditions, allowing the full length of the tank to be used for river simulations
• Novel outlet tank design for water flow and sediment flow measurement
• Stainless steel sand tank
• Dual jacks provide adjustable tilt
• Adjustable spray nozzle height
• Use of fine-grade sand allows detailed feature development
• Single grade of sand for all defined demonstrations, no need to change the sand
• Control and measurement of inlet flows
• Flexible configuration allows a wide range of simulations
• Computer data logging supplied as standard for sediment and water outlet flow measurement
• Supplied with a set of models including fabricated trays and rings
• Circular open-ended ring: 500mm diameter x 60mm high
• Small square open-ended ring: 300mm x 300mm x 60mm high
• Closed ring with removable central clear plastic standpipe: 500mm diameter x 60mm high
• Large rectangular open-ended ring: 1000mm x 500mm x 60mm high
• Large rectangular closed ring with hole: 1000mm x 500mm x 60mm
• Impermeable catchment: 1000-gauge Polythene sheet
• Permeable catchment: Sheets of absorbent material
• Model structures: Cylinder – 25mm diameter, Rectangular bridge pier – 25mm wide, 75mm long, 125mm high, Rounded bridge pier, Streamlined bridge pier
