Auxiliary Transformer and Protection Units

Transformes are electrical machines whose purpose is to modify the voltage values at certain points of the electrical networks. Nowadays, it would be unfeasible to transport and distribute energy along the transmission and distribuction lines wothout these machines.

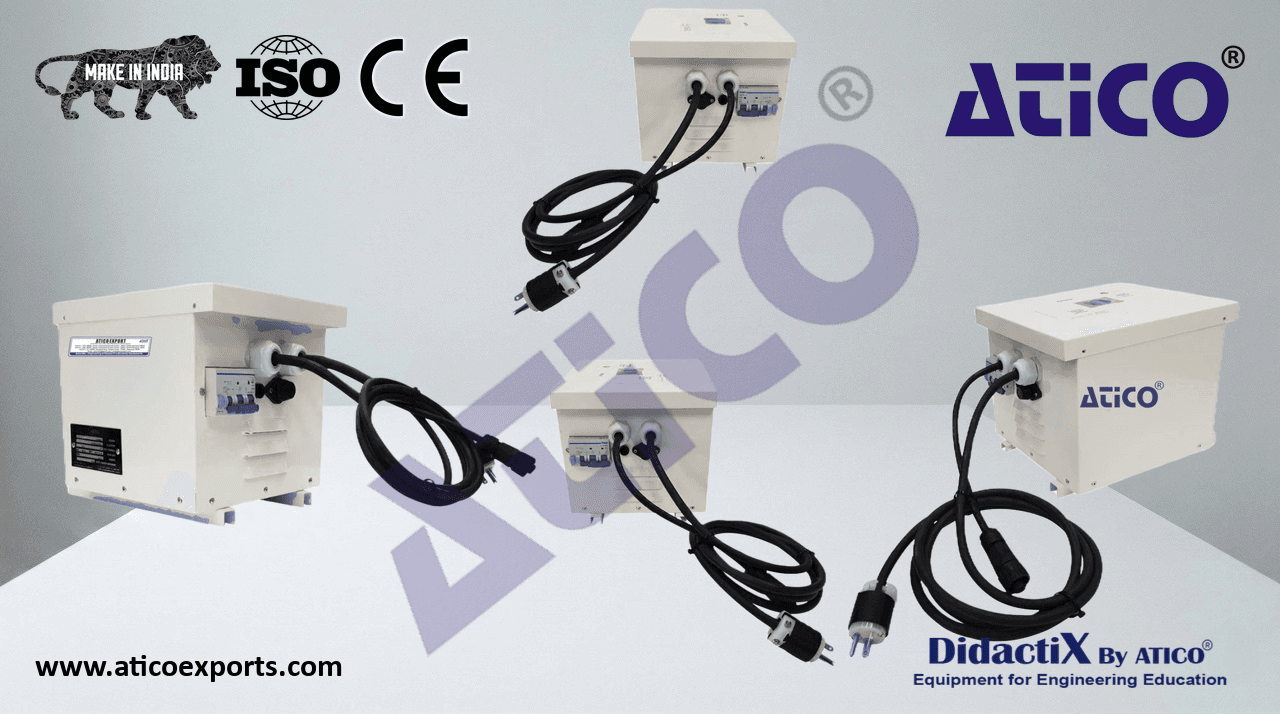

ATENG 12044 — Auxiliary Transformer and Protection Units

• 1 EMPTA-1PH/4K. Unit:
  Bench-top unit.
  Diagram in the front panel with distribution of the elements similar to the real one.
  Power single-phase transformer.
• Nominal power: 4 kVA, 1 PH.
• Primary winding voltage: 110 – 127 VAC.
• Secondary winding voltage: 200 – 240 VAC.
• Primary winding nominal current: 30 A.
• Secondary winding nominal current: 16 A.
• Fuse: 32 A.
• Frequency: 50/60 Hz.
  Single-phase Differential Protection 30 mA, 32 A.
• 2 EMPTA-UL/CSA. Unit:
  Bench-top unit.
  Diagram in the front panel with distribution of the elements similar to the real one.
  Power single-phase transformer.
• Nominal power: 4 kVA, 1 PH.
• Primary winding voltage: 110 – 127 VAC.
• Secondary winding voltage: 200 – 240 VAC.
• Primary winding nominal current: 30 A.
• Secondary winding nominal current: 16 A.
• Fuse: 16 A.
• Frequency: 50/60 Hz.
  Single-phase Differential Protection 30 mA, 32 A.
• 3 EMPTA-3PH/7K. Unit:
  Bench-top unit.
  Diagram in the front panel with distribution of the elements similar to the real one.
  Power Three-phase Transformer.
• Nominal power: 7 kVA, 3 PH.
• Primary winding voltage: 190 – 240 VAC.
• Secondary winding voltage: 380 – 400 VAC.
• Primary winding nominal current: 20 A.
• Secondary winding nominal current: 10 A.
• Fuses: 3 x 16 A.
• Frequency: 50/60 Hz.
  Three-phase Differential Protection 30 mA, 20 A.
• 4 EMPTA-3PH/12K. Unit:
  Bench-top unit.
  Diagram in the front panel with distribution of the elements similar to the real one.
  Power Three-phase Transformer.
• Nominal power: 12 kVA, 3 PH.
• Primary winding voltage: 190 – 240 VAC.
• Secondary winding voltage: 380 – 400 VAC.
• Primary winding nominal current: 30 A.
• Secondary winding nominal current: 20 A.
• Fuses: 3 x 32 A.
• Frequency: 50/60 Hz.
  Three-phase Differential Protection 30 mA, 32 A.
