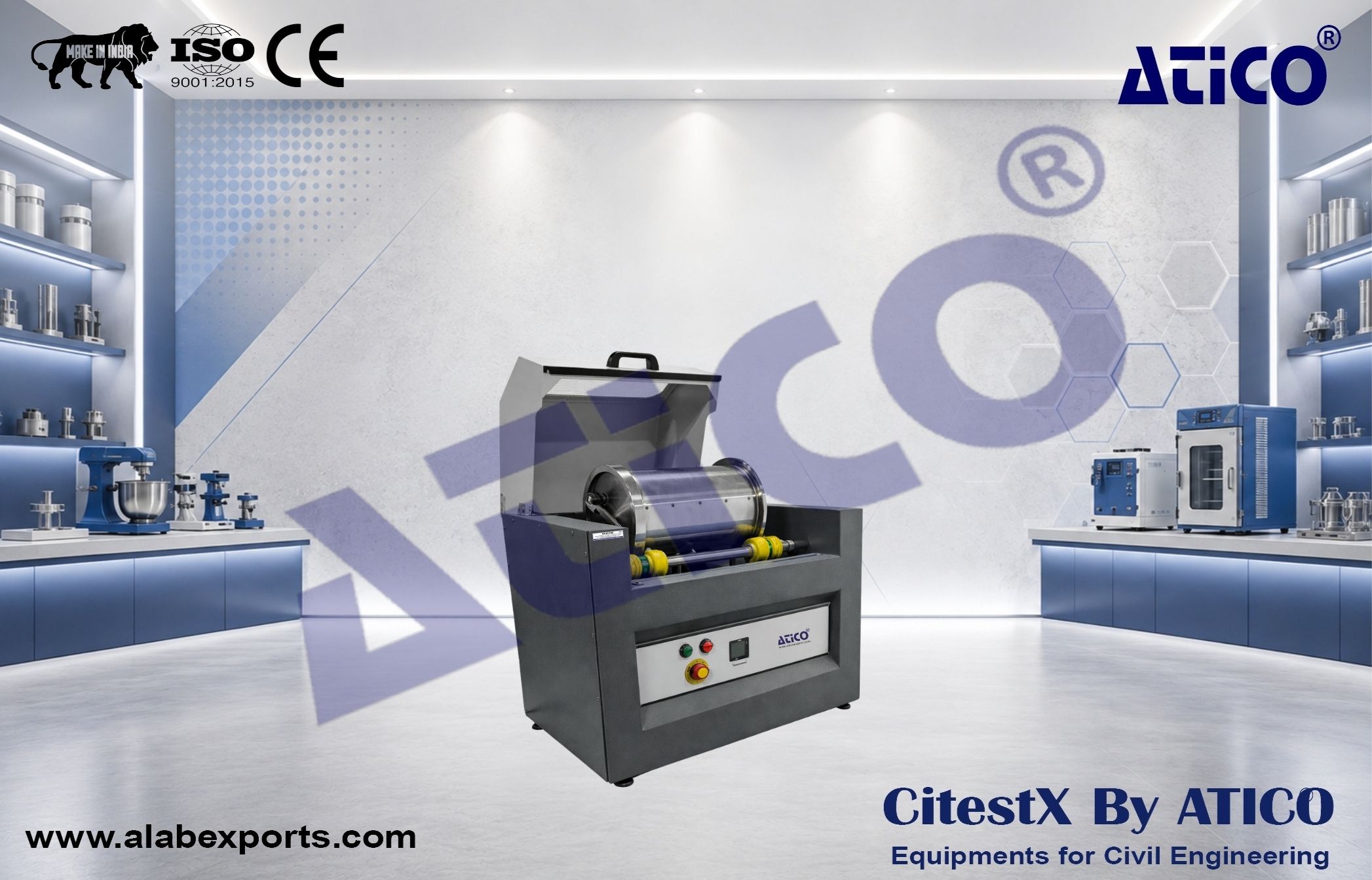

Ball & Rod Mill

Ball & Rod Mill is designed for grinding wet and dry products. It is used for the processing and grinding of many products called soft, hard and very hard.

Weight (kg) :

• 220

Power Supply :

• 220 V, 50-60 Hz, 1 ph

Control System :

• The rotation speed can be adjusted.
• The device with a digital panel information such as speed working time can be entered and where we can grind at the desired micro level.
• It can grind without the desire to reach a certain micro level.

Motor :

• Electric motor: 1.5 hp, 1500 rpm, V belt driven.

Feed Size and Output :

• Samples of 500–1500 ml up to 8 millimeters can be fed to the Ball & Rod Mill and after the grinding process, the samples can be reduced to 40 micron.

Roller System :

• Ball and Rod Mill is supplied with 2 rubber coated rollers °80x80 mm, whose rotation speed can be adjusted between 0–300 rpm.

Grinding Bowls :

• It can work with two stainless steel grinding bowls at the same time.
• 200-200 mm, 6 lt internal volume Grinding bowl and 200-300 mm, 9 lt internal volume Grinding bowl made of AISI 304 material should be ordered separately upon request.

Grinding Media :

• Grinding Ball Set (Steel, Stainless Steel and alloy steel) and Grinding Rods (AISI 304 stainless steel) must be ordered separately upon request.

Spare Parts & Accessories :

• Grinding Bowl
• Grinding Bowl Set for Ball & Rod Mill for 6 lt Grinding Bowl Chrome
• Grinding Bowl Set for Ball & Rod Mill for 9 lt Grinding Bowl Chrome
• Grinding Rod Set Ball & Rod Mill, Stainless Steel
• Grinding Rod Set Ball & Rod Mill, Stainless Steel
