Container Laboratory

Application :

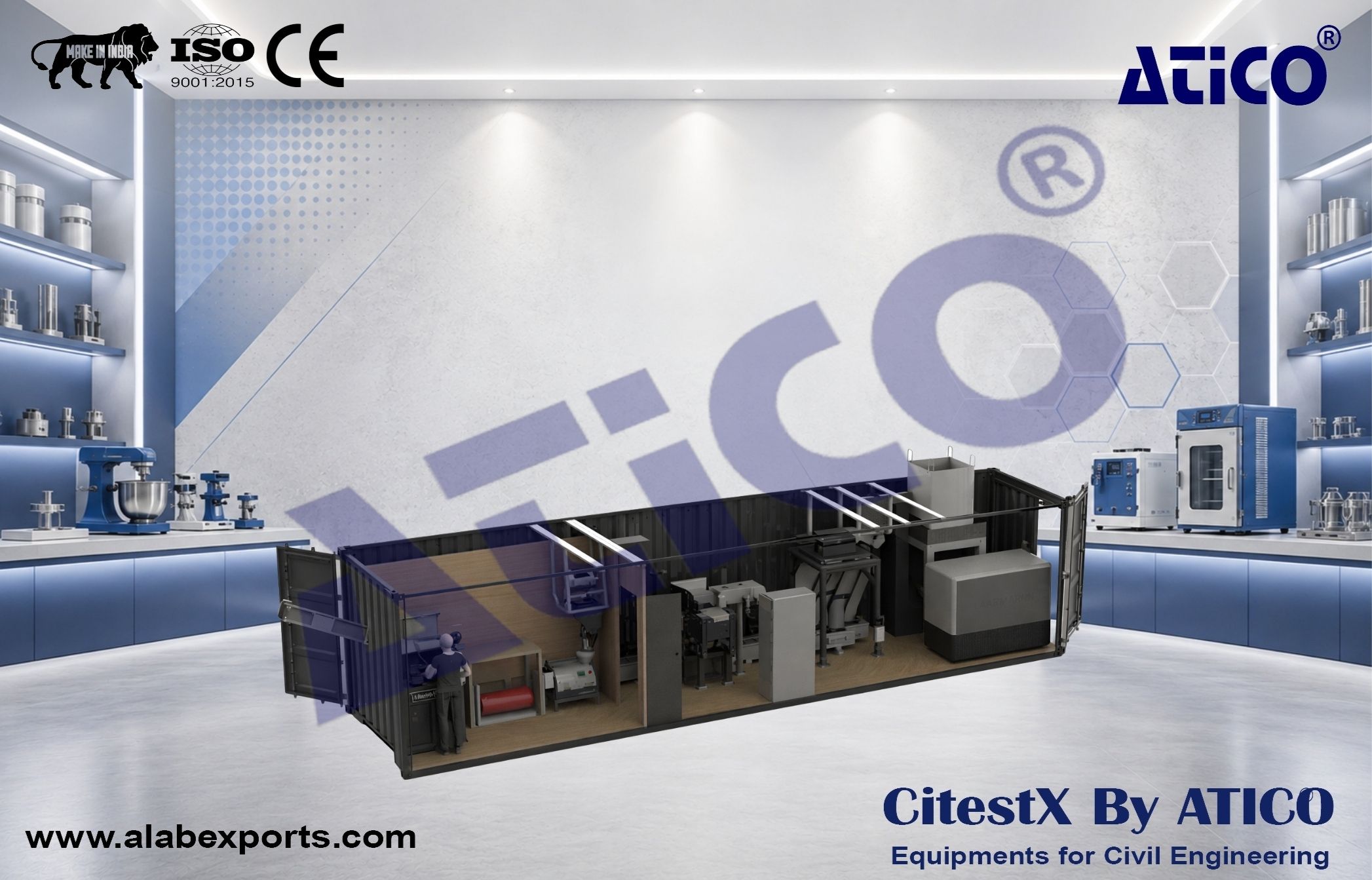

• Container labs are made to analyze or process samples on location. It is more focused and supplied for scientists to have a clean and suitable working environment. It could be that it would require a fixed temperature to carry out the work. These containers are more basic than the sampling containers and are used to give a general lab space on site. Specific sample analyzing equipment such as a flotation machine, micro ball mills or sieve shakers can be built within the container lab.

Sampling Container :

• The explanation underneath is based on iron ore, but in theory the system process stays the same. We mention the jaw crusher, but this is a modular system and there could be a rolls crusher (coal) or cutting mill (precious metals recovery from printed computer boards) for example. When looking at the 40ft container –Mobile Lab40ftC–, there will be a pre-crushing installed, in the example it is a jaw crusher, but again could be a different pre-crushing machine.

• We send a closed container to the site where the big bag is being filled, at the mine or plant.

• There will be a small instruction where to make a hole in the roof of the container. The hole will be marked on the outside of the container, as well as 4 holes to fix a hopper on the roof of the container.

• The Hopper of 1500L will be transported in the container and can be picked up out of the container when putting it on top; no extra costs for separate transport.

• When the hopper is mounted on the top, the operator will have the possibility to open and close the valve letting the product out of the hopper.

• In the container, exactly under the outlet of the hopper; fixed to the ceiling of the container, there is a vibratory feeder for transporting the product in an even flow towards the sampling system.

• The vibratory feeder feeds a large Vesin sampler taking in this case 5% of sample. Let–s assume the starting volume is around 1000L of sample, then we end up with 50L of product.

• The reject (950L) will be transported outside the container by a conveyor belt into a Big Bag or truck; also the conveyor belt is transported inside the container overseas, no extra costs for separate transport.

• Then we have the option with a small beaker elevator to transport the product vertically in the crusher this also could be done in 4 manually standard buckets of 12 Litre.

• The crush the iron ore into a particle size <2.0 mm. The proven itself as a robust machine after the experiences we have with crushing Ferrochrome and Tungsten carbide for the last 8 years.

• After the crushing the material is put into a secondary sampler (also a Vesin but smaller model). Now we can take from the 50 Litre sample a secondary let–s say 10%: 5 Litre.

• The 5 litre sample will enter the rotary sample divider. The carrousel with buckets will contain several different sizes. Each bucket will collect a different sample amount. At the outside of the buckets the specific bucket weight is mentioned. The operator takes out several buckets, calculates the weight inside of the bucket and makes the correct combination of buckets to reach the 1.2 kg.

• Finally he can put this sample in a 2000 pulveriser ring mill to mill the product down to the required end fineness. After the milling process the operator can take the final sample (500 gr) directly out of the milling bowl using only a coffee spoon.

• Job done.
