Digital core photography system Routine core analysis instruments

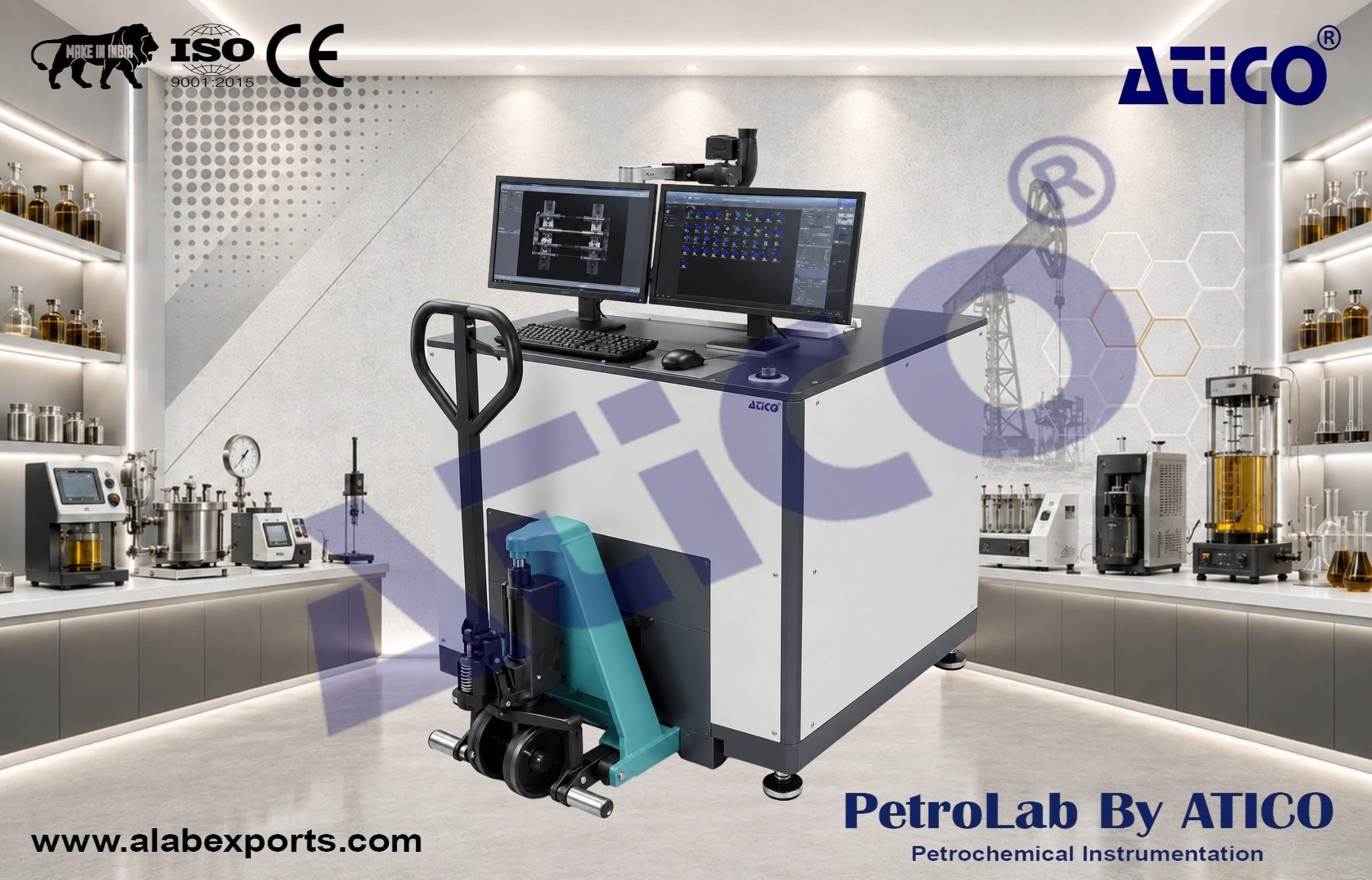

The fully automated digital core photography system is specifically designed for complete core photography and archiving purposes, producing high-quality images of whole or slabbed cores under both white and UV light. The device consists of a heavy-duty, corrosion-proof, stainless steel box, a trolley, a PC station, a high-resolution camera, and white and ultraviolet lights. First, the operator places samples on four shelves inside the container and closes the lid to prevent any outside light from entering. Then either the white or UV light is turned on. The camera mounted above the samples can then sequentially capture images of the specimens. The strategic position of the camera yields a flawless quality. The images are automatically imported, digitized, displayed by the video analysis software. The latter can perform camera calibration functions, image processing, file compression, storage and transfer.

Camera type :

• 35 mm Full frame

Camera resolution :

• 5616 x 3744 pixels

File size :

• 21 Megapixels

Interface :

• USB Internal

PC hard drive :

• 80 GB

Maximum frame area :

• 600 mm x 900 mm

Data storage on CDROM :

• RAW, JPG

Weight :

• 200 kg

Power supply :

• 110 VAC, 60 Hz or 220 VAC, 50 Hz
