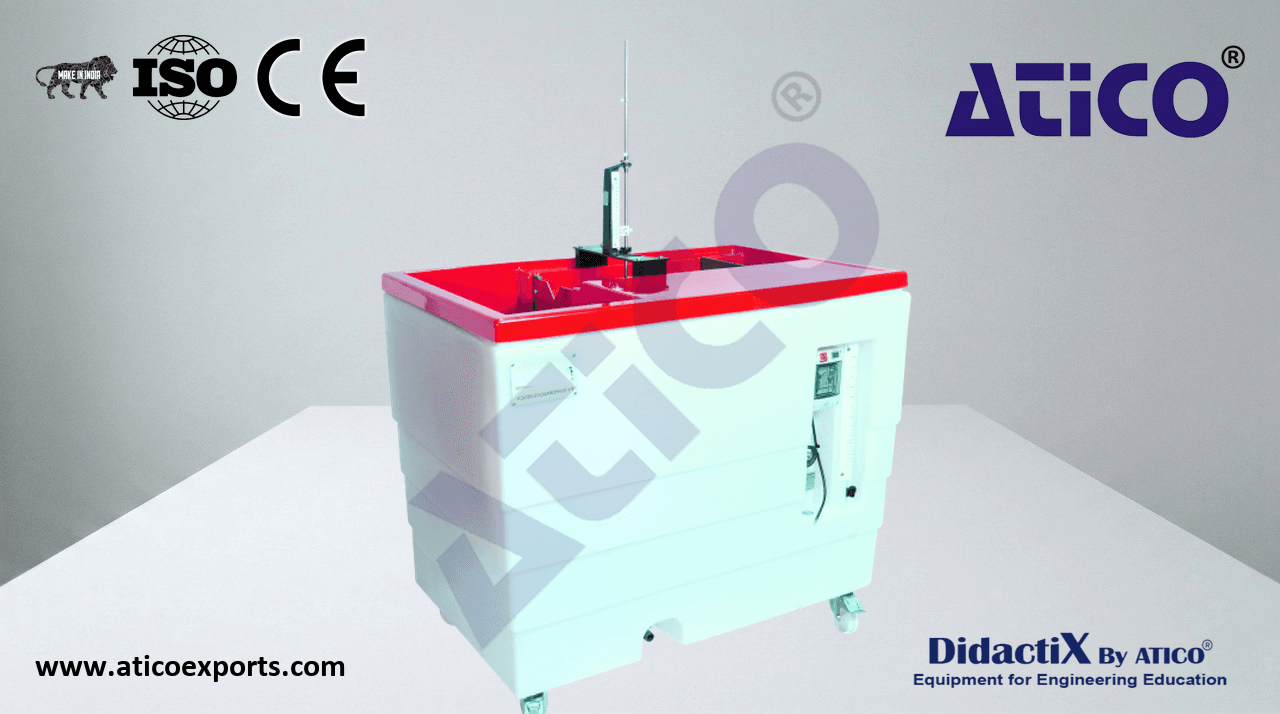

Flow Over Weir Deluxe

Consists of five basic elements used in conjunction with the flow channel in the moulded benchtop of the Hydraulics Bench.

Consists of five basic elements, used in conjunction with the flow channel, in the moulded bench top. Two weir plates of different shapes are provided enabling familiarisation and comparison with theory.

• Weir plate thickness: 0.002m
• Width: 0.23m
• Height: 0.16m
• Rectangular notch thickness: 0.002m
• Rectangular notch width: 0.03m
• Rectangular notch height: 0.082m
• Angle of V notch weir: 90° inclusive
• Hook & point gauge range: 0-150mm
• Accuracy: 0.1mm
