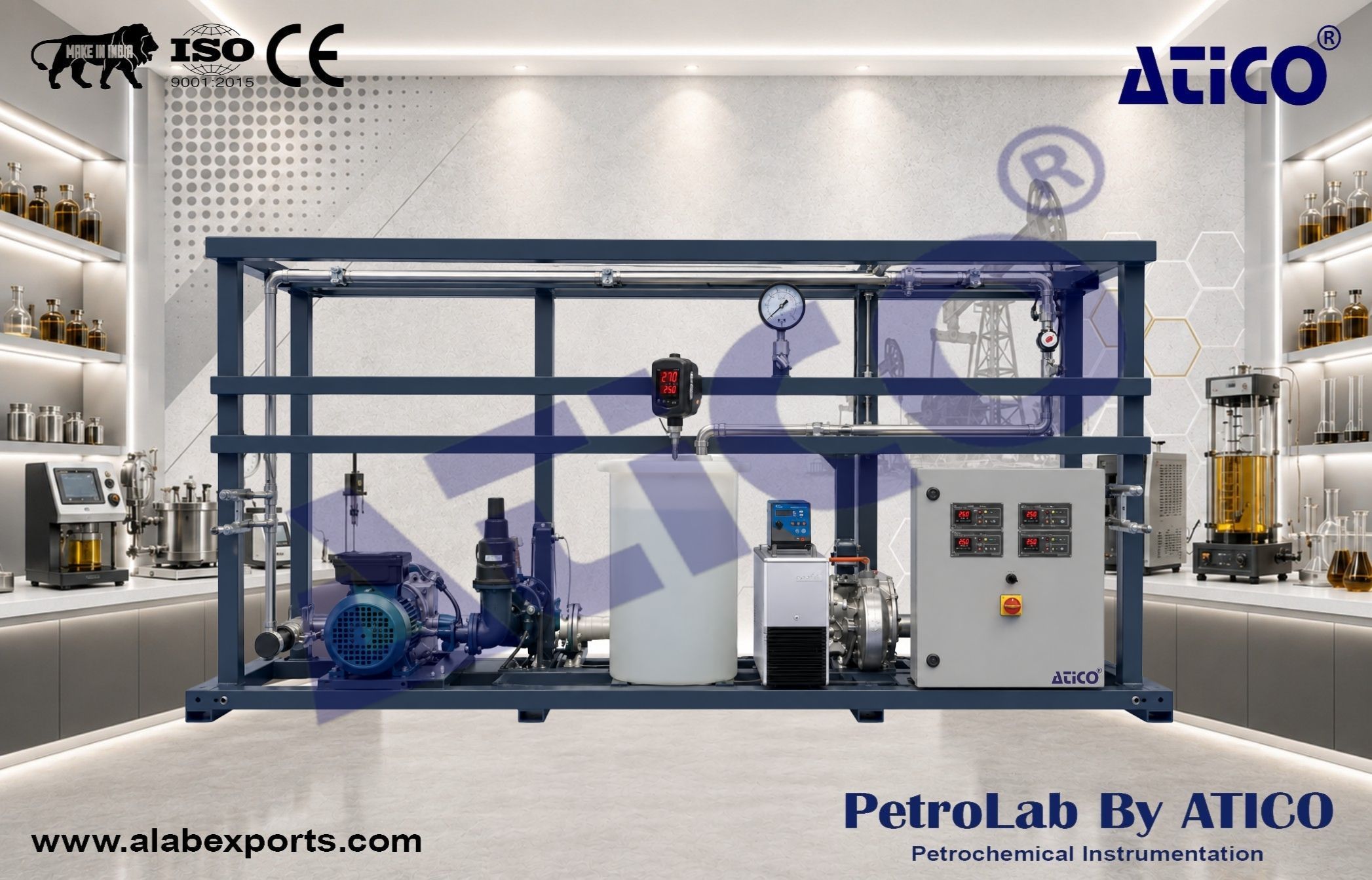

+91 98967 93832The Friction flow loop for evaluating Drag Reducing Agents system and trainers flow loop enables the end user to test, quantify and evaluate the performance of a friction reducer by monitoring the pressure losses of a fluid in a pipe in the turbulent flow regime. The effect of friction reducers on both flow rate and pressure are analyzed and reported. The apparatus provides fast, accurate and reliable results which provide great insight into our understanding of friction reducers. The system circulates test fluid through two different diameter test sections to generate differential pressure versus flow rate data. The test fluid injection system comprises a mixing tank to thoroughly mix and homogenize the additives in the test fluid, and a low-shear pump whose flow rate is controlled by a Coriolis flow meter. High-accuracy differential pressure transducers are implemented in each tubing diameter allowing multiple data readings per test. Additives can be injected into the flow stream via a metering pump or directly added into the mixing tank. Differential pressure, pressure, temperature, flow rate and Reynolds number are computed in real time. The system can be operated as an open or closed circuit, i.e. recirculation. Moreover, the architecture warrants simple set up, operation, maintenance, calibration and cleaning; the latter facilitated by the automatic flush-and-fill feature.
Working temperature :
Working pressure :
Reynolds number :
Tank volume :
Flow rate :
Differential pressure range :
Loop No. 1 external diameter :
Loop No. 1 internal diameter :
Loop No. 1 length :
Loop No. 2 external diameter :
Loop No. 2 internal diameter :
Loop No. 2 length :
Wetted parts :
Power supply :
