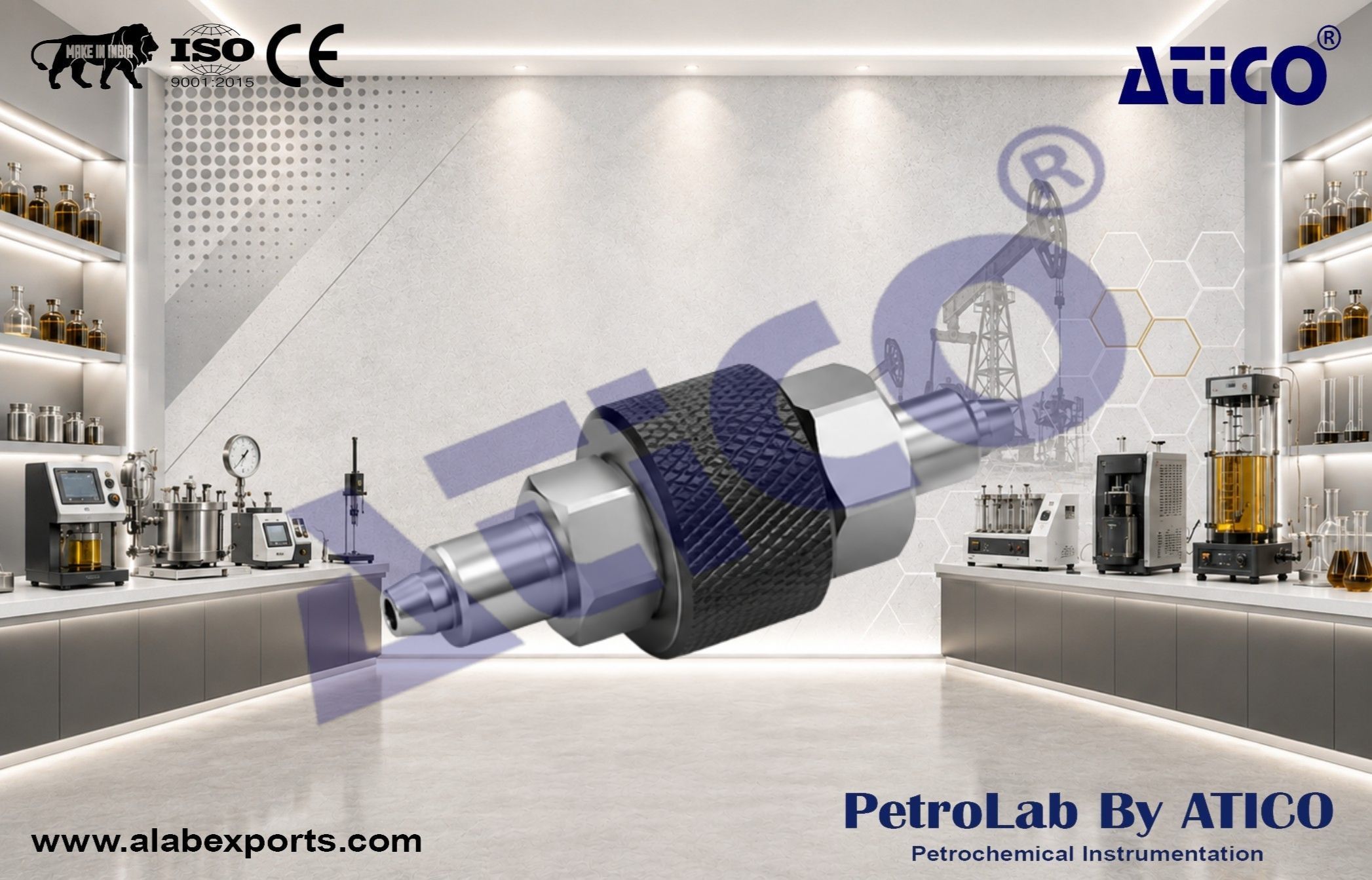

High pressure quick connectors Special core analysis Instruments

The High pressure quick connectors Special core analysis Instruments are specially designed to quickly and efficiently connect different piping components in high-pressure systems without the need for special tools. Various combinations of female and male couplers are available, reinforced with Viton sealing for reliable performance.

Wetted parts :

• Stainless steel
• Hastelloy

Connector type :

• A: Male-Male
• B: Female-Male
• C: Female-Female

Maximum pressure :

• 10,000 psi

Maximum temperature :

• 200°C

Orifice size :

• 1 mm (0.039")

Port connection :

• 1: 1/8" LP
• 2: 8 mm

Seal material :

• Viton

• Available in up to three connector types
• Engineered sealing design for reliable leak-tight performance
