HTST/UHT Mini Pilot System Tubular Deluxe

A cost-effective HTST/UHT processing system based on tubular heat exchanger only, designed to meet increased demands for larger sample volumes. Suitable for various industries including media sterilisation, baby foods, beverages, dairy, and pharmaceuticals.

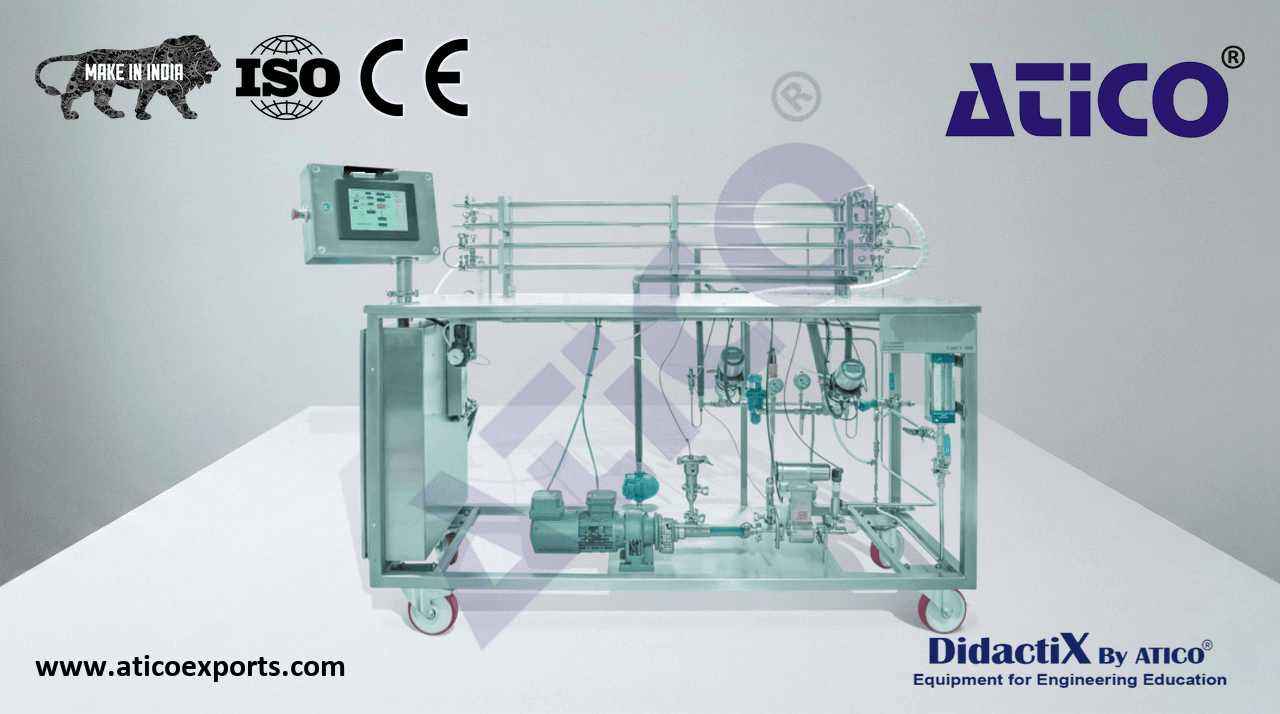

A cost-effective HTST/UHT processing system based on tubular heat exchanger only, designed to meet increased demands for larger sample volumes. Three stage heat exchanger complete with services, controls and instrumentation. Heat exchanger and control panel mounted on top of stainless steel table with feed pump and all services and electrical cabinet located below. Learn about HTST/UHT Mini Pilot System Tubular equipment for optimal educational outcomes..

• Feed pump: Progressive cavity variable speed pump
• Flow rate: 20-100 l/h
• Discharge pressure: 18 bar (max)
• Heating system: External steam supply
• Maximum temperature: 165°C
• Max product heating duty (preheat + heating): 17 kW
• Tubular heat exchanger number of tubes: 10 (2 preheat, 4 heating, 4 cooling)
• Inside tube diameter: 8.1 mm
• Outside diameter: 22 mm
• Length (heated): 1.46 m
• Product volume: 1.0 l
• Material of construction: 316 Stainless steel
• Assembled test pressure: 30 bar
• Working pressure: 24 bar (max)
• Flowmeter option type: Electromagnetic
• Flow range: 20-100 l/h
