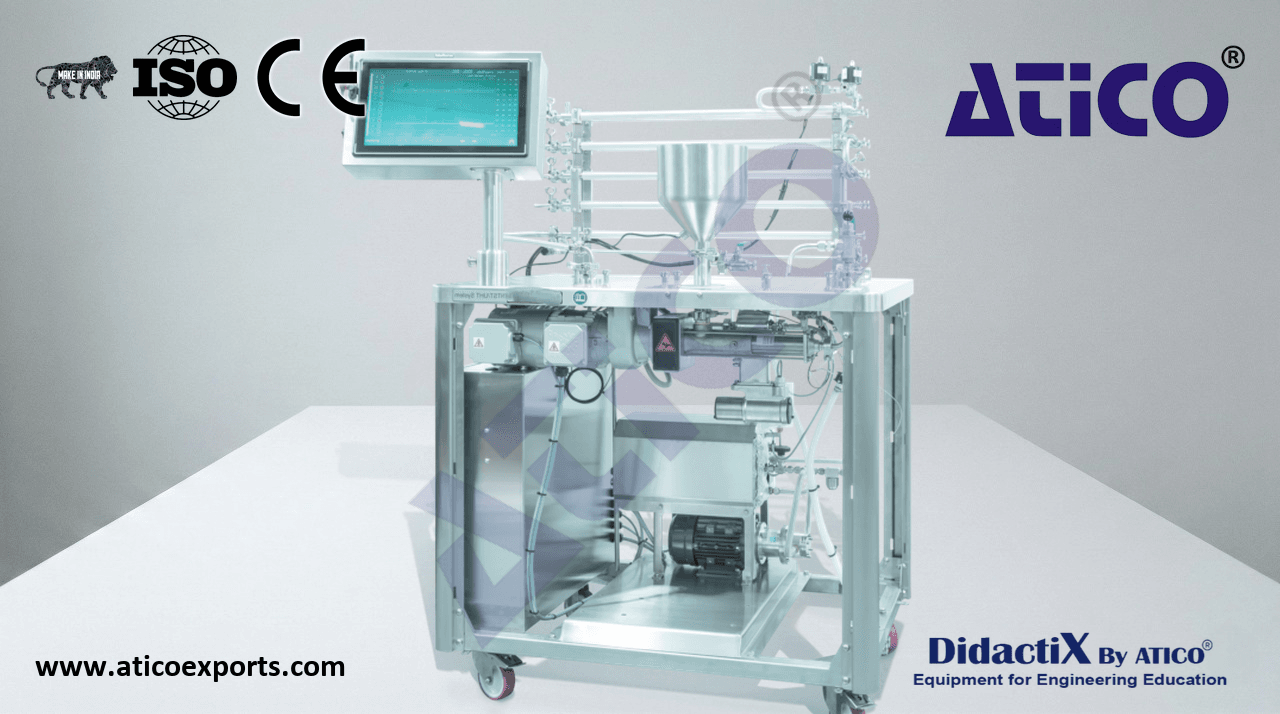

HTST/UHT System Deluxe

Highly flexible, miniature-scale HTST/UHT processing system ideal for new liquid product development in the laboratory. Compact, mobile and easy to install with integral pressurised hot water generator.

Compact, mobile and easy to install. Has an integral pressurised hot water generator and requires only electricity and cooling water to operate making it ideal for confined spaces with limited services available.

Feed pump

• Progressing cavity variable-speed pump, with standard and high flow modes
• Particulate handling: 0.8mm
• Fibre handling: 25mm
• Standard flow: 10-30 L/hr
• High flow: Up to 120 L/hr

Pressurised water circulator

• Water capacity: 4.0 litres
• Pump circulation rate: Variable up to 6 L/m
• Water temperature: 165°C maximum
• Safety cutouts: Low level, High pressure, Mechanical pressure relief valve
• Heating duty: 4 or 6 kW

Plate heat exchangers

• Plate overall dimensions: 75 x 115mm
• Effective diameter: 2.0mm
• Plate thickness: 0.5mm
• Wetted perimeter: 153.0mm
• Plates: 316 stainless steel
• Gaskets: Food-grade silicone
• Working pressure: 10 bar (max)
• Standard holding tubes: 2s and 15s

Tube specifications

• Product side diameter: 8.1mm
• Overall diameter: 15.8mm
• Length (heated): 800mm
• Material: 316 stainless steel
• Assembled test pressure: 15 bar
• Working pressure: 10 bar (maximum)
• Standard holding tubes: 2s and 15s
