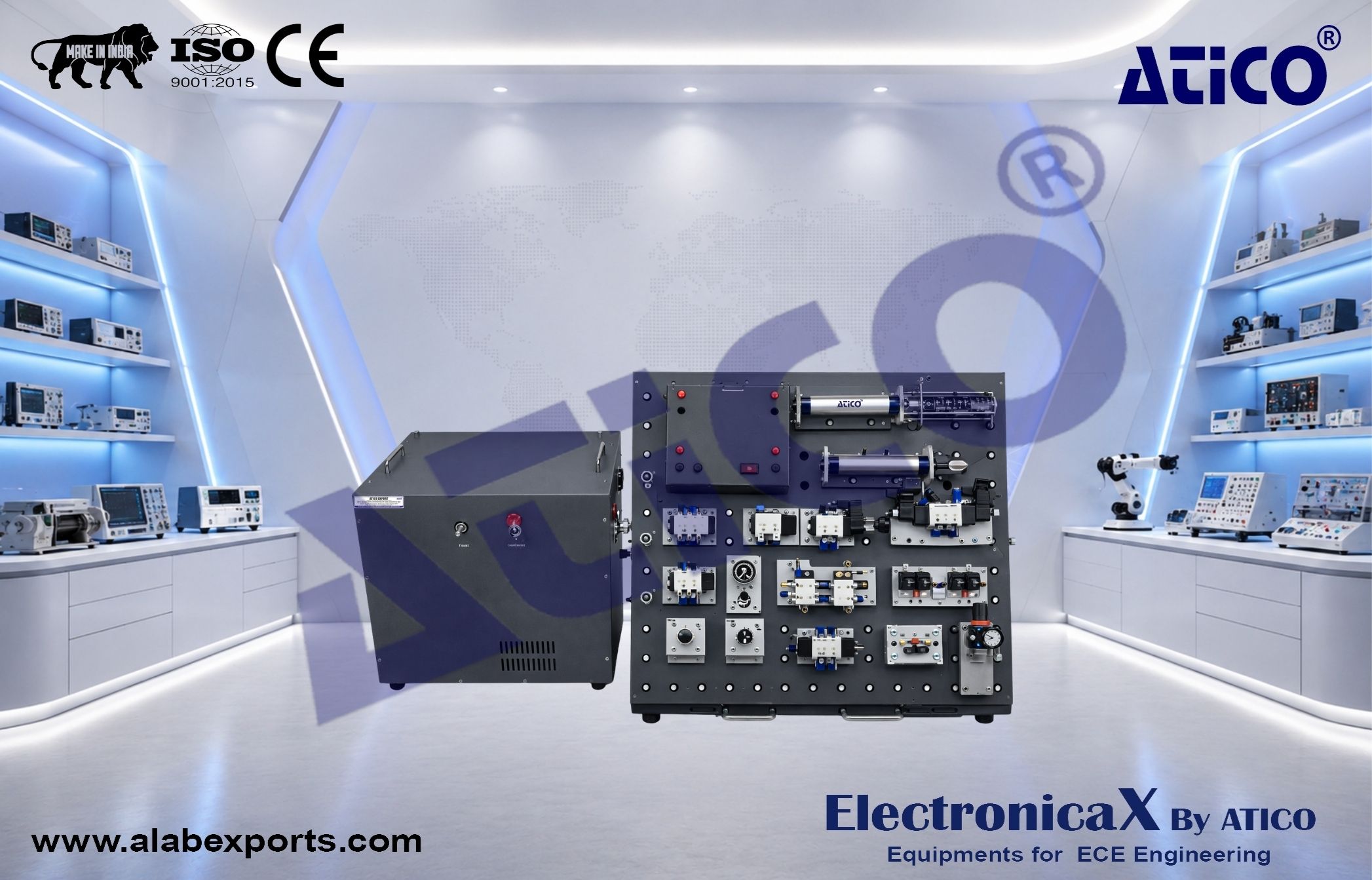

Hydraulics & Electro Hydraulics Trainers (Water Base)

Consists of industrial grade modified aluminum pneumatics parts commonly used in industrial field
Classified into basic, intermediate and advanced level training experiments
Customizable in modular format for logical analysis of electrical circuits
Design and wiring in hydraulics and electro-hydraulics training experiments
Includes electric control for hydraulics sequence control
Expansion and compatibility supported with 4mm binding post socket
Uses a standard plug-in profile panel for common use of training set
Each part can be attached and detached horizontally or vertically on the profile panel without tools
Designed to suit theoretical and practical needs of vocational schools, technical training institutions, polytechnic and university
Suitable as an introductory tool to hydraulics

Hydraulics Circuit Exercise :

• Exercise 1: Directional Control – Double Acting Cylinder Control with 5/2 Way Directional Control Valve, Lever Operated.
• Exercise 2: Directional Control – Double Acting Cylinder Control with 5/3 Way Directional Control Valve, Lever Operated, Closed Center
• Exercise 3: Speed Control by Using One Way Flow Control Valve
• Exercise 4: Pressure Control by Using Pressure Regulator
• Exercise 5: Metering –IN₂ and Metering –OUT–
• Exercise 6: Automatic Forward and Backward
• Exercise 7: Weight Loading by Using Spring Load

Electro-Hydraulics Circuit Exercise :

• Exercise 8: Directional Control-Double Acting Cylinder Control with 5/2 Way Valve with Single Solenoid
• Exercise 9: Directional Control-Double Acting Cylinder Control with 5/2 Way Valve with Double Solenoid
• Exercise 10: Speed Control by Using One Way Flow Control Valve
• Exercise 11: Pressure Control by Using Pressure Regulator
• Exercise 12: Metering –IN₂ and Metering –OUT–
• Exercise 13: Automatic Forward and Backward
• Exercise 14: Weight Loading by Using Spring Load

• Modular design allows modifications to suit course or student requirements
• Custom sizes for the modular board can be provided upon request
• Additional modular components are available separately if required
• High quality durable rubber-silicone compound on the modular board ensures components stay in place while allowing easy removal and placement
• High quality industrial grade components
• Water power pack designed for easy handling and transportation
• Includes water power pack with built-in high power 350W water pump for experiments
• Quick action self-sealing couplings mounted ready for use
• Plates made of high quality machined steel that do not deform after continuous usage
• Unit comes with various height (tilt) settings
• Uses water instead of hydraulic fluid, making it economical and easy to maintain
• High quality aluminum components that do not rust
