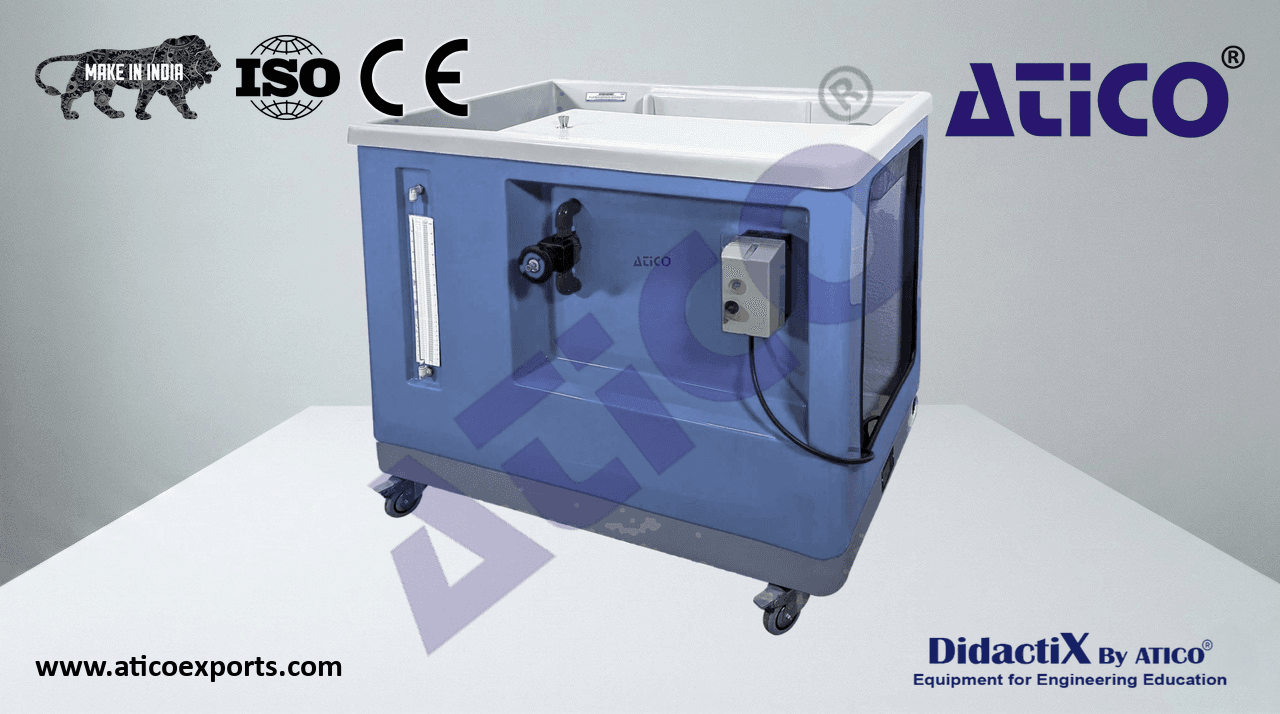

Hydraulics Bench Deluxe

The Hydraulics Bench, allows the study of fluid behaviour, hydraulic theory and the properties of fluid mechanics.

ATENG 12035 — Hydraulics Bench

Mobile hydraulic bench, made of fibreglass reinforced polyester, and mounted on wheels for its mobility.

Centrifugal pump, 0.37 KW, 30 – 80 l/min at 20.1 – 12.8 m, single-phase 200 VAC – 240 VAC/50 Hz or 110 VAC – 127 VAC/60 Hz.

Runner made of stainless steel.

• Sump tank capacity: 165 l.
• Small channel: 8 l.
• Flow measurement: volumetric tank, gauged from 0 – 7 l for low flow values and from 0 – 40 l for high flow values.
  Control valve for regulating flow rate.
  Cylindrical graduated cylinder for measuring very low flow rates.
  Open channel, the upper part of which has a small step and whose purpose is to support the different modules during testing.
  Shut-off valve at the base of the volumetric tank for emptying it.
  Quick and easy to exchange the different modules.
• Required elements (Not included):
• FME00-CR. Chronometer.
