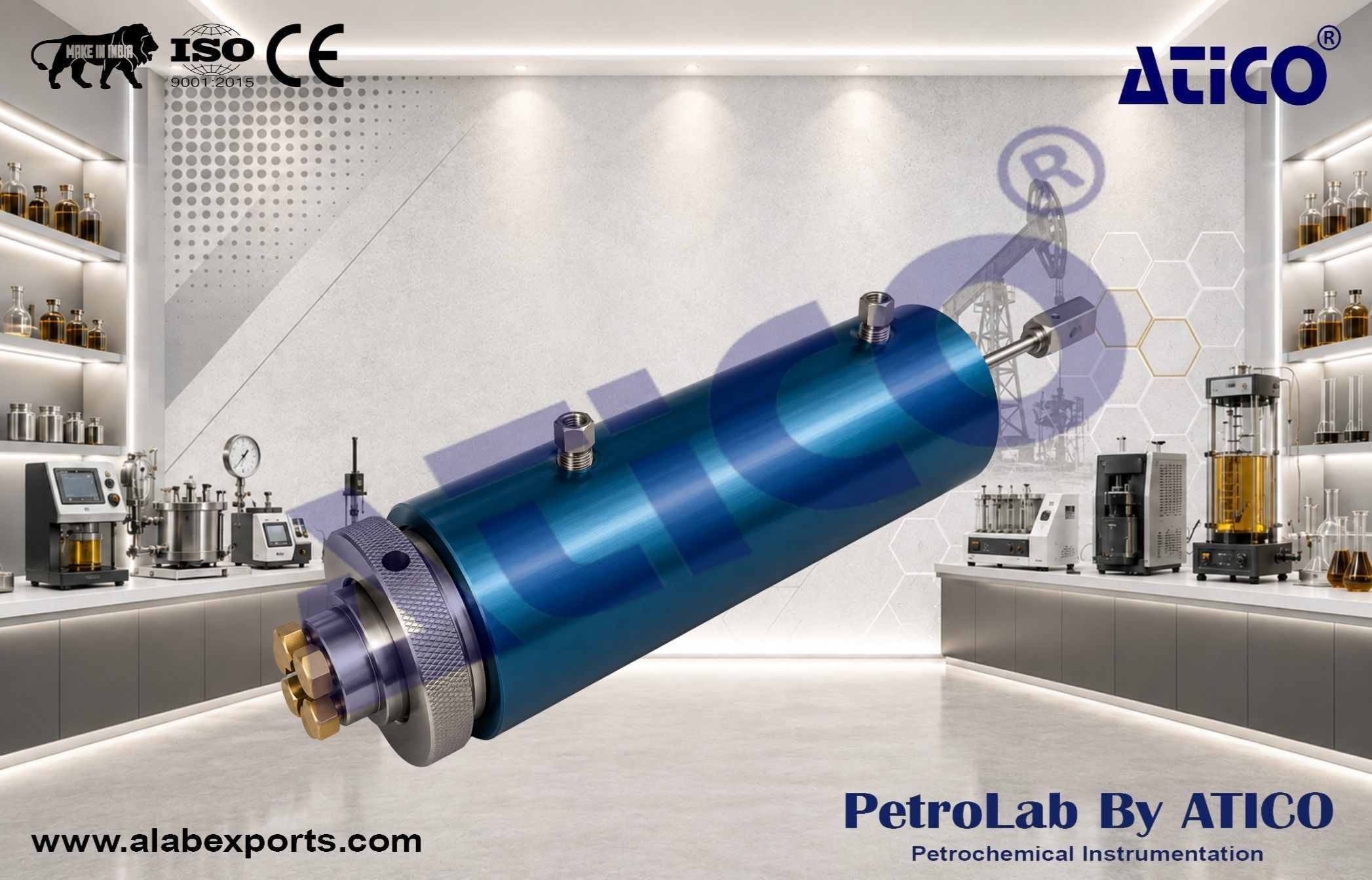

Hydrostatic Core Holder Special core analysis Instruments

The Hydrostatic Core Holder Special core analysis Instruments are standard Hydrostatic type core holders employed in studies involving fluid displacement in porous media. One great advantage of these core holders is the application of both radial and axial (equal) confining pressures. A cylindrical core sample is fitted in a Viton sleeve and mounted onto a fixed platen at one end while at the other end, there is a floating platen through which the fluid passes via a ¼” diameter tubing. This design enables firm contact between the platen and core sample for a wide range of core lengths. To change a core sample, the confining fluid must be drained and the end plug unscrewed by manually rotating it counter-clockwise. This will withdraw the entire assembly: fixed platen, sleeve, core and floating platen. Subsequently the core can be removed from the sleeve. Loading a new core sample is carried out by performing this procedure backwards.

Operating pressure rating :

• 5,000 psi, 10,000 psi, 15,000 psi

Operating temperature :

• up to 150°C

Fitting :

• NPT, Autoclave or HIP

Core diameter :

• Customer specified

Core length :

• Customer specified

Wetted parts :

• Stainless steel, Hastelloy, titanium

Sleeve material :

• Viton

Inlet port :

• As request

Outlet port :

• one

Pressure tap :

• As request
