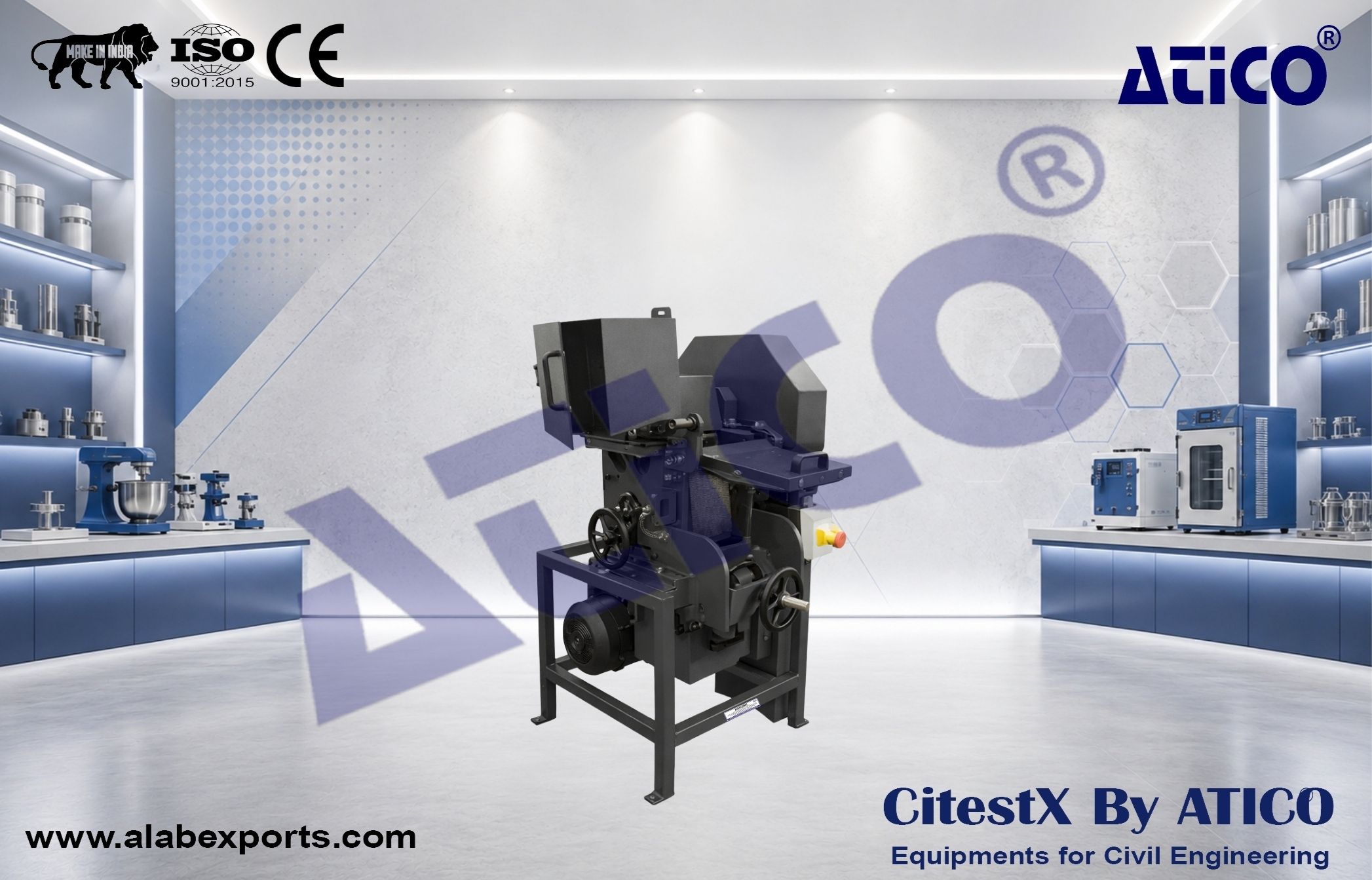

Jaw Crusher( End fineness: 4 mm)

Application :

• Superior Jaw Crusher engineered for rapid reduction of hard and brittle materials. Designed for smaller laboratories and field use such as prospecting.

Construction :

• The Jaw Crusher (End fineness: 4 mm) is a robustly constructed single-toggle type with one fixed jaw plate and one moving jaw plate. It is designed for smaller laboratories or use by prospectors and built for long service life with easily serviceable parts.

Performance :

• Capable of crushing materials up to 85% of the jaw opening (215 mm ° 110 mm)
• Toggle adjustment by means of jacking screw
• Robust and long-wearing construction suitable for remote area operation

Supply & Configuration :

• Free-standing floor-mounted unit
• Motor located at the rear of the main body
• Dust extraction point at the top of the machine
• Hinged inlet hopper
• Removable sample bucket

Adjusting range of jaw outlet :

• 0 to 25 mm

Approximate mass :

• 480 kg (gross)

Dimensions :

• 613(W) ° 650(D) ° 1212(H) mm

Dust extraction point :

• 1

Dust extraction flow :

• 150 litre/s

Electrical requirements (3 phase) :

• 5.5 kW (3 ° 400V / 50 Hz), other voltages available

Jaw inlet :

• 215 ° 110 mm

Max :

• 215 ° 90 mm

Product sizing at minimum adjustment :

• Smaller than 4 mm

Throughput :

• Approx. 1000 kg/h depending on material

Toggle speed :

• 325 rpm

Gap width display :

• Scale

Zero point adjustment :

• Yes

• Quick and easy to clean due to front door access

• Stepless, reproducible gap-setting by hand-wheel

• Easy exchange of jaw plates and side liners

• Modular infeed hopper: removable, with splash back protection, batchloader or dosing plunger

• External control box with start/stop

• End fineness: 4 mm

• Contamination-free crushing because of 4 different grinding tools
