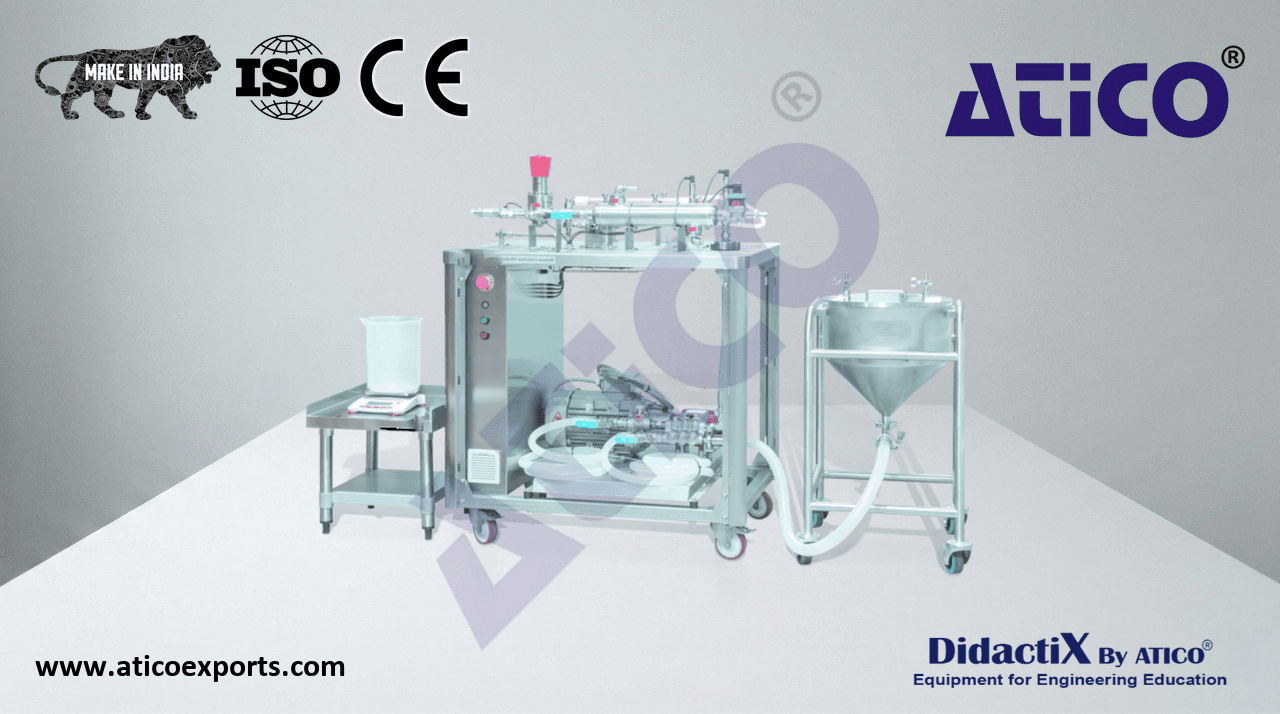

Modular Cross Flow Filtration Deluxe

A pilot-scale cross-flow filtration system designed to operate with a range of membrane module configurations. Can operate with minimal material but still give data useful for process scale-up.

A pilot-scale cross-flow filtration system designed to operate with a range of membrane module configurations. Uses high-pressure piston-recirculation pump to circulate product through filter module of choice. Variable speed triple-piston design minimises pressure pulsation. Learn about Modular Cross Flow Filtration Liquid Foods India for optimal educational outcomes.. Operator can use their own feed vessel or this can be specified.

• Maximum flow rate: 1400 l/hr
• Maximum operating pressure: 50 bar
• Pressure sensors: 0-60 bar
• Mass balance range: 0-6kg
• Minimum test volume without feed vessel option: 15L
• Four membrane module options: Ceramic, Spiral wound, Hollow fibre, Tubular
