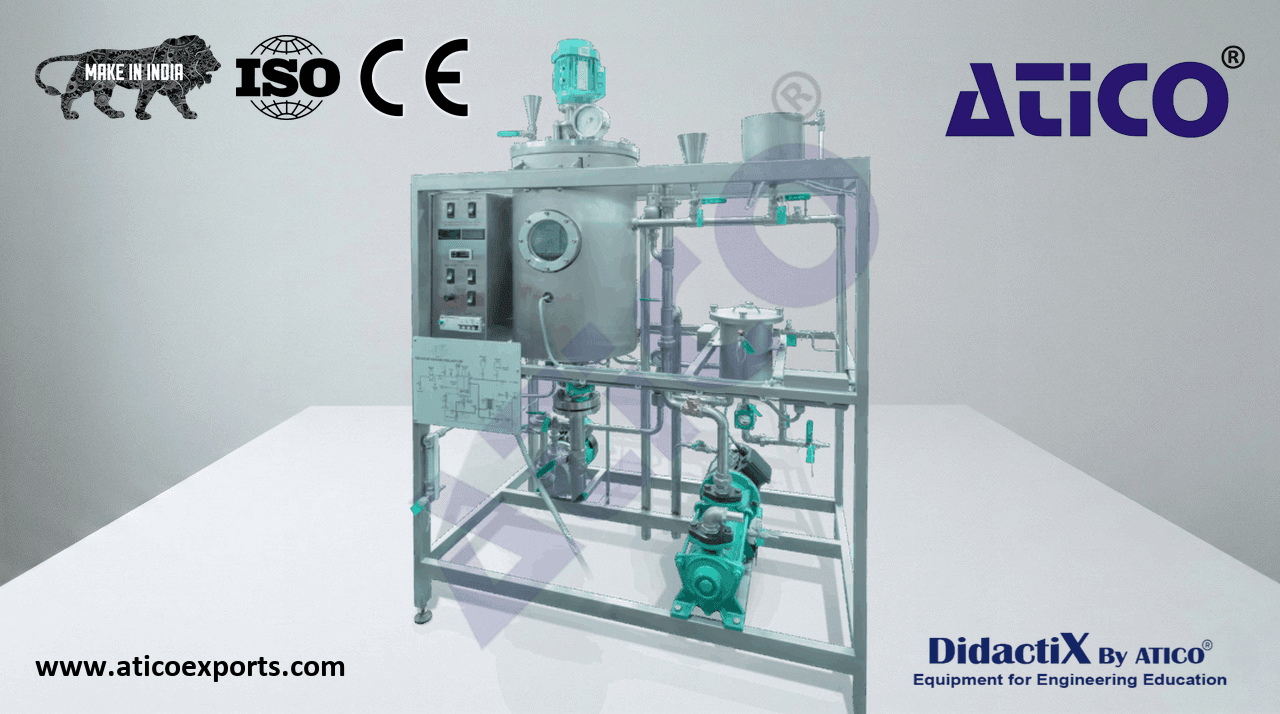

Neutraliser/Washer/Bleacher Deluxe

A floor-standing batch processing system capable of performing all 3 stages on small quantities of crude edible oils and facilitates practical research and development.

A floor-standing batch processing system with main reactor vessel, reagent vessels, filter pump and filter constructed from stainless steel mounted within floor-standing stainless steel framework. Variable speed agitator, electrical heating element, cooling coil and observation port are incorporated in vertical cylindrical reactor vessel designed to process 25 litre batch of oil.

• Reactor vessel material: Stainless steel
• Reactor total volume: 45 litres
• Reactor working volume: 25 litres
• Reactor diameter: 0.30m
• Reactor height: 0.65m
• Heating element: 3.0kW
• Cooling coil area: 0.12m²
• Agitator speed: 250-1800rpm
• Reagent vessel material: Stainless steel
• Reagent vessel working volume: 3 litres
• Reagent vessel diameter: 0.165m
• Reagent vessel height: 0.20m
• Reagent vessel heating element: 1kW
• Earth hopper material: Stainless steel
• Earth hopper volume: 0.3 litre
• Pressure leaf filter material: Stainless steel
• Filter volume: 3.8 litres
• Filter cake capacity: 1 litre
• Filtering area: 0.09m²
• Filter screen: 110 mesh (0.3mm wire)
• Maximum filter pressure: 3.0 bar
• Vacuum pump type: Liquid-ring
• Vacuum pump sealant: Water
• Working vacuum: 75mm Hg (ABS)
• Sealant flow rate: 8 l/m
