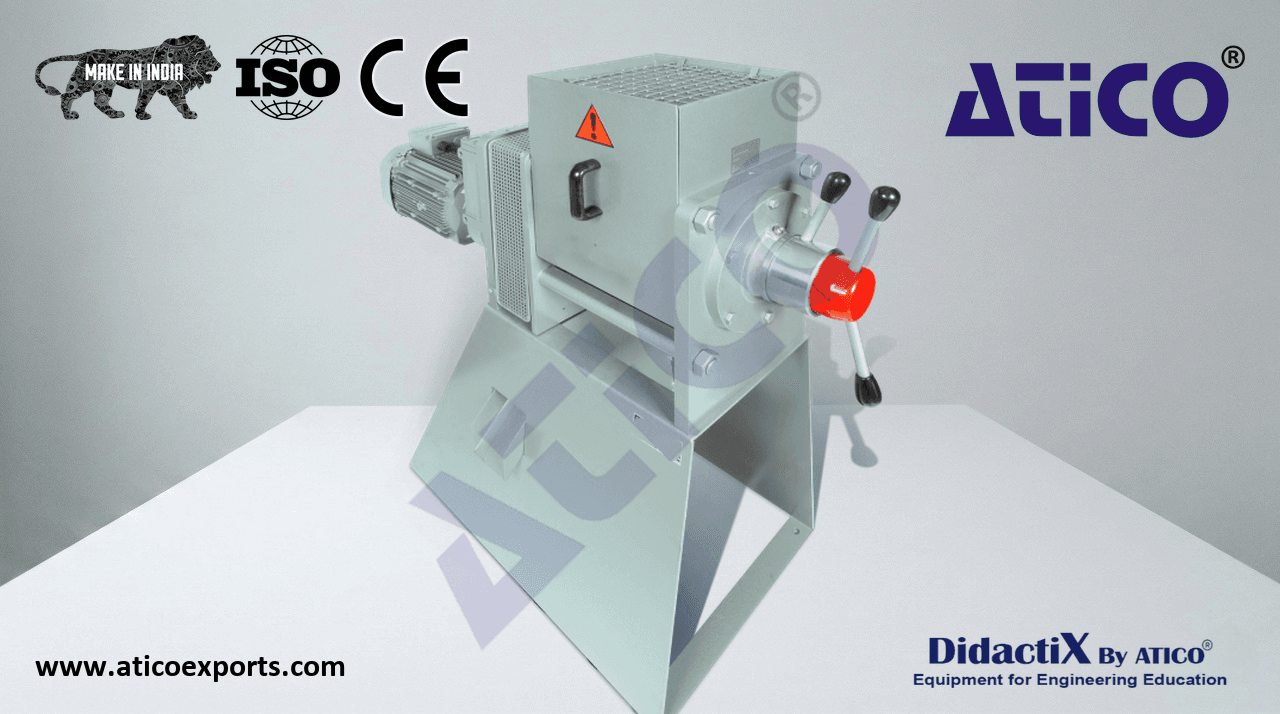

Oil Extraction Screw Press Deluxe

An oil extraction screw press designed for laboratory work. Designed to press seeds, nuts or other fine biomass to extract oil. Additionally forms a cake which can be further purified downstream.

Seed or ground meal is gravity-fed to press from integral feed hopper fitted with manually operated shut-off slide. Thickness of press cake may be varied. Press is driven at discharge end through single-reduction helical gearbox with 4kW, four-pole, three-phase electric motor.

• Screw press barrel constructed from separate cast rings spaced apart by shims
• Bore diameter: 60mm
• Drainage length: 155mm
• Single-piece wormshaft driven at discharge end
• Single-reduction helical gearbox
• Complete with feed hopper, manual feed chute, oil discharge chute and base plate
• Includes one 4kW, four-pole motor, 1,450rpm with starter
