Overburden core saturator Core preparation and Core saturation Instruments

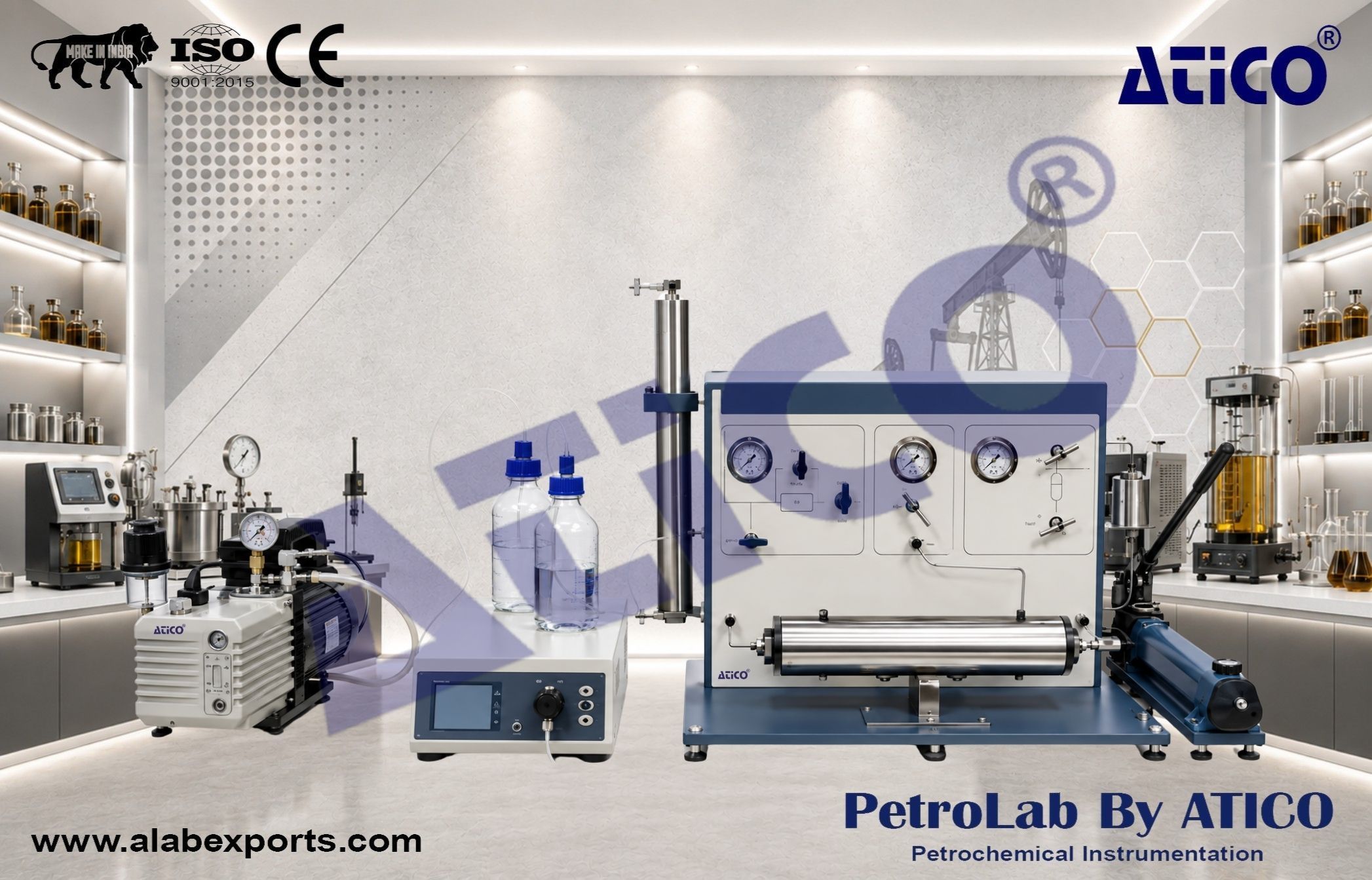

The overburden core saturator enables the end user to obtain remarkable saturation of clean, dry core samples at overburden pressure. Initially, the sample is placed in a Viton sleeve, in a hydrostatic core holder and the latter is evacuated by applying high vacuum for a few hours. Upon request, additional core holders can be added to the assembly. Once vacuum has been established, the saturation liquid, contained in a floating piston accumulator is injected by virtue of a High-Performance Liquid Chromatography (HPLC) pump capable of generating pressures up to 5,000 psi. Finally, a hydraulic manual pump generates a confining pressure on the walls of the Viton sleeve. These conditions should be maintained for at least four hours to guarantee maximum core saturation. This is confirmed by a stable reading on the manometer.

Max confining pressure :

• 5,000 psi

Working temperature :

• ambient

Core diameter :

• 1" and 1.5"

Core length :

• up to 12"

Fluid flow rate :

• up to 10 cc/min

Saturant :

• water, brine, oil or other liquids

Wetted materials :

• 316 Stainless steel (other on request)

Electricals :

• 110-220 VAC 50/60 Hz, 1 ph

Vacuum source :

• 10-3 mbar

Weight :

• 100 kg

• Rapid and efficient saturation
• Overburden pressure conditions
