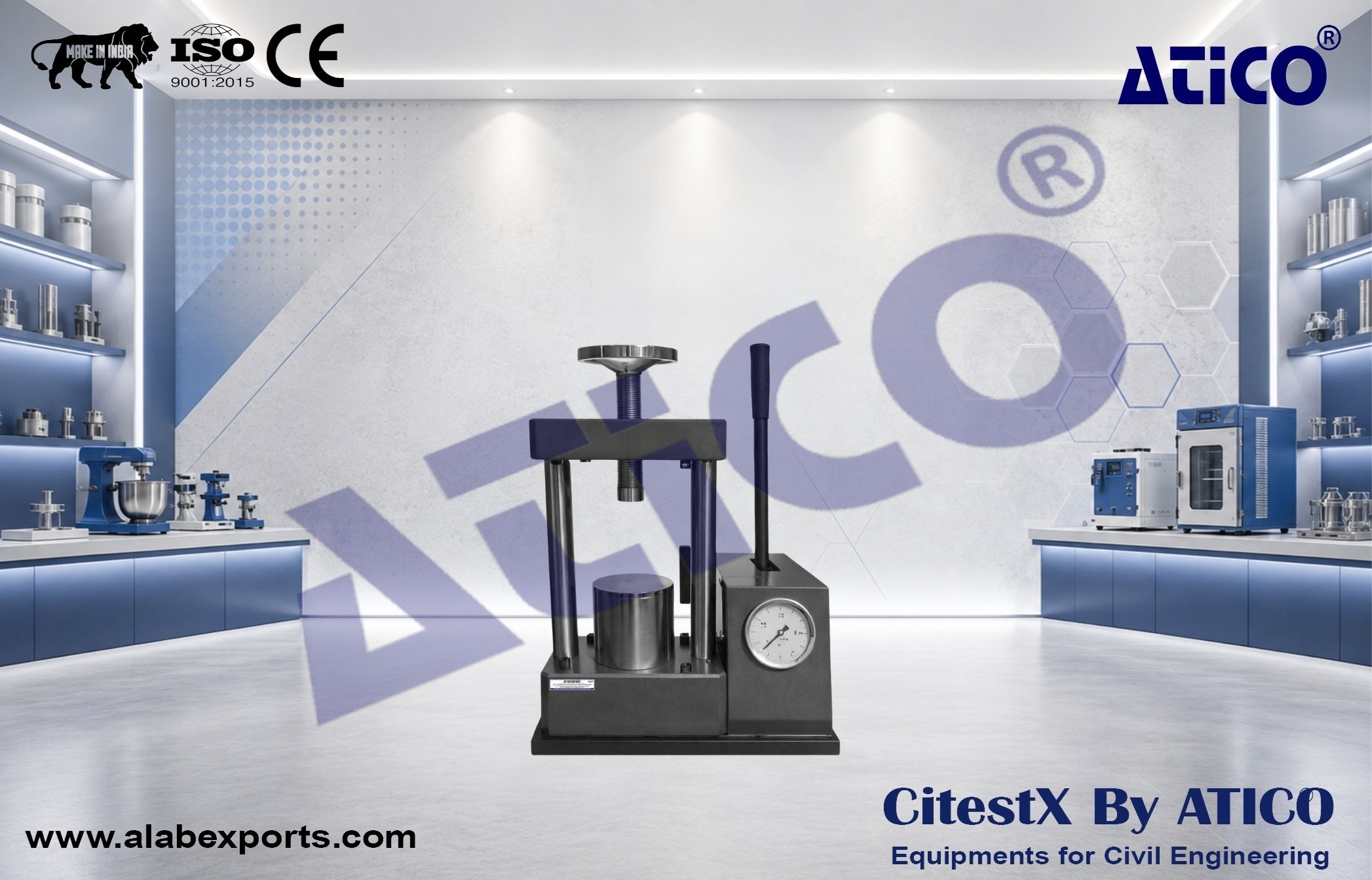

Pellet Press - 1-25 Tons

Manual Hydraulic Pellet Press for the precise and reproducible preparation of powder samples. The press unit is designed for free standing on the laboratory bench. The pressing pressure is freely selectable between 1 and 25 tons using a ergonomically designed lever for creating the required pressure.

Ambient temperature :

• +5C × +40C

Atmospheric humidity :

• 85% RH

Dimensions (W × D × H) :

• 400 × 360 v 300 mm

Display / resolution :

• Analogue, 0.5 t

Max pressure :

• 25 t (250 kN)

Piston :

• 108 mm

Pressure control :

• 0 × 30 t

Press tool :

• 13 / 32 / 40 mm

Weight :

• 49.5 kg

Width between pistons :

• 150 mm
