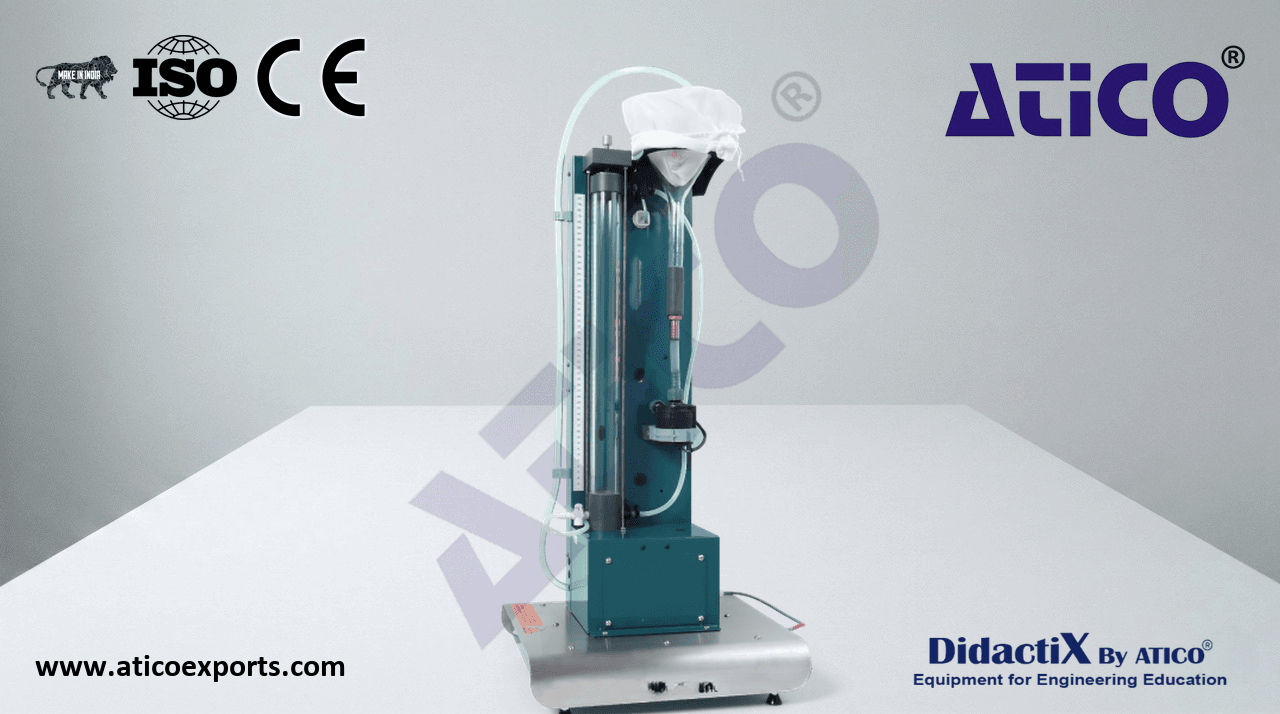

Permeability – Fluidisation Studies Apparatus

Enables permeability, fluidisation and attrition testing to be demonstrated using tap water, and suitable porous granular media. Students can measure and understand the characteristics of flow through a bed of particles and test various media for use in deep bed filters.

A bed of granular medium (usually Ballotini, but other materials can be used, such as sand or anthracite) is placed in a readily demountable tube through which water can be made to flow in either downward through the column to demonstrate permeability or upwards to demonstrate attrition and fluidisation.

• Sample tube I/D: 0.038m
• Sample tube length: 0.507m
• Pump: 24 L/hr
• Flow meter range: 0-3 L/min
• Glass funnel: 1.5L
• Solenoid valves: 2
• Pressure range: 0-5 psi
