Plugging machine laboratory and Oilfield instruments

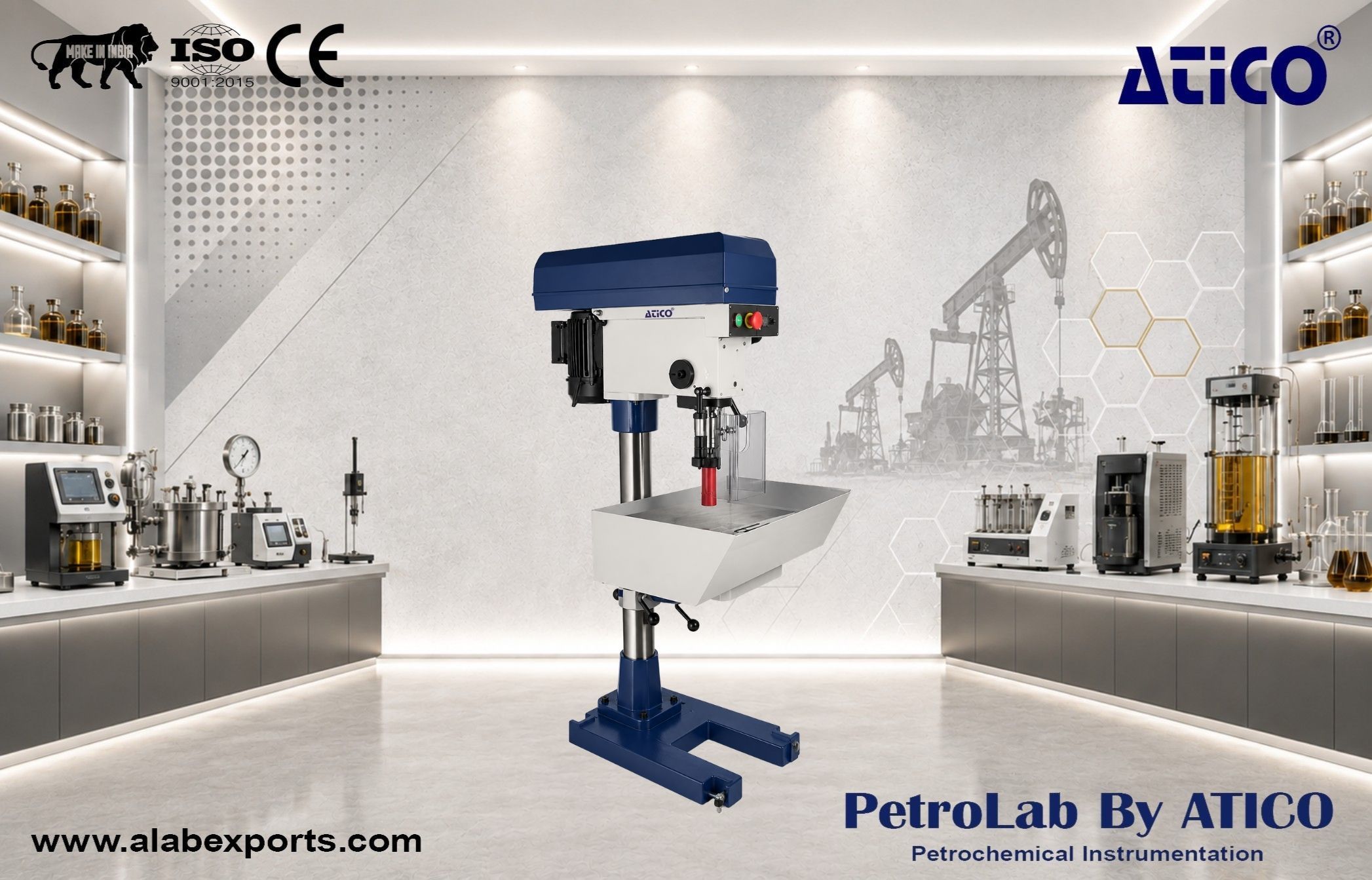

The heavy diamond-tooled drill press is specially designed to deliver various core sample sizes. The standard machine comes with a floor standing drill press, a rotary union, a coolant feeding system, a coolant recovery pan with splash guard and a core clamping vise. The heavy duty fluid swivel connects the coring bits to the drill press while circulating coolant to the bit. The vise assembly is mounted on the pan table and allows the core to be positioned. Various size of coring bits as well as a recirculating coolant system are available.

Coring bit internal diameter :

• 1", 1.5", 2"

Maximum coring depth :

• 5" (12.7 cm)

Drip pan dimension :

• L x W x H: 600 x 300 x 250 mm

Compatible coolant :

• Water and oil

Drill speed :

• Adjustable

Motor power :

• 1500 watts

Electrical :

• 110-220 VAC 1 phase, 50/60 Hz

Weight :

• 150 kg

Volume :

• 500 x 500 x 1800 mm
