Pressure tapped triaxial coreholder Special core analysis Instruments

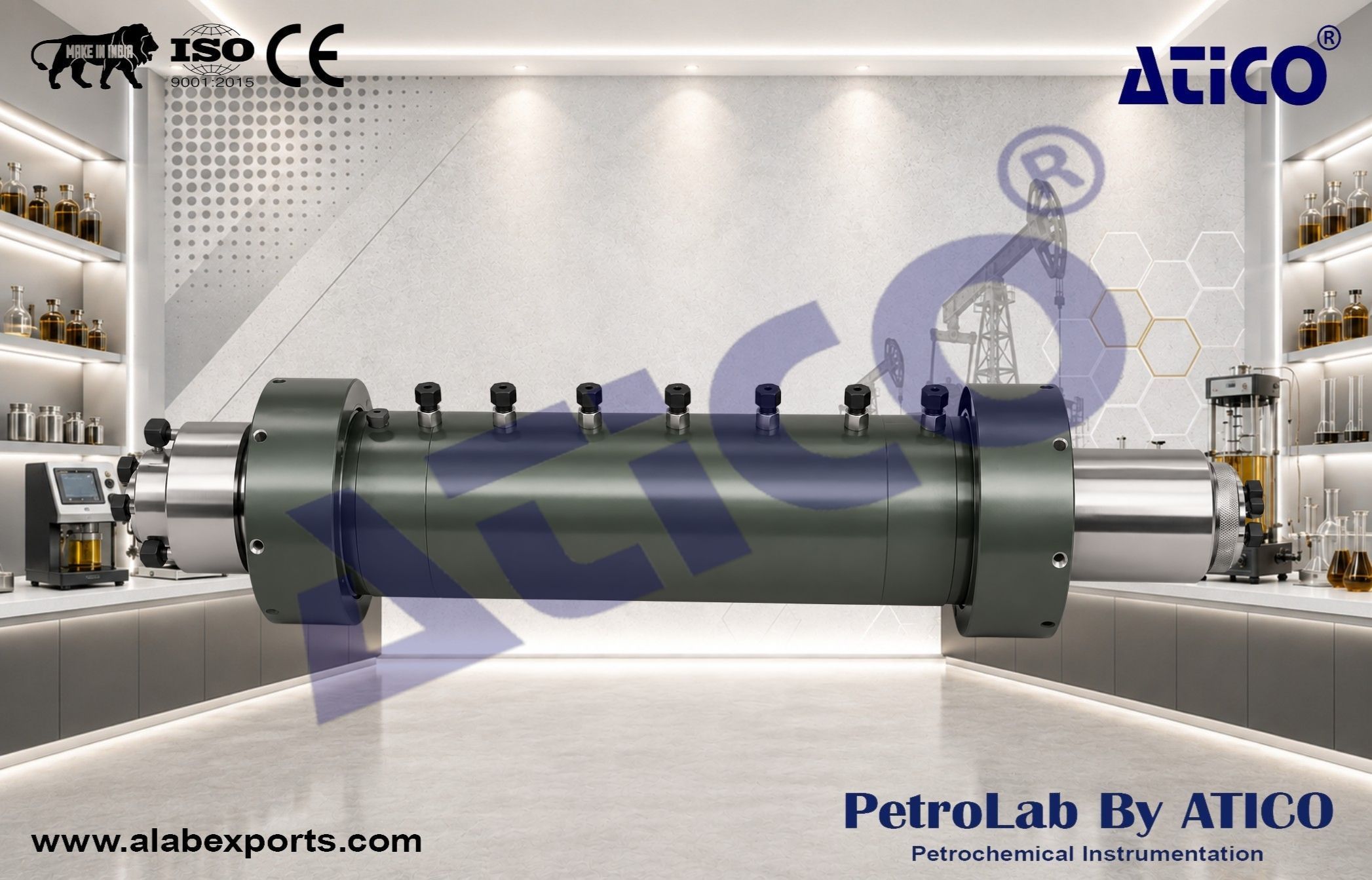

The Pressure tapped triaxial coreholder Special core analysis Instruments are standard triaxial type core holders employed in studies involving fluid displacement in porous media. These core holders incorporate pressure taps molded in the Viton sleeve at specified locations along the longitudinal axis. This great feature permits pressure drop monitoring along the core’s length. Another great advantage of these core holders is the application of independent radial and axial confining pressures; independent axial pressure is applied via a floating distribution plug. An inlet and outlet distribution plug enable fluid injection through the core sample. A convenient characteristic of the PT-TRC series core holder is that the sleeve remains inside the core holder; the core is loaded from one end without the need of filling/draining the confining fluid. By releasing the confining radial and axial pressures and unscrewing the end plug, the core sample can easily be removed without exposure to the hydraulic fluid. The core holder can be configured for Hassler, Hydrostatic or triaxial loading.

Operating pressure rating :

• 5,000 psi, 10,000 psi, 15,000 psi

Operating temperature :

• up to 150°C

Fitting :

• NPT, Autoclave or HIP

Core diameter :

• Customer specified

Core length :

• Customer specified

Number of pressure taps :

• Customer specified

Wetted parts :

• Stainless steel, Hastelloy, titanium

Sleeve material :

• Viton

Inlet port :

• As request

Outlet port :

• As request
