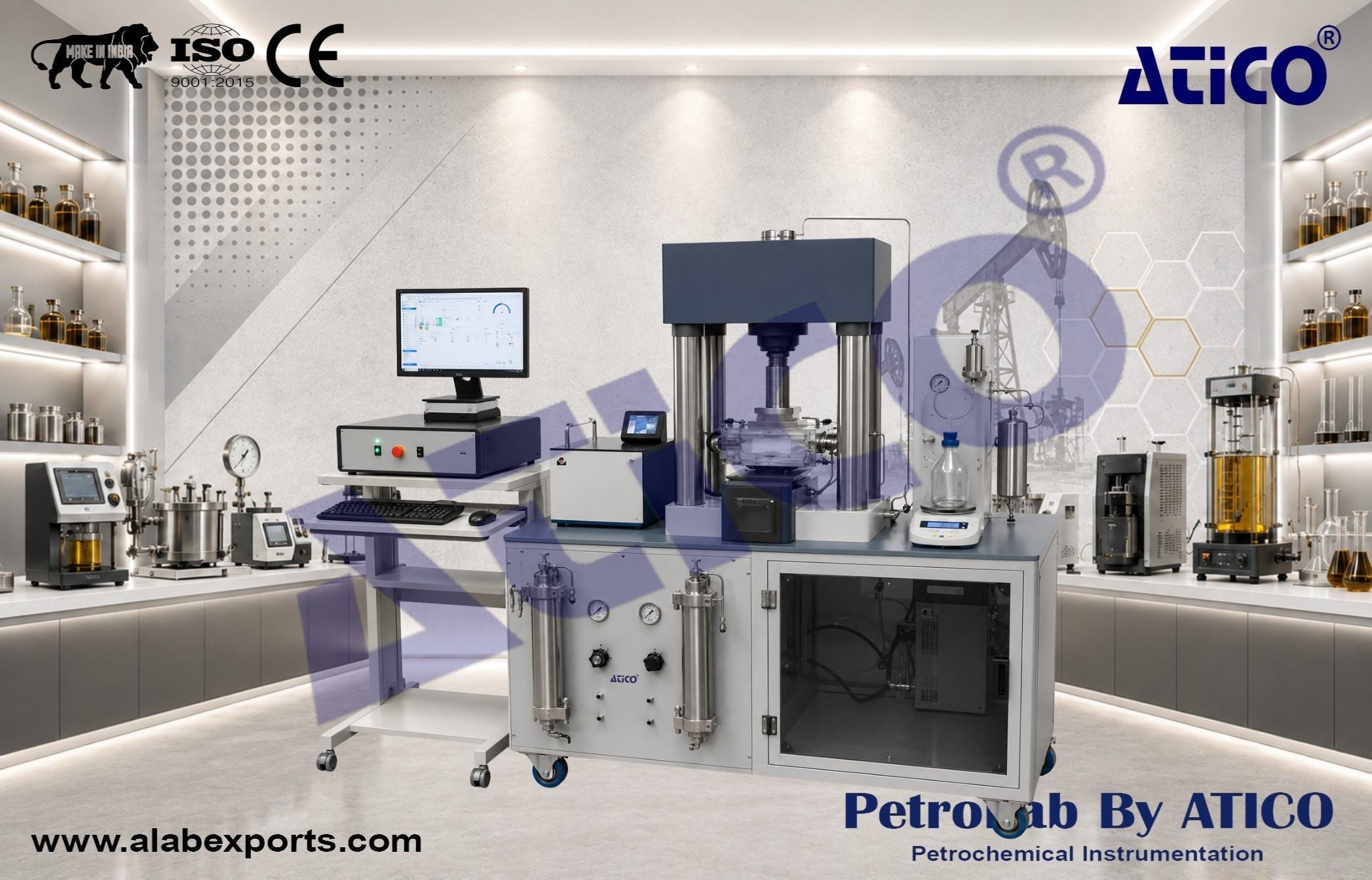

Proppant conductivity system Reservoir stimulation Matrix acidizing Instruments

The Proppant conductivity system Reservoir stimulation Matrix acidizing Instruments evaluates the performance of proppants used in fracture enhancement projects. Using the system, short-term proppant pack conductivity can be measured under various closure pressure and temperature conditions. The experiment consists of displacing a temperature-regulated brine fluid through a proppant pack compressed between two identical, flat, parallel sandstone slabs while measuring the differential pressure and fluid flow rate across the proppant pack. By inputting this data into Darcy’s law, the proppant conductivity can be determined.

The sandstone slabs, driven by a hydraulic press, impose a closure stress that mimics the compressive stress conditions encountered in reservoir formations.

Standards compliance :

• ISO 13503-5, API 61 & 19D

Maximum closure stress :

• 20,000 psi

Maximum pore pressure :

• 1,000 psi

Maximum working temperature :

• 177°C (350°F)

Pack thickness accuracy :

• ±0.001 inches (±0.025 mm)

Specimen length :

• 7"

Specimen width :

• 1.5"

Specimen height :

• 2 × 3/8"

Material :

• Stainless steel

Power supply :

• 220 VAC, 50 or 60 Hz

Nitrogen pressure requirement :

• 2,000 psi

Air pressure requirement :

• 100 psi
