ROCK CELL Hydrates studies system Trainers

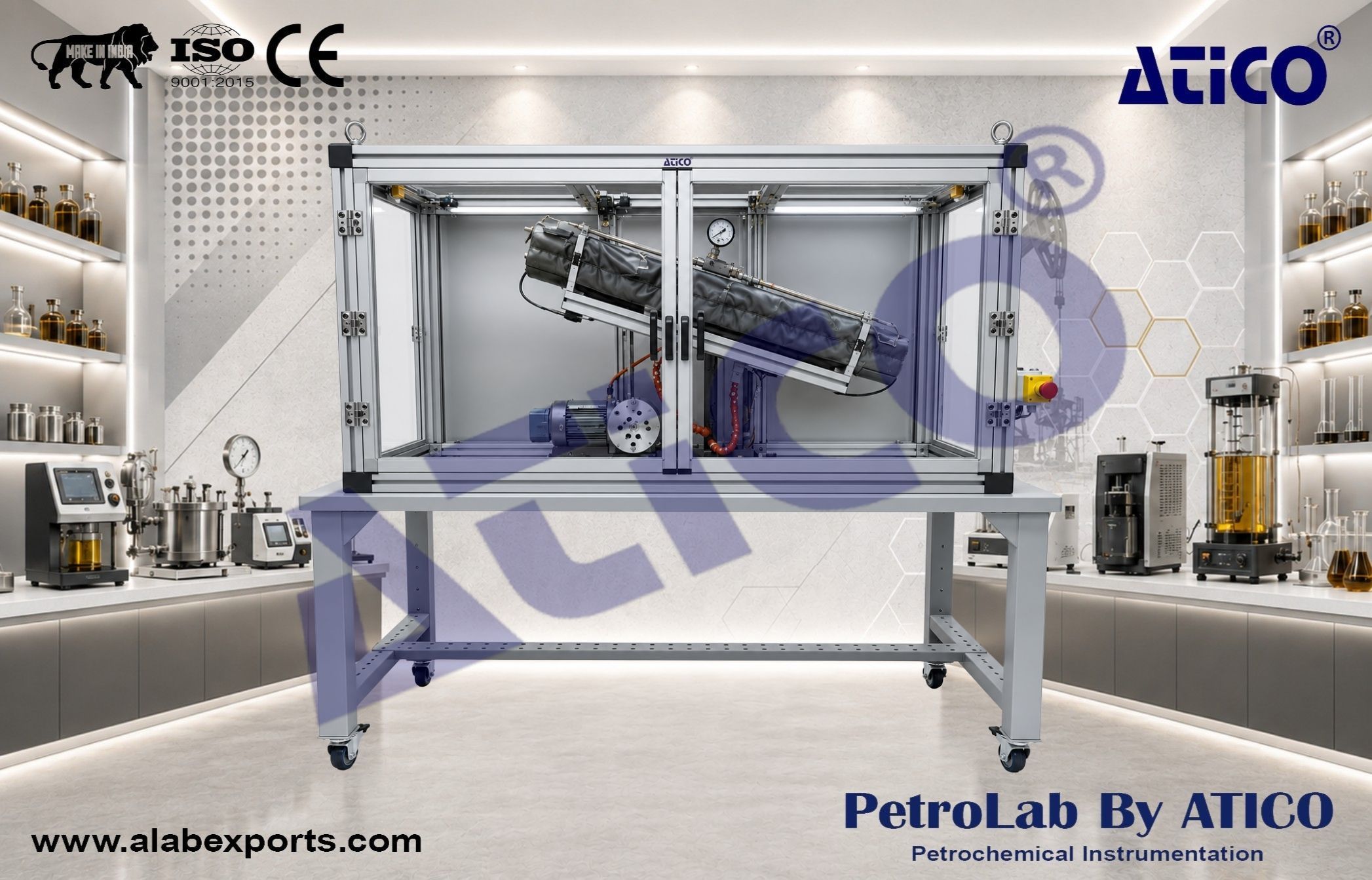

The ROCK CELL Hydrates studies system Trainers allows the evaluation of hydrate formation by monitoring the pressure drop. It allows full observation of the formation, precipitation and dispersion of hydrates. Performances of hydrates inhibitors can also be assessed. The device consists of a long cell covered by a cooling jacket which is connected to a chiller to control the temperature. The cell’s end is equipped with a sapphire window and a camera displays on a monitor the fluids during the test. An endoscope mounted on the opposite end records inside the cell the fluids. The cell is placed on a supporting table to which a rocking movement is applied by an electric motor. The fluids in the cell are mixed and dispersed through the rocking motion, allowing one to achieve the desired flow regime by adjusting the rocking conditions (angle and speed).

Pressure :

• 6,000 psi

Temperature :

• -20°C to 60°C

Cell diameter :

• 50 mm

Cell length :

• 900 mm

Pressure accuracy :

• 0.1% Full Scale

Temperature accuracy :

• ±0.1°C

Wetted parts :

• Hastelloy

Power supply :

• 220 VAC, 50 Hz

• Semi-batch system
• Can consider multiphase pseudo-flow (stratified, stratified-wavy, slug, disp. bubble)
• Temperature control (surface and bulk)
• Pressure control
• Need a small quantity of fluids (order of liter)
• Full visualization of cell contents
• Relatively inexpensive to build and operate
