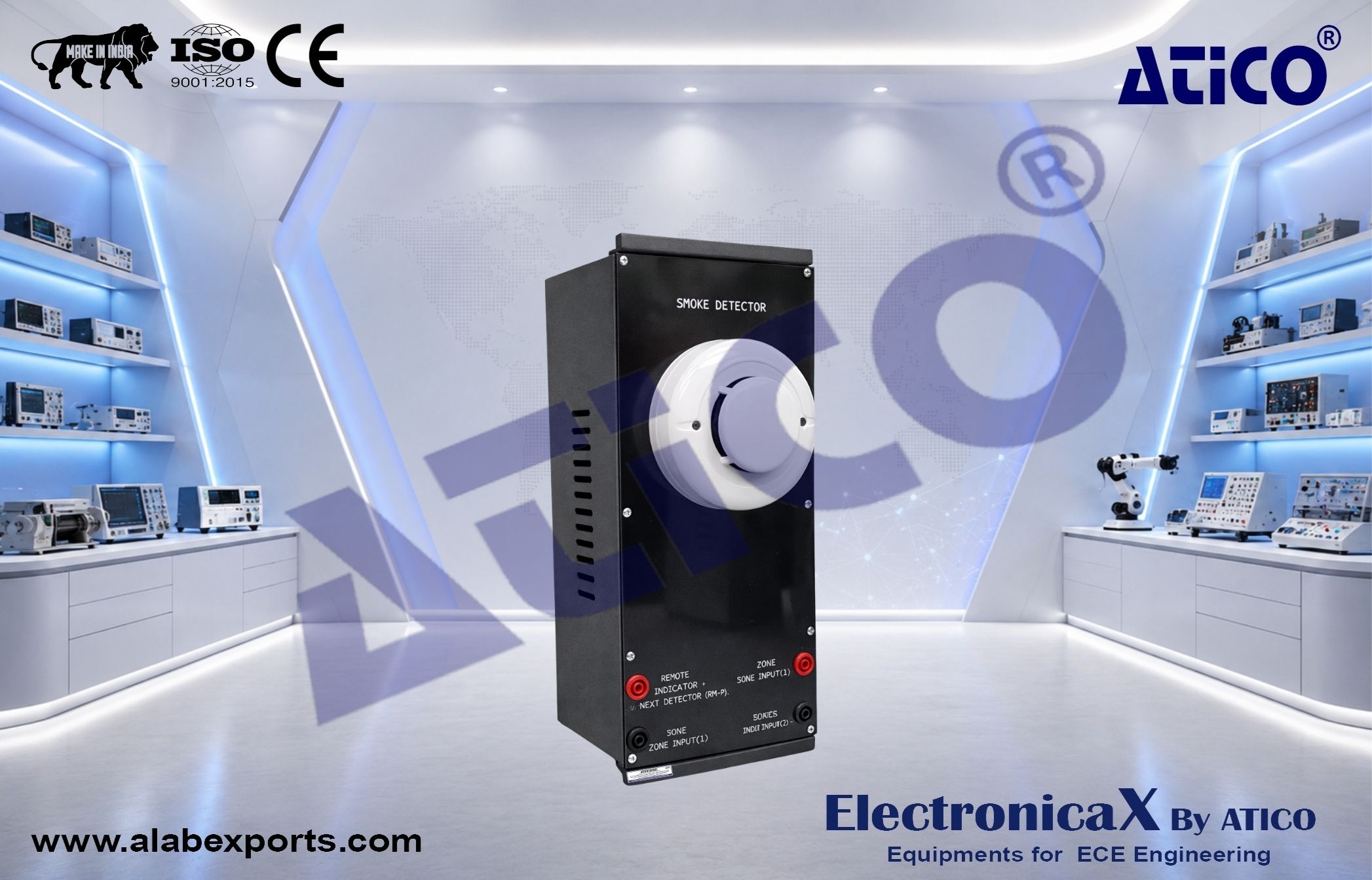

Smoke Detector

Protection and to be used with most conventional fire alarm panel.
Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.

Installation :

• Align detector head alignment mark line with the base–s start alignment mark line.
• Push the detector head into the base while turning it clockwise to secure it in place.
• Do not install the detector head until the area is thoroughly cleaned of construction debris, dusts, etc.
• After all detectors have been installed, apply power to the control panel.

Operating Voltage :

• 9 to 28 VDC Volts Non-polarized

Standby Current :

• –120°A@24VDC

Maximum Alarm Current (LED on) :

• –15mA@24VDC (1K Ohm current-limiting resistance)

Operating Humidity Range :

• –95%RH (40°C°2°C) Relative Humidity, Non-condensing

Operating Temperature Range :

• -10°C to 50°C (14°F to 122°F)

Smoke Alarm Sensitivity :

• 1.06°.26%FT

Fix temperature Alarm :

• 57°C (135°F) AIR

Rate of rise Alarm :

• 7.1°C/5S AIR

Height :

• 48.2 mm installed in Base
