Trimming End face Grinder laboratory and Oilfield instruments

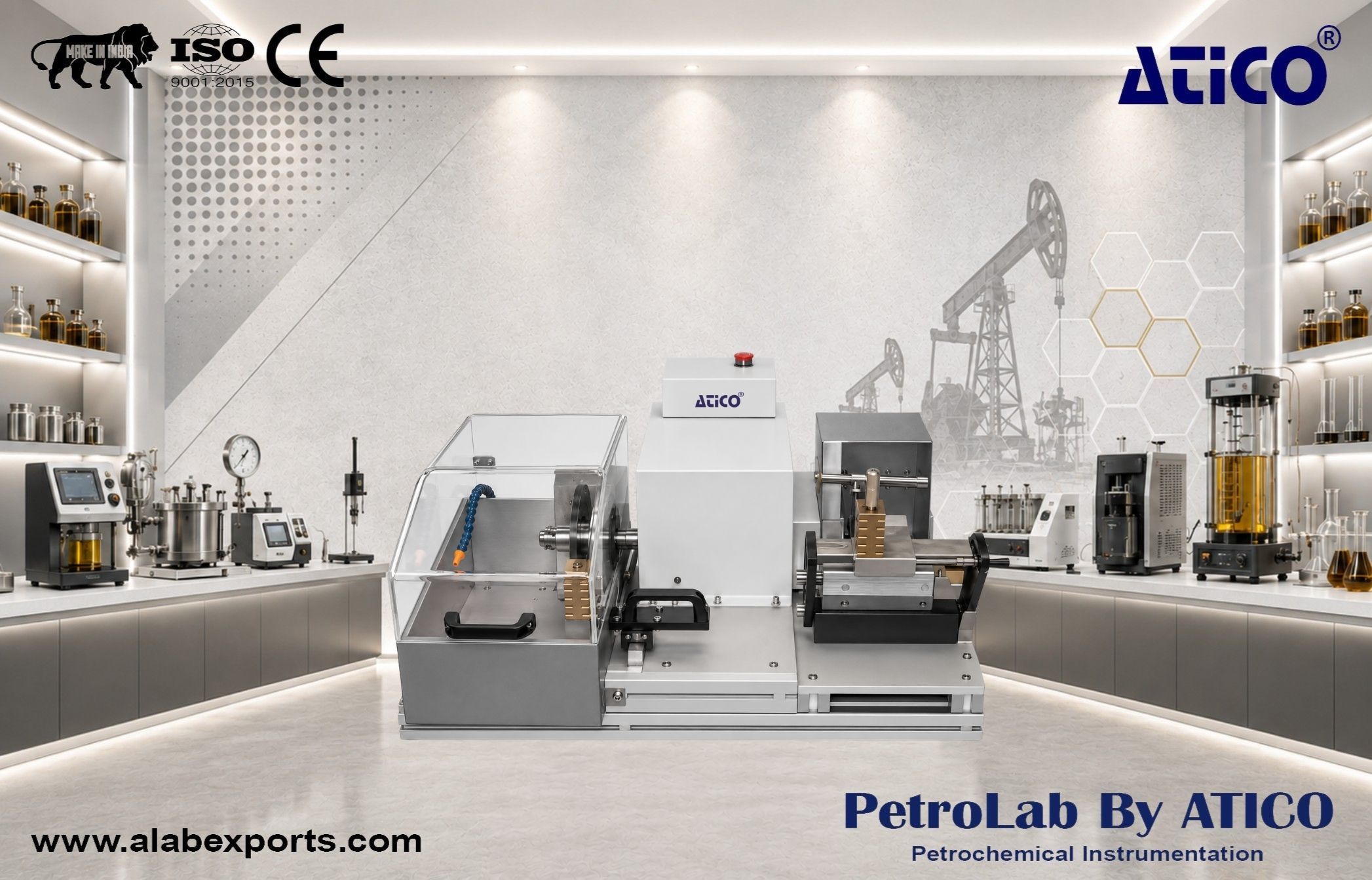

Bench top tool designed to cut core samples to pre-set lengths. The apparatus features an end-face grinder on the other side which yields an extreme precision of 0.002 inch (5/100 mm) of the end face after trimming.

Saw blades diameter :

• 200 mm (8'')

Saw blades thickness :

• 2 mm

Grinding precision :

• +/- 0.001 inch (2.5 / 100 mm)

Grinding wheel diameter :

• 150 mm

Core diameter :

• up to 2''

Core length :

• 2", 3" other upon request

Lubricants :

• Water (usually), Oil

Power supply :

• 220 VAC 1 ph 50 / 60 Hz

Motor power :

• 550 W, 3,000 RPM

Weight :

• 40 kg

Volume :

• 700 x 800 x 600 mm
