Ultra speed centrifuge Special core analysis Instruments

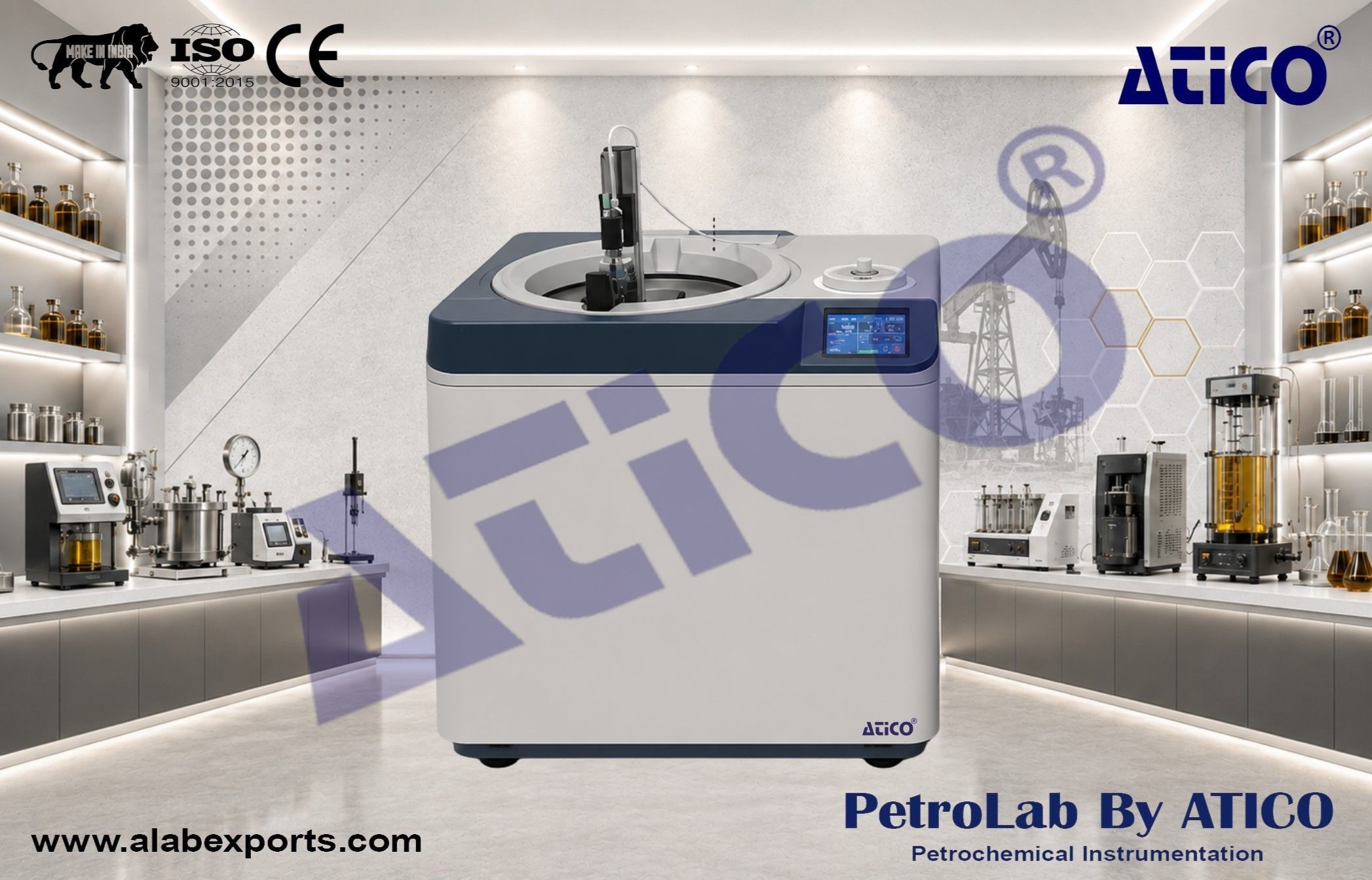

The ultra-speed centrifuge enables rapid determination of capillary pressure characteristics and relative permeability curves on six 1” or 30-mm core samples or three 1.5” core sample simultaneously. It can also be utilized for rapid sample preparation to restore state conditions for subsequent testing in various test equipment. Custom designed sample chambers offer the ability to spin core plug samples at rotational speeds up to 20,000 rpm. It includes a rotor and cells (core holders) which can accommodate either 1”, 30-mm or 1.5” diameter cores. A digital speed control with the ability to ramp speeds at specified intervals and a precision temperature control system is included. An over-temperature setpoint stops the centrifuge if the temperature exceeds the setpoint by a specified value. The system is also equipped with a sensor for rotor imbalance. It is equipped with a digital camera system that allows the user to measure the displaced fluid volumes in each of the cells sequentially.

The ultra-centrifuge allows drainage tests to be performed on consolidated and unconsolidated core samples.

Rotor Models :

• 3 position rotor for 1.5” diameter core samples up to 2” long (max. rotation speed 16,500 rpm with drainage buckets, 15,000 rpm with imbibition buckets)
• 6 position rotor for 1” diameter core samples up to 1” long (max. rotation speed 20,000 rpm with drainage buckets, 16,000 rpm with imbibition buckets)
• 6 position rotor for 30-mm diameter core samples up to 30 mm long (max. rotation speed 18,000 rpm with drainage buckets, 16,000 rpm with imbibition buckets)

Bucket Models :

• Drainage bucket
• Imbibition bucket

Camera and software :

• A 1.5 Megapixel Gigabit camera and a dedicated video acquisition software enables automatic detection of one or two interfaces between immiscible fluids (water, oil, gas) in a calibrated receiving tube (different volumes are available).

Speed :

• from 1000 up to 20,000 RPM

Speed control :

• ± 20 rpm

Speed ramp :

• available

Temperature :

• ambient

Pressure :

• atmospheric

Radius length :

• 91.3 mm (drainage 1.5” diameter samples)
• 166.3 mm (imbibition 1.5” diameter samples)

Power supply :

• 200 to 240 VAC, 50/60 Hz, 20 A

• Simultaneous testing of up to six 1” or 30-mm cores or three 1.5” cores, boosting productivity.
• With speeds up to 20,000 rpm, the system enables rapid capillary pressure and relative permeability measurements while achieving deeper desaturation—ideal for tight, low-permeability rocks.
• Digital camera system enabling automatic and precise measurement of displaced fluid volumes during operation.
• Advanced data acquisition and analysis software that automatically processes curves and calculates saturation and capillary pressure.
• Flexible configuration with multiple rotor and bucket options to test various core sizes and conditions.
