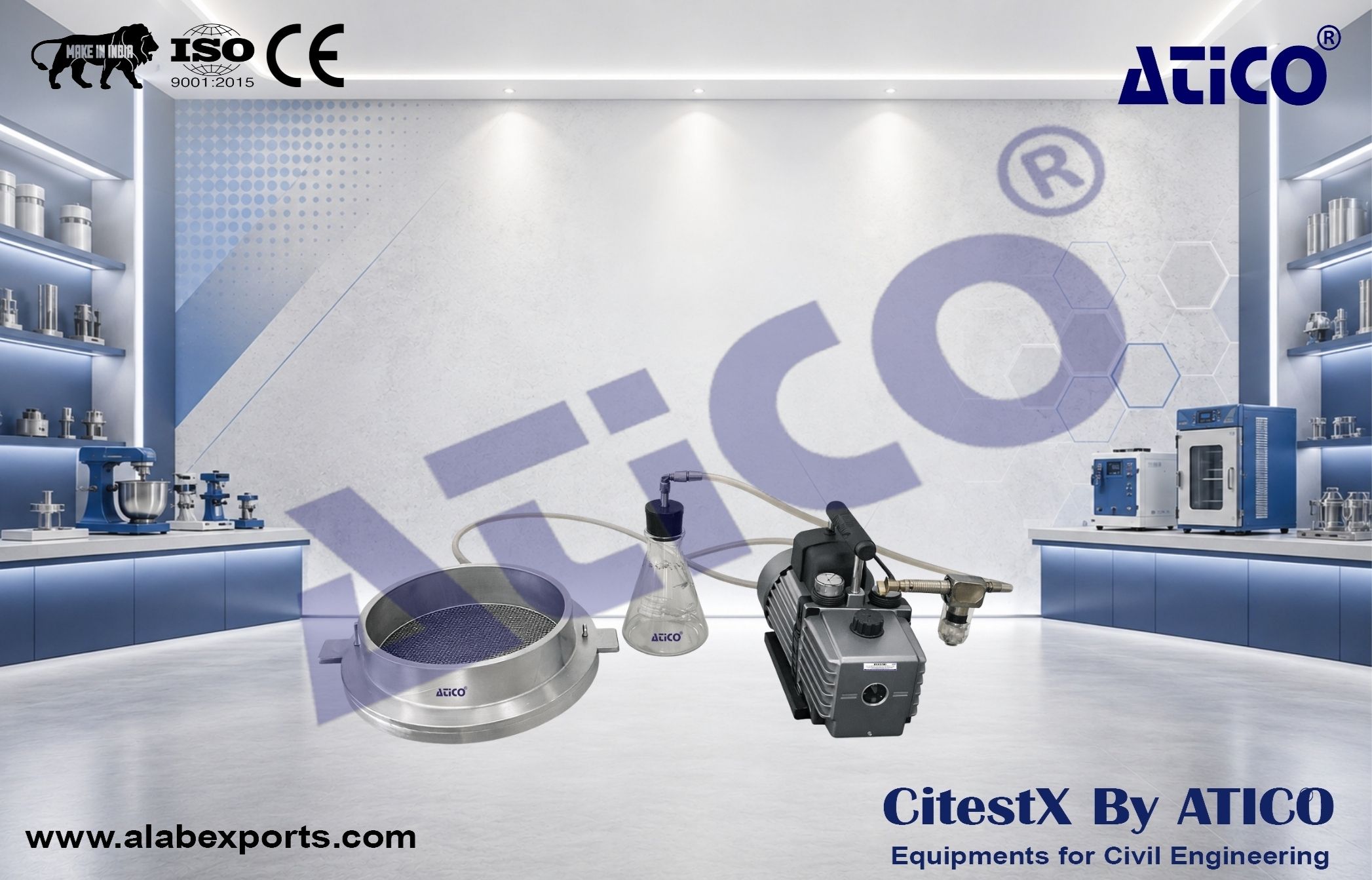

Vacuum Filter

Vacuum Filter supplied complete with 250 x 60 mm two piece stainless steel filter chamber and cover made of steel.

Filter Chamber :

• 250 x 60 mm two piece stainless steel filter chamber and cover made of steel.

Filter Flask :

• 1000 ml Filter Flask (water collection container).

Filter Pads :

• 400 x 400 mm, 40 micron tarpaulin filter pad (pack of 100).
• 20 pieces of 34 mm cloth tarpaulin filter paper pad.
• 2 pieces of 240 mm stainless steel cloth tarpaulin pad made of woven wire screen mesh 1 mm.

Vacuum System :

• Dual Stage Vacuum Pump.
• 1.5 meter Tubing for Vacuum and Vacuum connectors.

Flow Rate :

• 5 CFM / 142 l/min

Ultimate Vacuum :

• Partial Pressure (Pa) 2 Pa, 0.002 mbar

Total Pressure (micron) :

• 15

Power :

• 0.37 kW

Inlet Port (Flare) :

• 1/4" & 3/8"

Oil Capacity :

• 325 ml

Dimensions (mm) :

• 335x140x250

Weight (kg) :

• 11

Power Supply :

• 230 V, 50-60 Hz, 1 ph

Dimensions (mm) :

• Filter chamber and cover - 250 x 60
• Filter Flask, 1000 ml - 207x70x315
• White filter paper, Pack of 100 - 400 x 400
• Cloth tarpaulin filter paper pad, 2 pieces - 340
• Woven tarpaulin pad, 2 pieces - 240
• Vacuum Pump, Dual Stage - 335x140x250
• Tubing for Vacuum 1.5 m

Weight (kg) :

• Vacuum Pump, Dual Stage - 11
