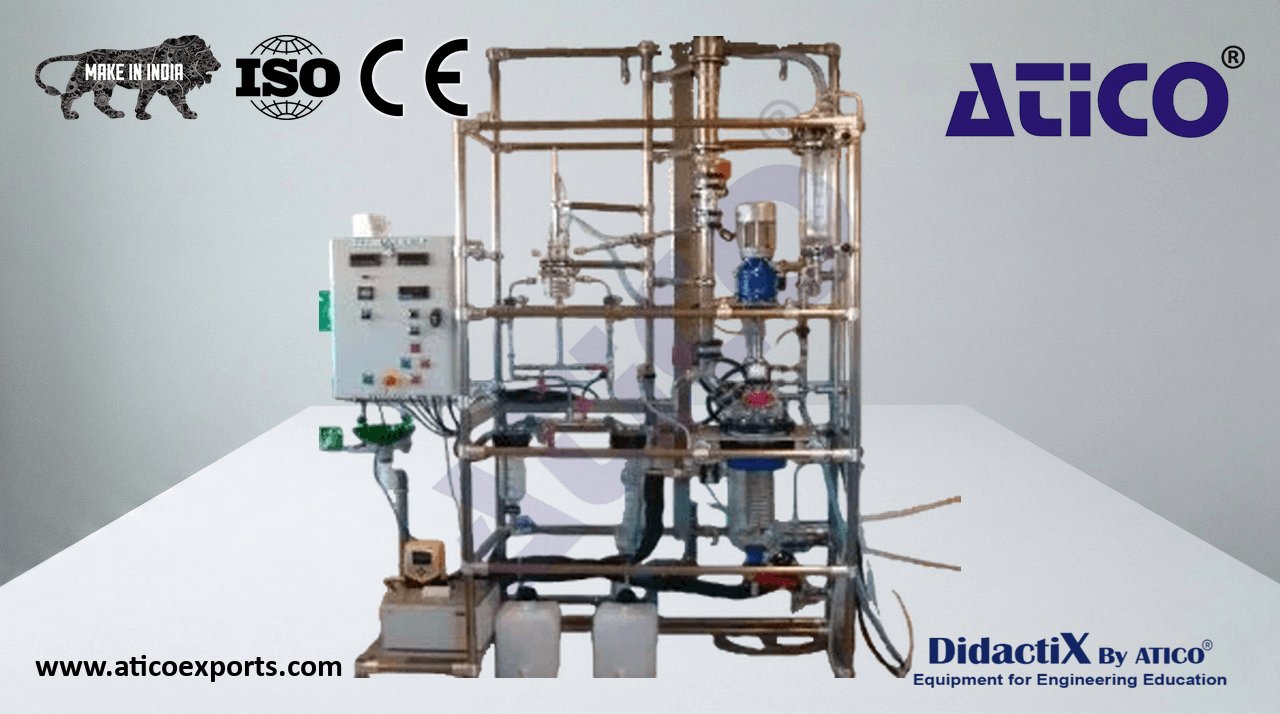

10-Litre Multipurpose Stirred Reactor

Chemical reaction is a fundamental operation in the chemical industry, enabling the production from simple molecules (reactants) of increasingly complex compounds for a growing number of industries (chemical, pharmaceutical, etc. ). Learning Objectives: Simple reactions. Learn about Digital 10-Litre Multipurpose Stirred Reactor for optimal educational outcomes.. Reaction kinetics. Reversible and irreversible reactions. Learn about 10-Litre Multipurpose Stirred Reactor suppliers for optimal educational outcomes.. Evaporation. Crystallisation by evaporation, chemical reaction, or cooling. Learn about 10-Litre Multipurpose Stirred Reactor India for optimal educational outcomes.. Total reflux reactions. Batch distillation. Learn about 10-Litre Multipurpose Stirred Reactor specifications for optimal educational outcomes.. Hetero-azeotrope batch distillation. Mass balance. Learn about 10-Litre Multipurpose Stirred Reactor price for optimal educational outcomes.. Conversion rate. Heat balance. Learn about 10-Litre Multipurpose Stirred Reactor for educational labs for optimal educational outcomes..

At the end of the experiment, the reaction products are recovered after cooling. The reactor can also be used for batch crystallisations.

Two graduated borosilicate glass reactant storage receivers with siphon systems for filling.
Grignard-type cylindrical reactor with steam heating jacket, flush-mounted drain valve, and operator protection.
Variable-speed 316L stainless steel agitation assembly with three-blade pitched turbine.
316L stainless steel reaction mass cooling coil.
Borosilicate glass column in one section with 316L stainless steel packing.
Borosilicate glass column head, DN50, with temperature port, fitted with a timer valve to control the reflux ratio.
Vertical 316L stainless steel condenser with borosilicate glass shell, single-pass with baffles.
316L stainless steel distillate cooler.
Cooled borosilicate glass decanter with manual interface level adjustment; 316L stainless steel valve set for selecting recycle (to reactor via hydraulic seal) or draw-off (to distillate receivers) circuits for both light and heavy phases.
Graduated borosilicate glass distillate receivers.
Steam pressure reduction and regulation circuit with operator protection panel.
Insulated steam heating flexible hoses.
316L stainless steel interconnecting pipework.
Support frame in 304L stainless steel tubing with aluminium fittings.
Condenser cooling water supply with rotameter, flow control valve, and water circulation monitor to stop heating on coolant failure.
Steam supply pressure gauges.
IP55 control and instrumentation cabinet with emergency stop, start/stop buttons, electronic timer for column head valve, reactor temperature controller, agitation speed variator, digital agitation speed indicator, and two digital temperature indicators for five Pt100 Ω probes.
