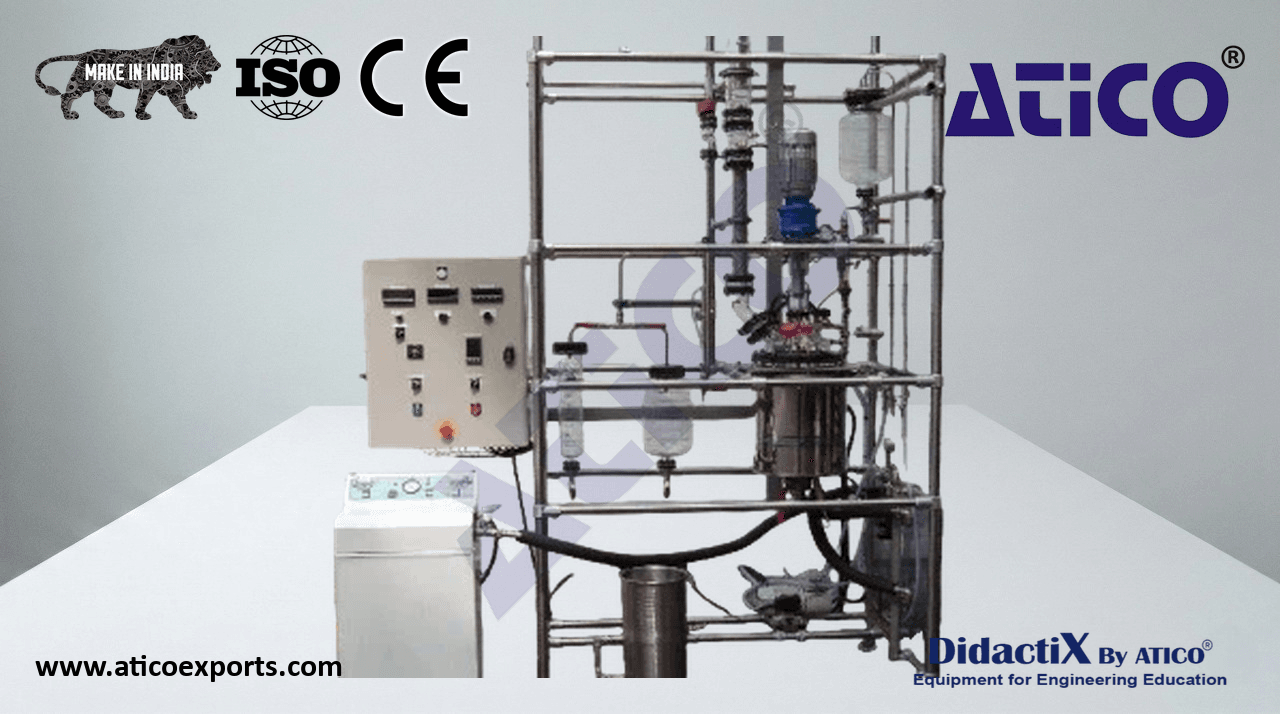

10-Litre Stirred Reactor

Chemical reaction is a fundamental operation in the chemical industry, enabling the production from simple molecules (reactants) of increasingly complex compounds for a growing number of industries (chemical, pharmaceutical, etc. ). Learning Objectives: Simple reactions. Learn about Digital 10-Litre Stirred Reactor for optimal educational outcomes.. Reaction kinetics. Reversible and irreversible reactions. Learn about 10-Litre Stirred Reactor exporters for optimal educational outcomes.. Evaporation. Crystallisation by evaporation, chemical reaction, or cooling. Learn about 10-Litre Stirred Reactor suppliers for optimal educational outcomes.. Total reflux reactions. Batch distillation. Learn about 10-Litre Stirred Reactor manufacturers for optimal educational outcomes.. Mass balance. Conversion rate. Learn about 10-Litre Stirred Reactor for educational labs for optimal educational outcomes.. Heat balance.

The reactor is of the perfectly mixed type and operates in batch mode: the reactant charge is introduced at the start of the experiment all at once or controlled over time. The reactor can also be used for batch crystallisations.

Graduated borosilicate glass reactant storage receiver with siphon system for filling.
Grignard-type cylindrical reactor with steam heating jacket, flush-mounted drain valve, operator protection, and borosilicate glass lid.
Variable-speed 316L stainless steel agitation assembly with three-blade pitched turbine.
316L stainless steel reaction mass cooling coil.
Borosilicate glass column in one section with 316L stainless steel packing.
Borosilicate glass column head with temperature port, fitted with a timer valve to control the reflux ratio.
Vertical 316L stainless steel condenser with borosilicate glass shell.
316L stainless steel distillate cooler.
Graduated borosilicate glass distillate receivers.
Steam pressure reduction and regulation circuit with operator protection panel.
Insulated steam heating flexible hoses.
316L stainless steel interconnecting pipework.
Support frame in 304L stainless steel tubing with aluminium fittings.
Condenser cooling water supply with rotameter, flow control valve, and water circulation monitor to stop heating on coolant failure.
Steam supply pressure gauge.
IP55 control and instrumentation cabinet with emergency stop, start/stop buttons, electronic timer for column head valve, reactor temperature controller, agitation speed variator, digital agitation speed indicator, and two digital temperature indicators for five Pt100 Ω probes.
