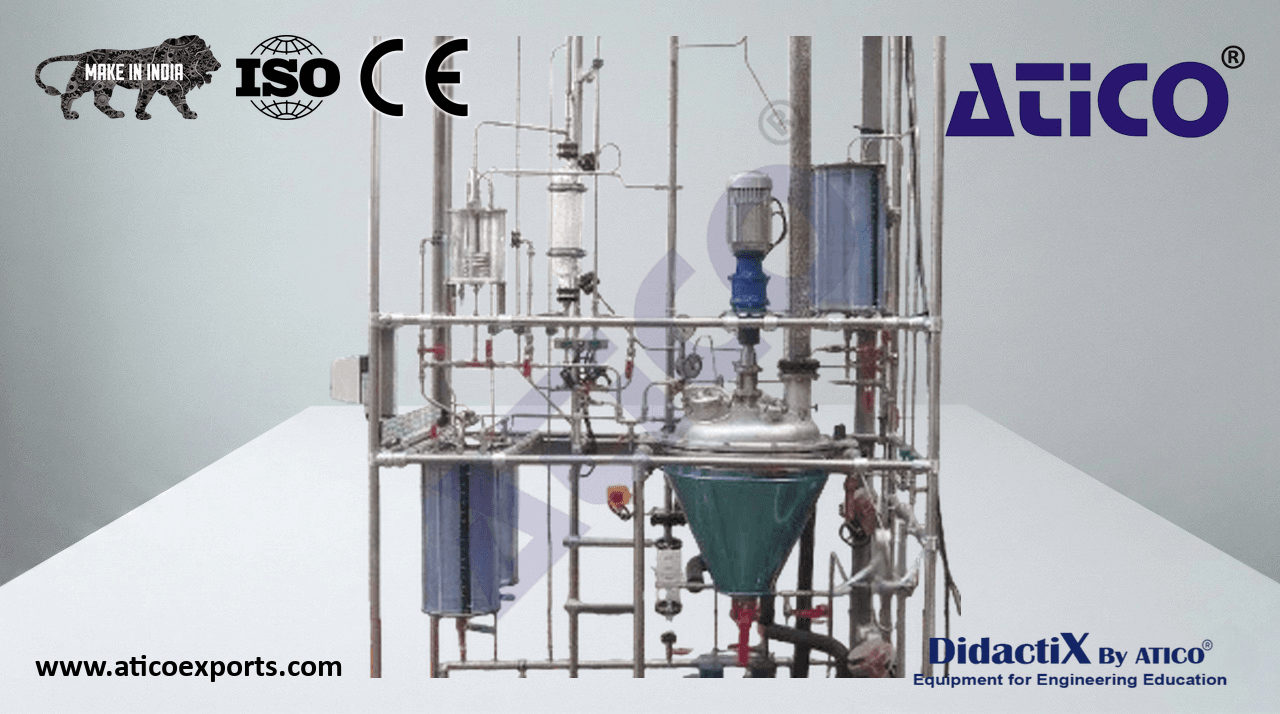

50-Litre Multipurpose Synthesis Unit

Chemical reaction is a fundamental operation in the chemical industry, enabling the production from simple molecules (reactants) of increasingly complex compounds for a growing number of industries (chemical, pharmaceutical, etc. ). Learning Objectives: Simple reactions. Learn about Digital 50-Litre Multipurpose Synthesis Unit for optimal educational outcomes.. Evaporation. Crystallisation by evaporation, chemical reaction, or cooling. Learn about 50-Litre Multipurpose Synthesis Unit exporters for optimal educational outcomes.. Total reflux reactions. Batch distillation. Learn about 50-Litre Multipurpose Synthesis Unit India for optimal educational outcomes.. Hetero-azeotrope batch distillation. Batch distillation under reduced pressure. Learn about 50-Litre Multipurpose Synthesis Unit suppliers for optimal educational outcomes.. Mass balance. Yields. Learn about 50-Litre Multipurpose Synthesis Unit price for optimal educational outcomes.. Heat balance.

Graduated borosilicate glass reactant storage receiver with siphon filling system. Truncated-cone reactor: 316L stainless steel vessel with steam heating jacket, flush-mounted drain valve, operator protection panel, and 316L stainless steel lid.

Graduated borosilicate glass reactant storage receiver with siphon system for filling.
Truncated-cone reactor: 316L stainless steel vessel with steam heating jacket, flush-mounted drain valve, operator protection panel, and 316L stainless steel lid.
Fixed-speed 316L stainless steel agitation assembly with V-anchor impeller.
316L stainless steel column, DN100, in one 1200 mm section with 316L stainless steel multiknit packing.
Inclined multitubular condenser.
Cooled borosilicate glass decanter with manual interface level adjustment.
Graduated borosilicate glass distillate receivers.
Steam pressure reduction and regulation circuit with operator protection panel.
316L stainless steel pipework.
316L stainless steel reduced-pressure piping for sub-assemblies on the common manifold.
Borosilicate glass vacuum trap.
316L stainless steel vent piping for sub-assemblies on the common manifold to central extraction.
Support frame in 304L stainless steel tubing with aluminium fittings.
Condenser cooling water supply with rotameter.
Reactor cooling water supply with rotameter and flow control valve.
Column pressure drop measurement via U-tube differential manometer.
Steam supply pressure gauges.
Feed flow measurement via rotameter.
Reflux flow measurement via rotameter.
Distillate flow measurement via rotameter.
Reactor pressure gauges.
IP55 control and instrumentation cabinet with emergency stop, start/stop buttons, and digital temperature indicator for six Pt100 Ω probes.
