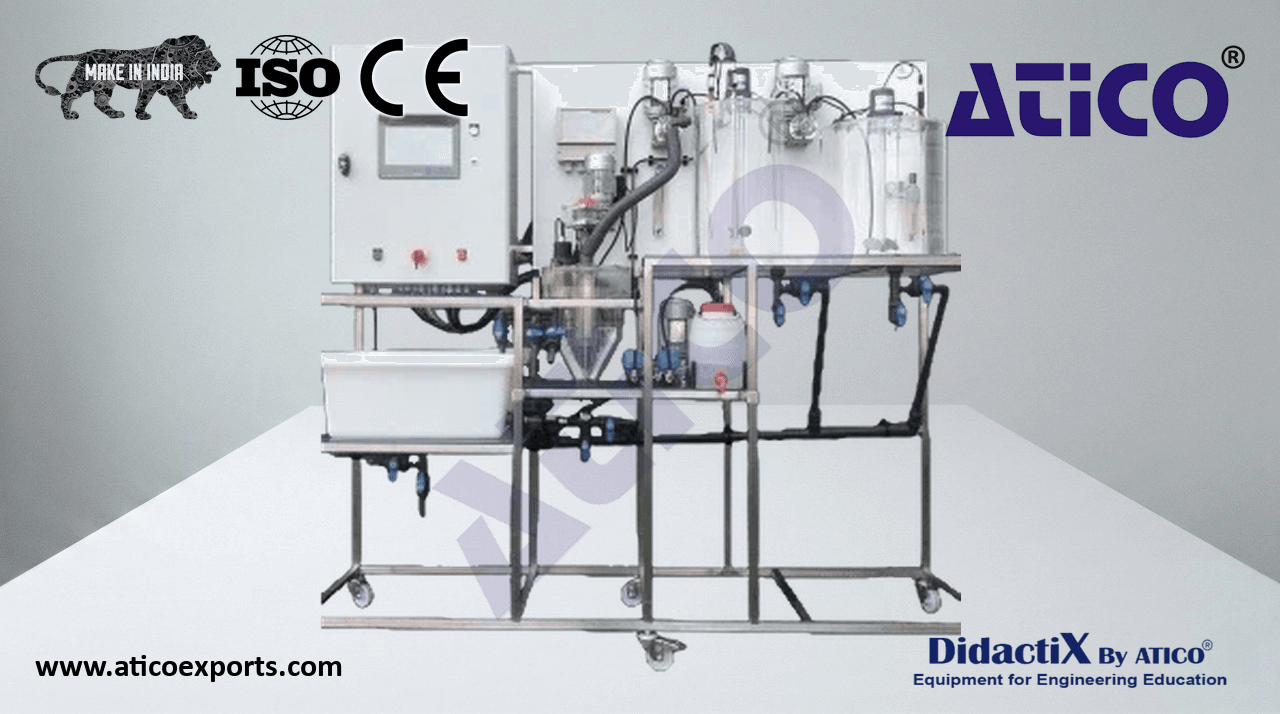

Activated Sludge Wastewater Treatment Pilot

This pilot presents the process for eliminating carbonaceous, nitrogenous, and phosphorous pollution by microbiological means. It operates by contacting the water to be treated with a bacterial floc in the presence of O₂, followed by a floc separation phase. This is an 'activated sludge' treatment process. Learn about Portable Activated Sludge Wastewater Treatment Pilot for optimal educational outcomes.. Educational Objectives: Achieve maximum purification efficiency by varying: mass and volumetric load, sludge age, biofloculation quality, aeration.

Composition:

• Feed tank with lid, on casters
• Aeration basin with two overflow levels and lid
• Variable-speed stirrer with display
• Aeration assembly with ceramic air diffuser
• Air compressor and air flow meter
• Variable-flow peristaltic substrate feed pump on sequencer, with flow meter
• Conical-bottom decantation basin
• Dissolved oxygen measurement probe and transmitter
• Threshold aeration regulation controlled by dissolved oxygen measurement
• Combined pH/Redox measurement probe and transmitter
• Control cabinet with on/off commands for pump, compressor, and stirrer; oxygen sensor transmitter and pH/Redox transmitter
• PVC connections; stainless steel chassis with aluminum clamping nuts

Options:

1. Secondary decantation tank (recommended for use of treated water in a potabilization chain)

A feed tank with lid and on casters
An aeration basin with two overflow levels and lid
A variable-speed stirrer with display
An aeration assembly with a ceramic air diffuser
An air compressor and its air flow meter
A variable-flow peristaltic pump for substrate feed on sequencer, with flow meter
A conical-bottom decantation basin
A dissolved oxygen measurement probe and transmitter
Threshold aeration regulation controlled by dissolved oxygen measurement
A combined pH/Redox measurement probe and transmitter
A control cabinet grouping on/off commands for pump, compressor, and stirrer; oxygen sensor transmitter and pH/Redox transmitter
PVC connections; stainless steel chassis with aluminum clamping nuts
