Advanced Dissectible and Configurable Electrical Machines

The application of Advanced Dissectible and Configurable Electrical Machines, is a set of configurable electrical machines designed for the study of the fundamental principles of electrical machines.

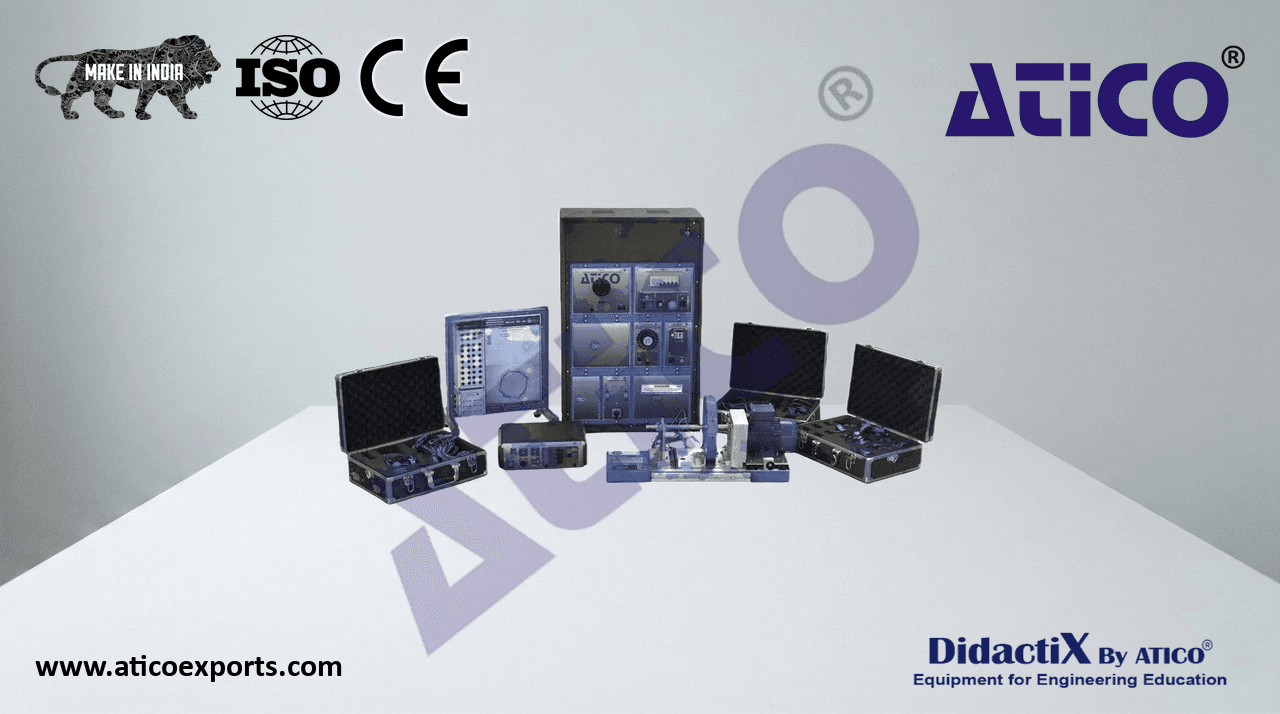

ATENG 11170 — Advanced Dissectible and Configurable Electrical Machines

• The “ATENG 11170” included following elements:
  AEL-EMT-KIT/B. Base Unit and Common Modules.
• It is formed by:
• Frame.
• Support ring.
• Bearings.
• Shaft.
• Axle bearings.
• Other parts.
• BRLA. Compass.

BRLA

• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
• Three-phase supply hose with IP44 3PN+E 32 A 400 V connecting plug.
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  N-ALI01
  Emergency stop push-button.
• N-ARR12. Direct Starter Module.
• Nominal voltage: 400 VAC.
  Three input terminals for power supply connection.
  Six output terminals for motor connection.
• Maximum contacts current: 10 A.
• Two ON/OFF switches:
• 0: Open circuit.
• Y: Closed circuit. N-ARR12
• TECNEL/TM. Hand Tachometer.
  Two AA batteries.
  Three positions switch to choice the measurement method.
  Speed recording push button.
  Speed measurement push button.
  Disassemble pieces for different shafts.
  Speed digital display.

TECNEL/TM

AEL-EMT-KIT/AS. AC Asynchronous Induction Motors.

• It includes:
• Squirrel cage rotor.
  This element consists of a set of circular ferromagnetic sheets that make up the rotor of the induction machine. The squirrel cage,
  where electrical currents are induced, is inside.
• Crosspiece.
  Ferromagnetic element designed to distribute the magnetic fields of the machine stator in areas of minor reluctance, being able
  to simulate the behavior of an industrial reluctance motor.
• Stator.
  Slotted mechanical ferromagnetic element. Its aim is to hold the stator windings of the squirrel cage induction motor.
• Induction coils.
  These coils generate the rotating magnetic field of the three-phase induction motor, which can be configured to generate 2 or 4
  poles.
• Required elements (Not included):
• N-VVCA/M. AC Motors Speed Controller (Intermediate option).
  ON / OFF Switch.
• Supply voltage: 230 VAC.
• Nominal power: 750 W.
• PWM output voltage connections:
• Three-phases: 230 VAC.
  10 K, potentiometer for the induction motor control speed. N-VVCA/M
  Setting and visualization display of the machine parameters.
  7

Specifications
