AEROFOIL WITH TAPPINGS

Allows students to investigate the pressure distribution around a two-dimensional aerofoil that has 12 tapping points along the chord.

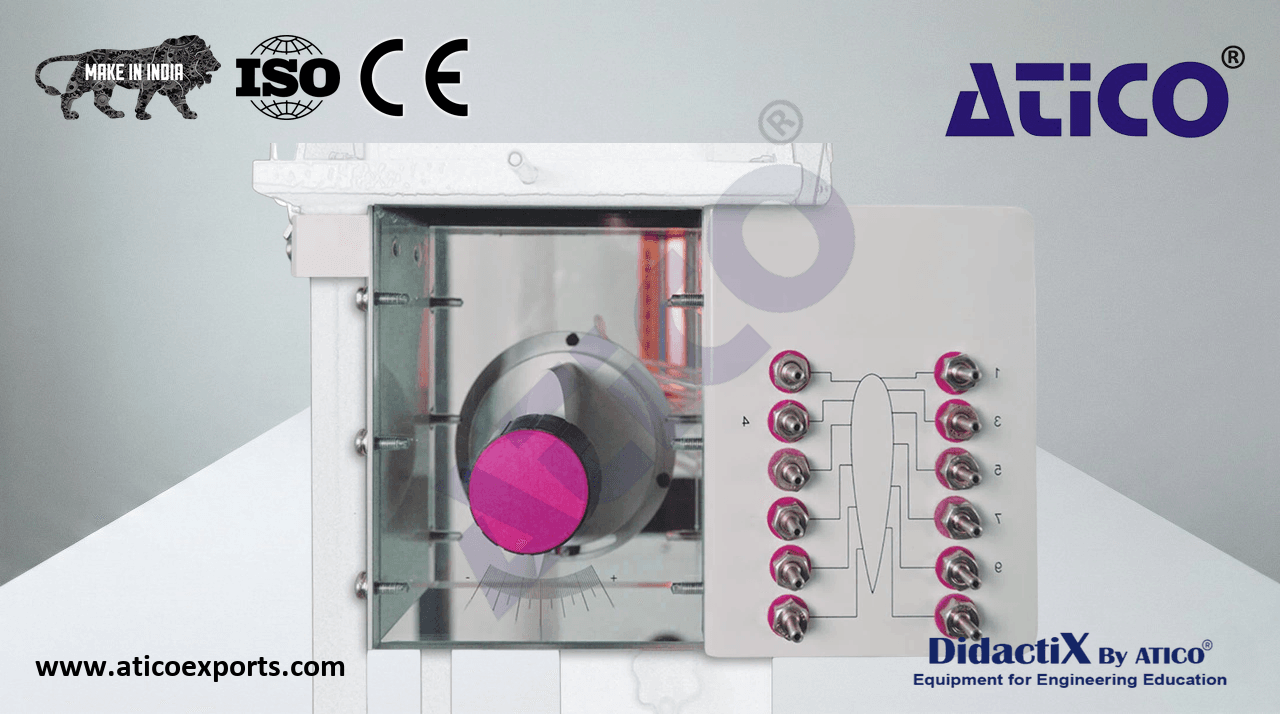

One of a series of eight experiment modules that fit to the Modular Air Flow Bench, this module consists of a duct with transparent front and rear, between which is mounted a symmetrical aerofoil. The aerofoil has 12 tapping points at various chordwise positions on its surface allowing the pressure to be measured at that point. The tapping points are permanently connected to a manifold mounted on the duct showing the tapping position and number for easy reference. Learn about AEROFOIL WITH TAPPINGS equipment for optimal educational outcomes.. The experiment mounts on the Air Flow Bench contraction using toggle clamps. Each one of the tappings connects to the manometer ancillary via flexible tubes fitted with quick-release couplings. Learn about AEROFOIL WITH TAPPINGS exporters for optimal educational outcomes.. The aerofoil may be accurately rotated to various angles of incidence (attack) to the air using the control and printed scale on the front of the duct.
